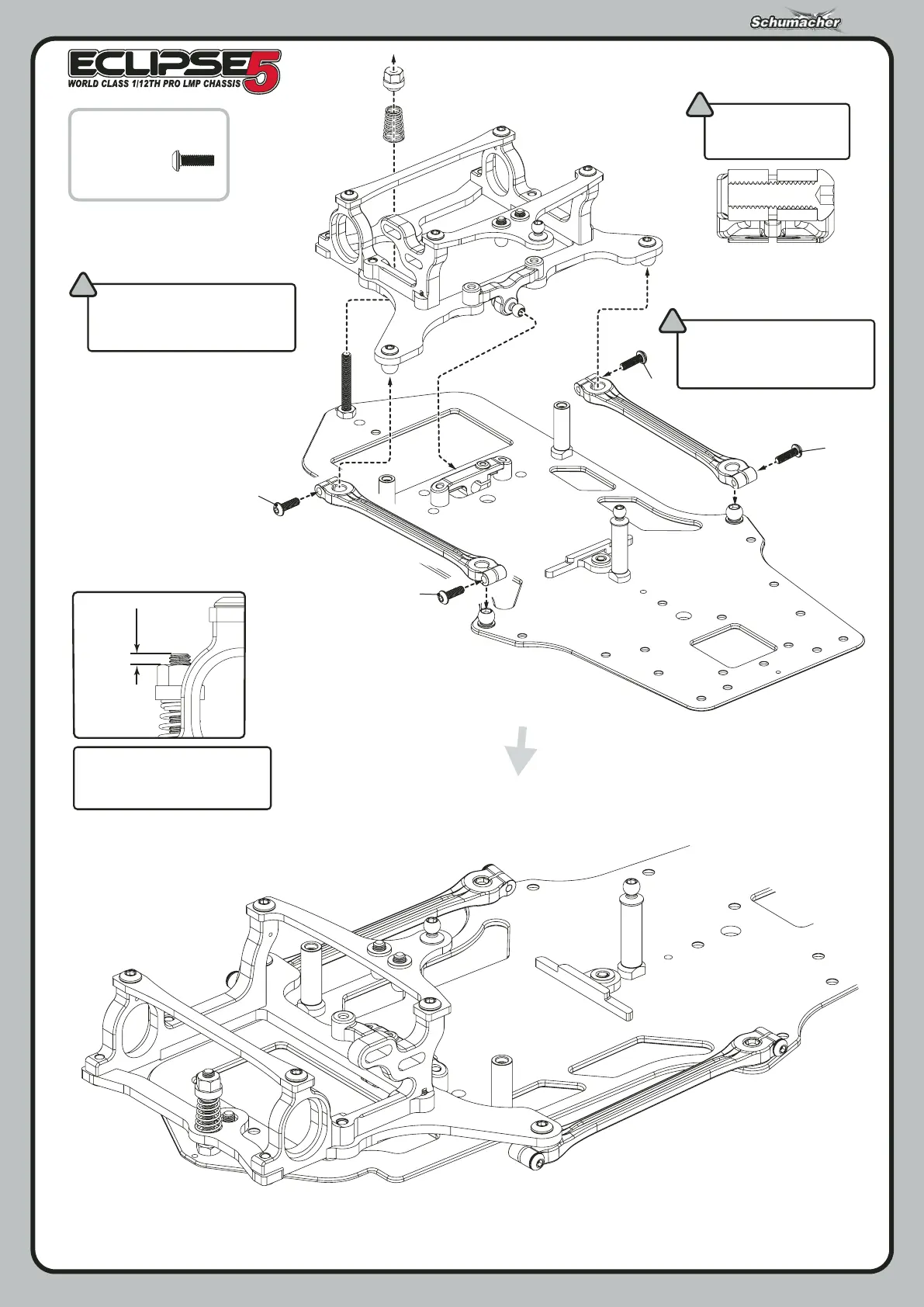

Tighten the 4 screws ‘A’ lightly,
checking the plastic side link
pivots freely. If they won’t pivot
sideways freely, loosen screws ‘A’.
!
To position the pod onto the chassis,
firstly, put the centre ball into the
centre pivot, then lower the rear of
the pod down onto the spring screw.
!
1.5mm
This 1.5mm measurement sets the
pod height at the kit setting.
The pod base should be horizontal
when at ride height.
STEP 4b
A
x4
M2.5 x 8 Button Hd Screw
A
A
A
A
Ensure the counterbore
on the side link is
facing outward.
!
To Next Page
