Description of the options
72
05.00 | ELB | Montage- und Betriebsanleitung | en | GAS 376437
5.3 Option, limit/reference switch
Limit and reference switches are available as options for the
product. These are installed individually by the customer.
The following should be noted here
• The limit switch corresponds to an opener
• The reference switch corresponds to a closer
• Possible attachment places
– Without options (brake load compensation) = two
attachment places
– With brake option = one attachment place
– With load compensation option = no possibility for assembly
• The assembly of the switches can be done either at the guide or
at the motor.

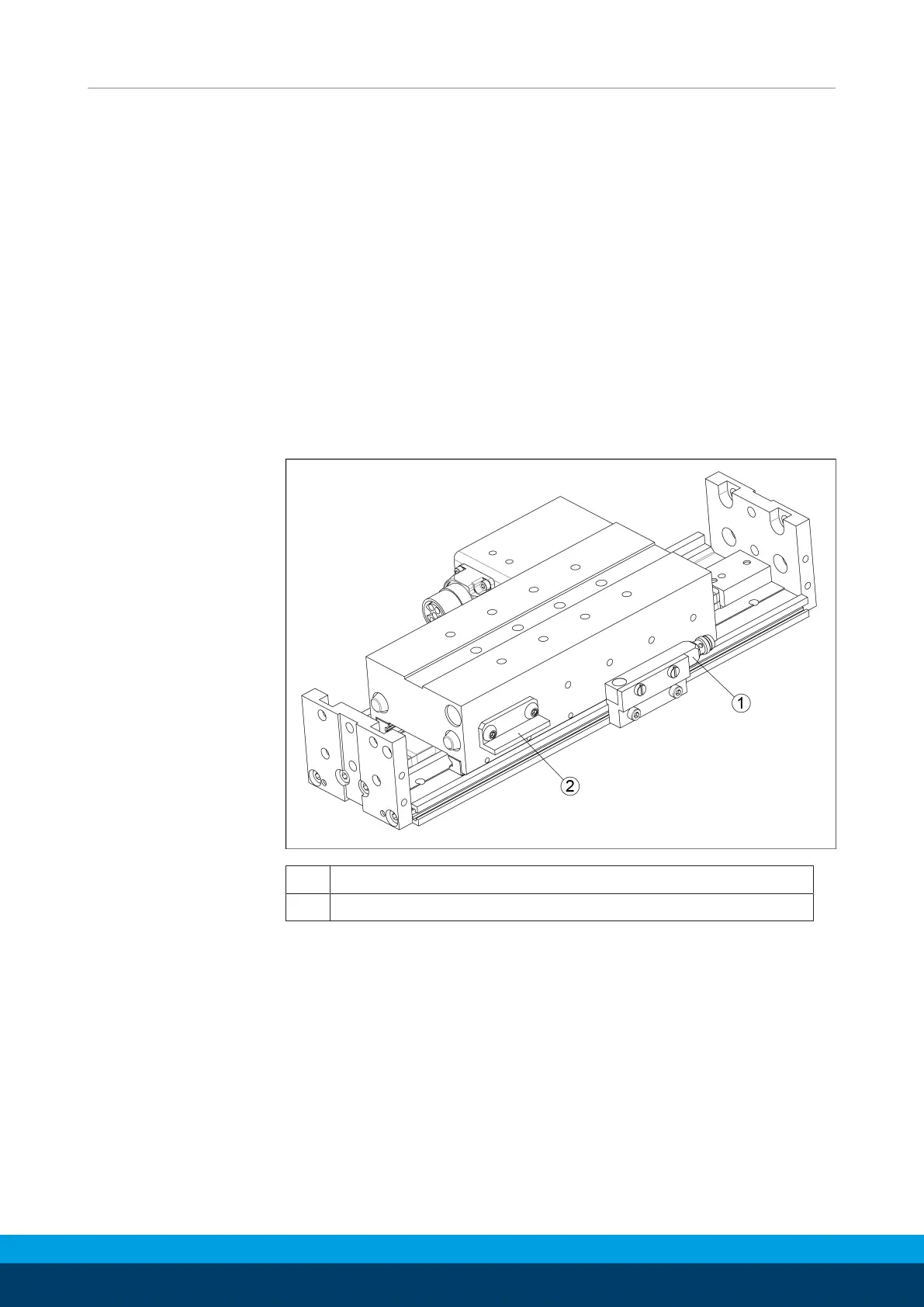

1 Reference switch on guide
2 Switching lug on motor
