SCHUNK ELB Series - Mounting of Accessories; Installing Electric Lowering Lock

Assembly
94
05.00 | ELB | Montage- und Betriebsanleitung | en | GAS 376437
6.2 Mounting of accessories
6.2.1 Installing electric lowering lock

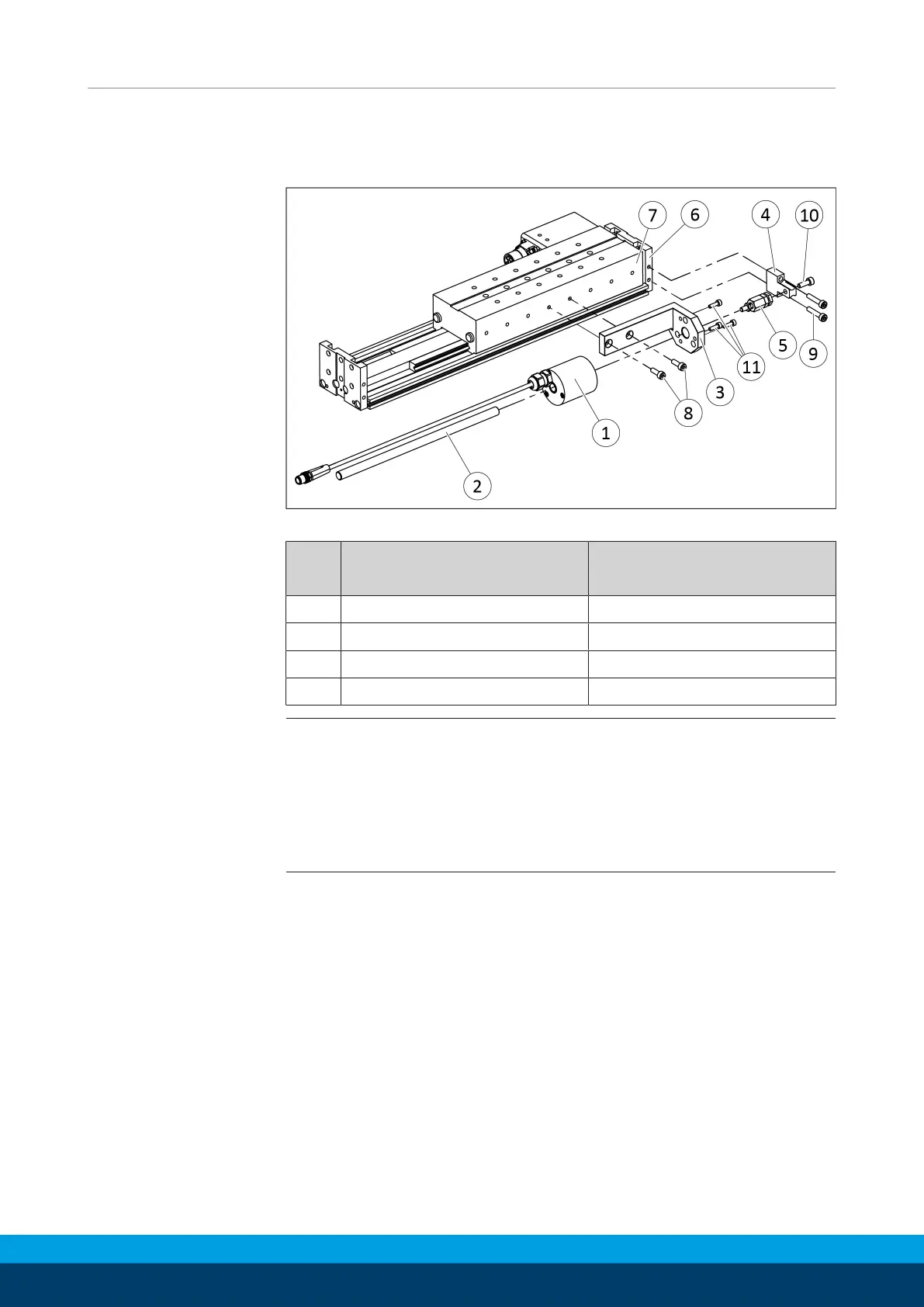

Installing electric lowering lock
Item Screw dimension
DIN EN ISO 4762
Max. tightening torque [Nm]
8 M4 x 12 3.1
9 M4 x 20 3.1
10 M4 x 12 3.1
11 M3 x 10 1.1
NOTE
• For assembly always consult the brake operating manual(1),
which is available for download at schunk.com.
Brake type: electric ROBA linear stop, type 382.0__.0
• Fasten all screws with the enclosed locking washers and tighten
to the required tightening torque.
