Description of the options
05.00 | ELB | Montage- und Betriebsanleitung | en | GAS 376437
75

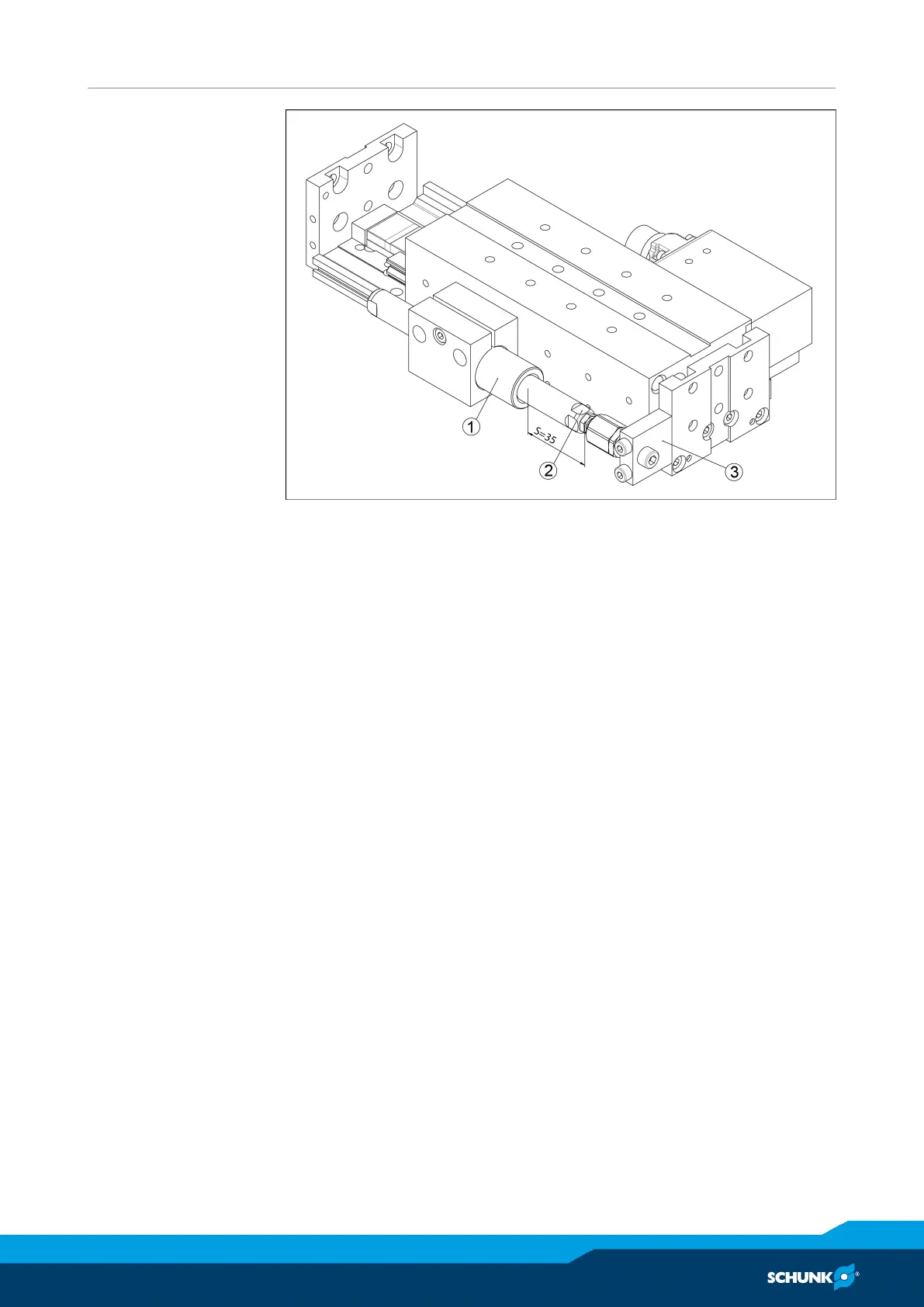

Set-up of the magnetic load compensation
Installation position:
Ø The stator's external thread (1) and the square (2) of the runner
point in the direction of the assembly plate (3).
Ø For the creation of the constant force, dimension s must be 35
mm in the end position during the installation of the load
compensation.
