4. Installation

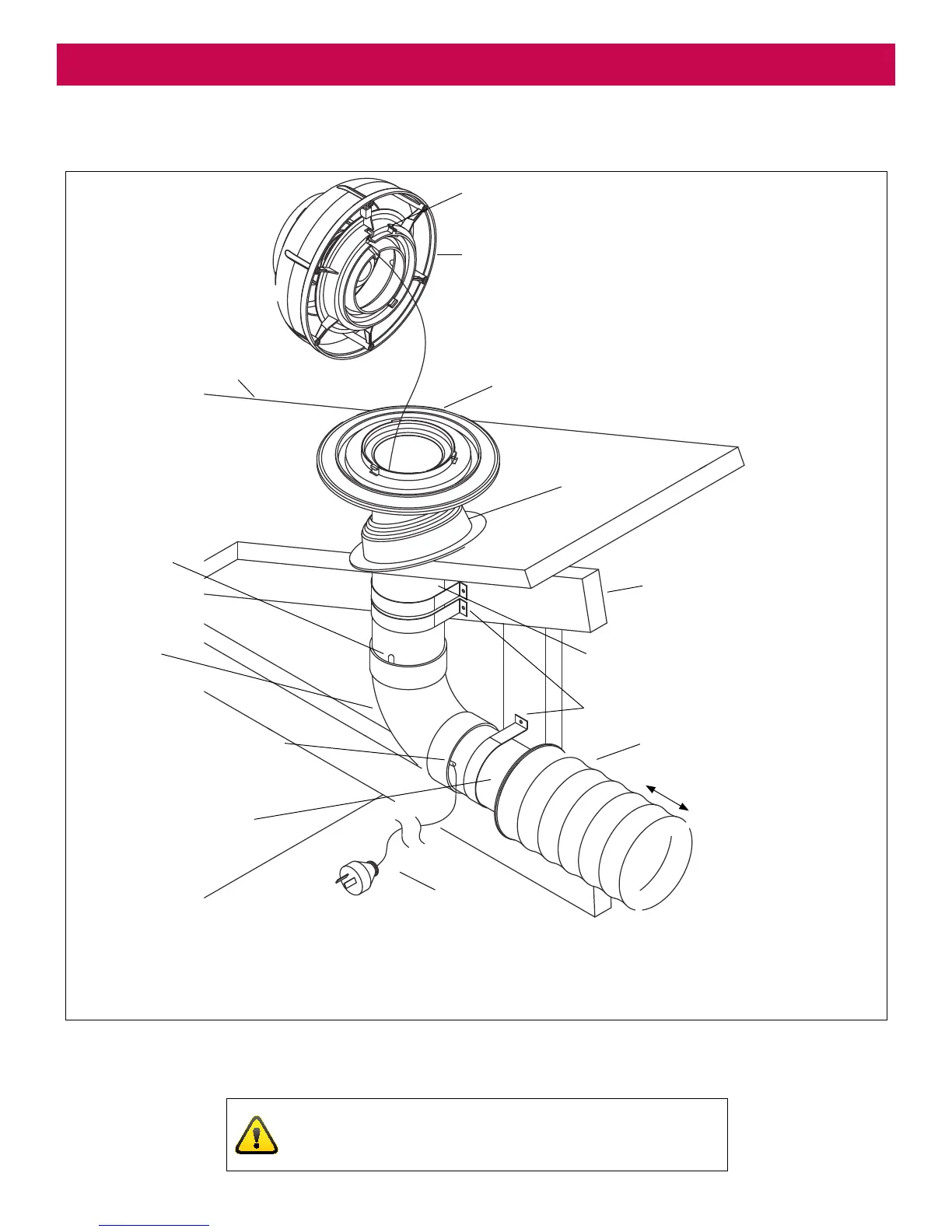

Figure 2
Locking Screw
Fan Module
Roof Clading
Mounting Flange
Dektite
Roof Frame
100mm PVC Pipe
Secure pipe to structure
150mm exible ducting
5 metre max
Connect to
rangehood
Power cord
Bell-mouth adaptor
Slot pipe for power
cord exit. Cover with
ducting tape if required
Optional bend
Slot option
Roof Installation
IMPORANT
For more exible ducting instructions, refer page 19.
NOTE: Ensure that power cord is feed
through exit slot and is not allowed to
double back restricting fan inlet.
