4. Installation
Roof Mount Option
Eaves Mount Option
Wall Mount Option
Mounting Flange
100mm PVC Pipe
Dektite
Connect to
rangehoood
Bell-mouth adaptor
Slot option
20
min
20
min
Bell-mouth adaptor
Min 90mm long PVC pipe
Connect
to rangehood
To fan
Cover
Rangehood
Electrical connection
between rangehood
and remote fan
module
Connect to main power

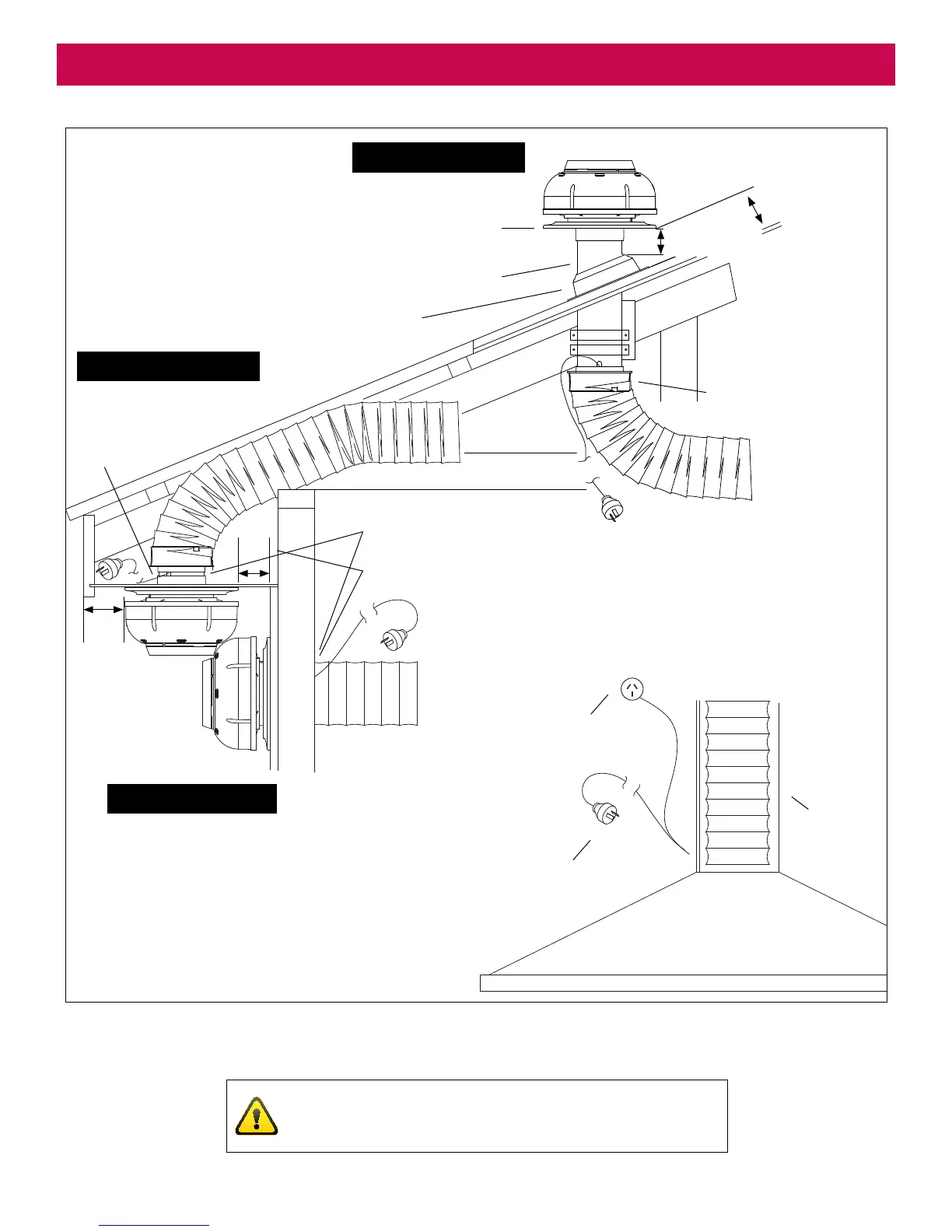

Figure 1 The three options for mounting the unit.
IMPORANT
For more exible ducting instructions, refer page 19.
100 — 400
Ensure
clearance
