6. Installation Examples

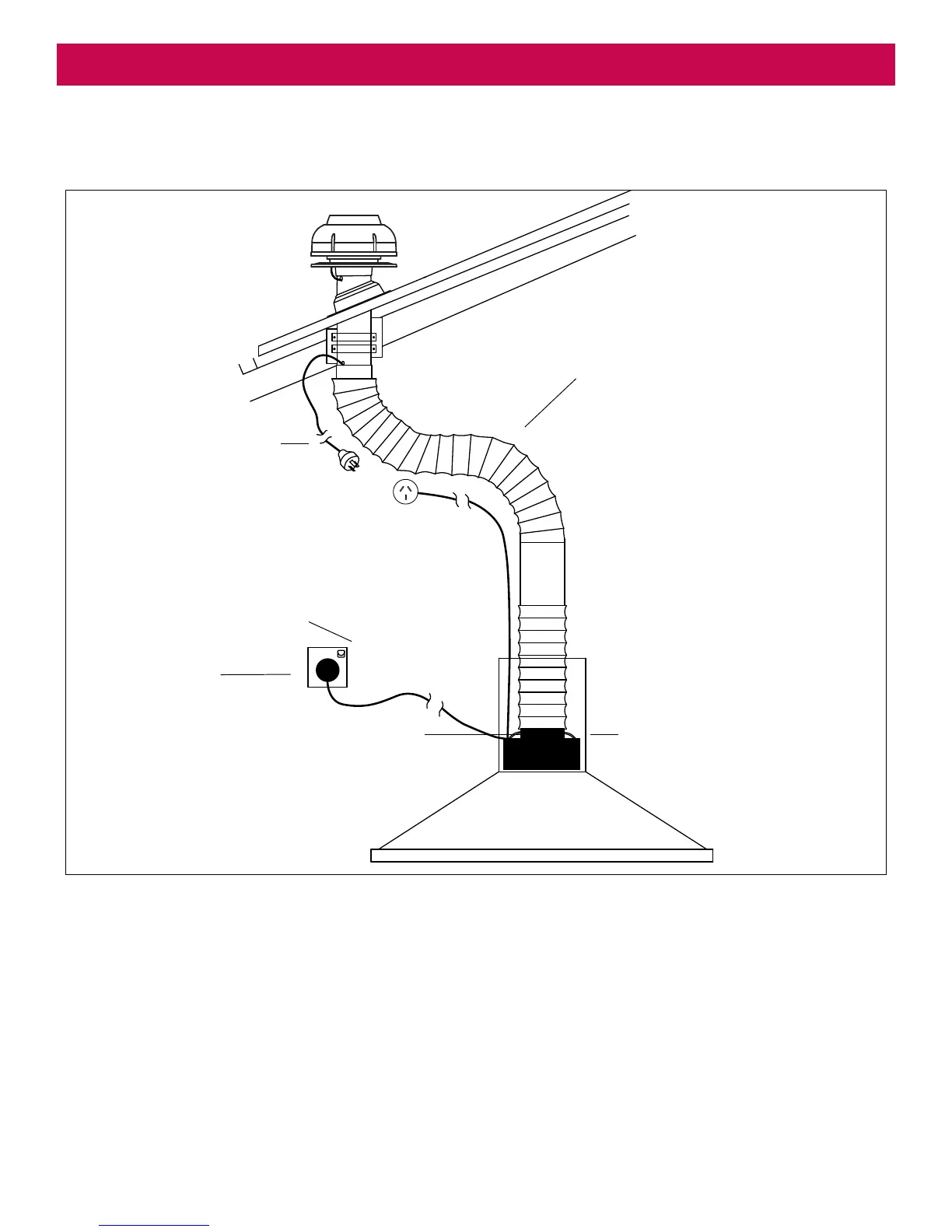

Single Motor Installation Example
Connect to rangehood
Connect to motor
Cover
Connect to
main power
Use reducer 150mm to 200mm
Use smooth owing curves for
maximum airow. Remove
excess ducting by trimming to
length. DO NOT install motor in
straight line to rangehood.
Figure 10
