A-CR-CCP-402/MB-001 SCHWEIZER 2-33 AOIs
2-4

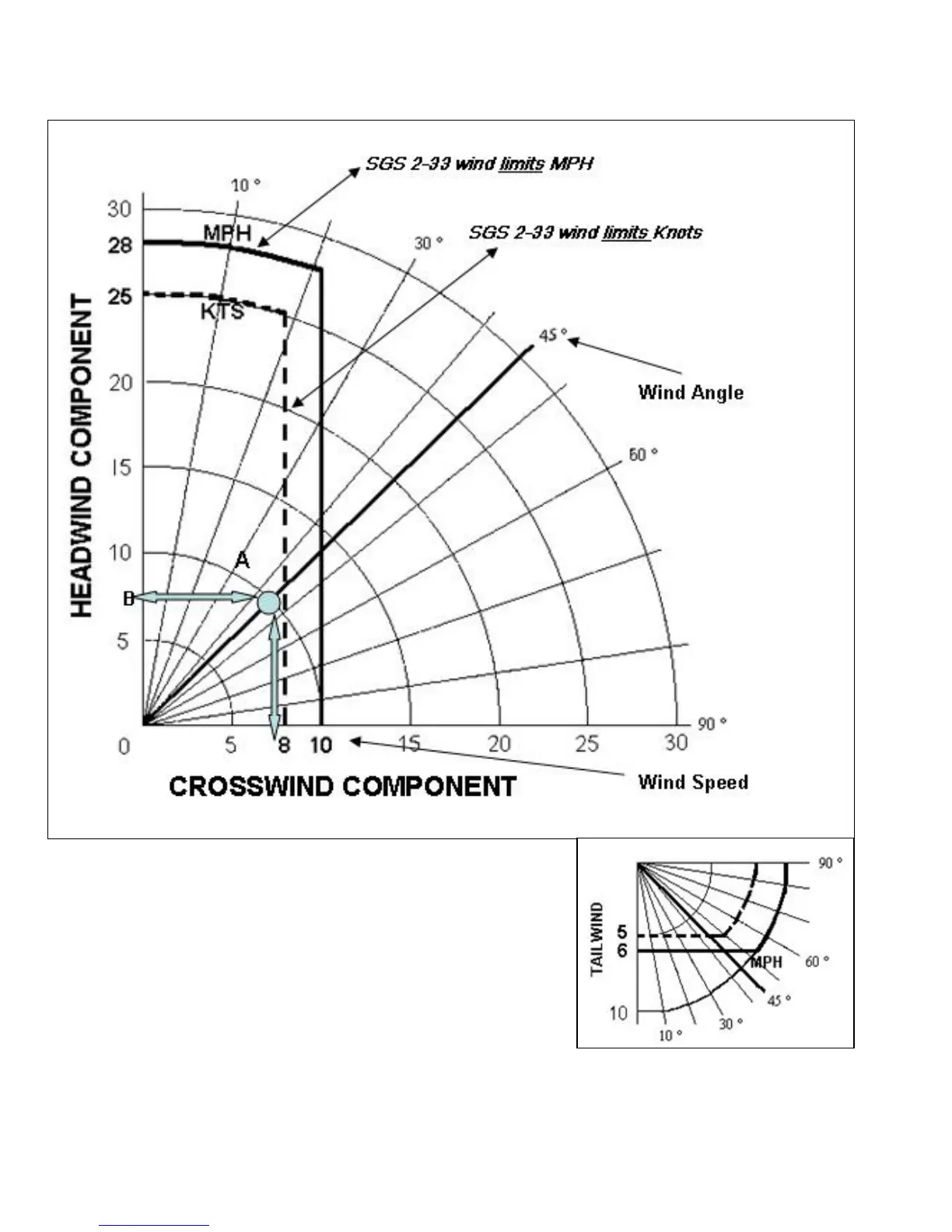

SHOWN EXAMPLE: 10 KT wind 45
0
off runway heading
SOLUTION: Enter wind angle at 45
0
, follow radial inward
to 10 KT wind speed arc. At the intersection of the radial
and the arc, read straight down for the crosswind
component and straight across for the headwind
component.
Could you fly a 2-33 in this example? YES!
Figure 2-5 Crosswind Component Chart
