116
Maintenance
SP 500 / 750-15 / 750-18 / 1000 / 1250 Operation Manual
3. Start the engine, clear the E-stops and increase
the throttle to maximum RPM.
4. Move the agitator handlever into the forward po-
sition (Figure 45). The oil will be forced over the
relief valve.

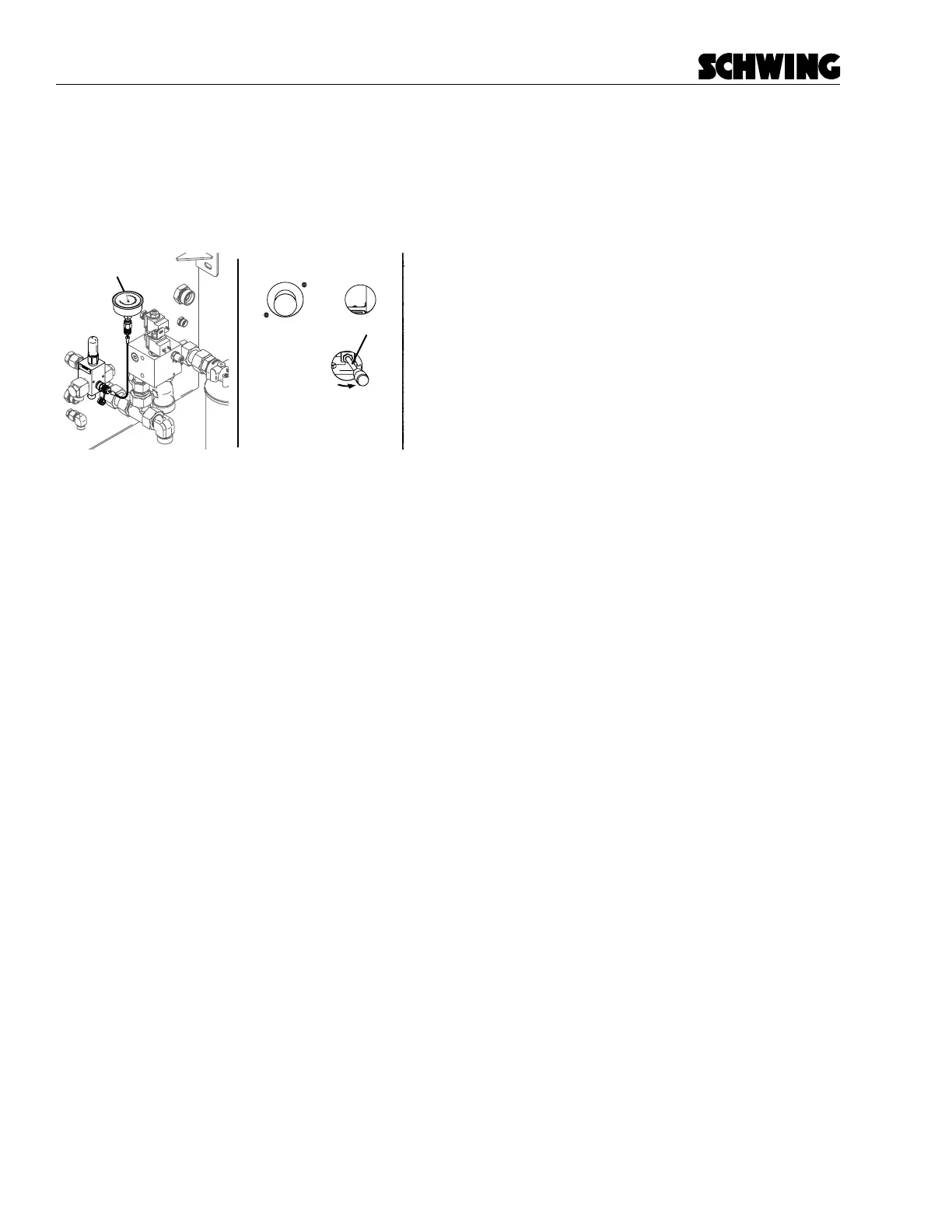

Pressure Gauge
Agitator Handle
Figure 45
Activate the agitator handvalve - forward
5. The gauge should read 200 bar (1812 PSI).
6. To adjust the pressure, loosen the jam nut and
turn the allen head screw in (clockwise) to in-
crease pressure, or out (counterclockwise) to
decrease pressure until 125 bar is showing the
pressure gauge.
7. Return the agitator handle to the neutral position.
1. Stop the engine and follow “Lock Out - Tag Out
procedure” on page 92.
2. Remove the pressure gauge and cap tting from
the agitator circuit.
