Instructions
IMPORTANT!: To ensure ease of assembly please verify the size and
quantity of all the required assembly hardware and parts with the enclosed
parts list and full size hardware chart.
b ken d wn inEach step of the assembly process has been ro o to s o 5 ea y-to-f llow
e.
Assembly Stage #1
Assemble Seat and Handle Bar
Assembly hardware required: (8) M8 Allen Bolts 45 mm long (item #1)
(8) Flat Washers Ø8*Ø19*2T (item #2)
(4) M8 Allen Bolts 16 mm long (item #22)
(4)Flat Washer Ø8* Ø 16*2T(item #7)

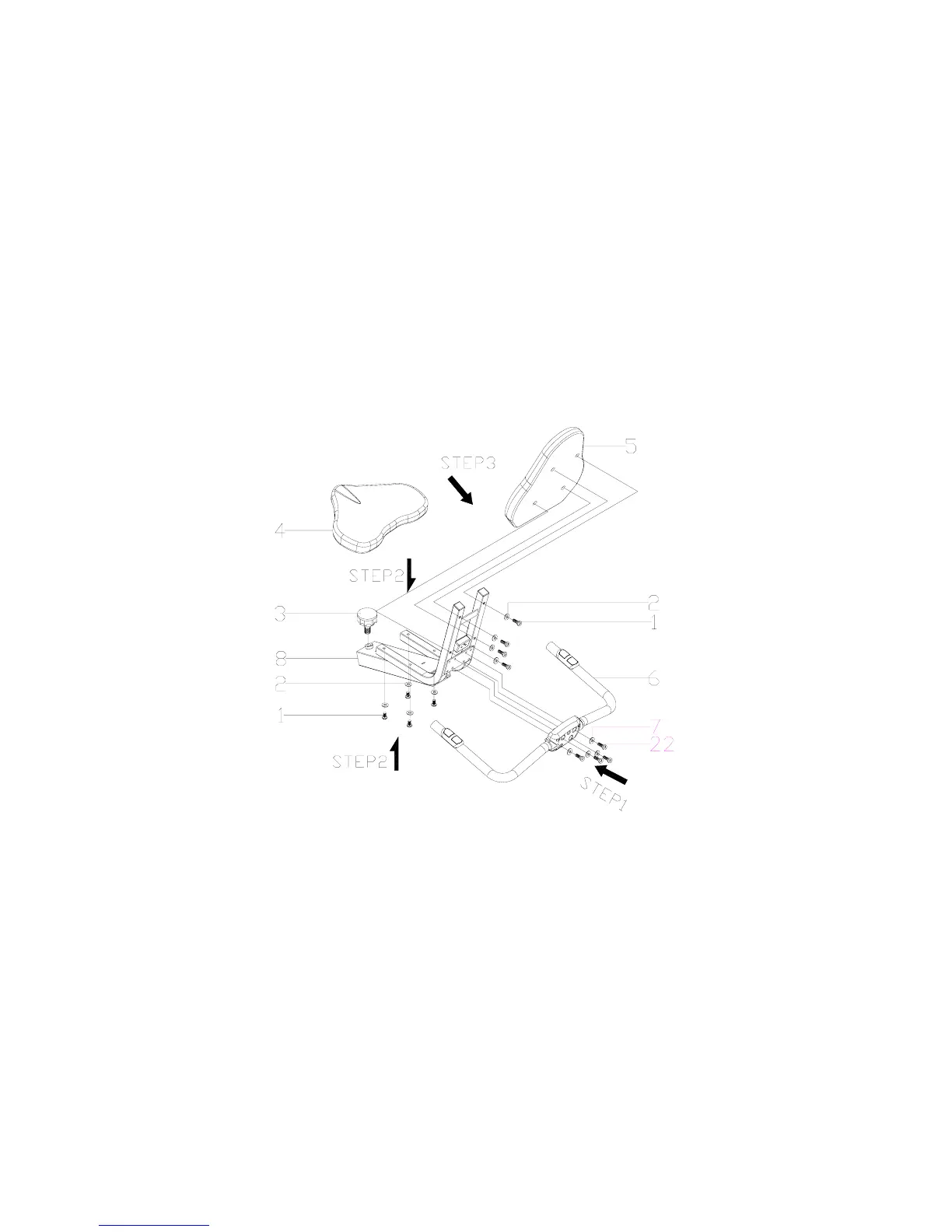

Step 1: Attach HANDLEBAR ASSEMBLY (#6) to SEAT FRAME (#8) with the 4
ALLEN BOLTS (#22) and 4 FLAT WASHERS (#7). Tighten bolts with the
provided Allen wrench.
Step 2: Attach SEAT (#4) to SEAT FRAME (#8) with 4 ALLEN BOLTS (#1) and 4
WASHERS (#2). Tighten Bolts.
stages. Please take just a few moments to read over these instructions to
familiarize yourself with the process to make assembly quick and trouble-fre
To Next Page
