Schwinn a10 - Attach Media Tray to Console and Install Console on Console Mast

11
8
#2
8a
7. Install Water Bottle Holder
Note: The hardware is pre-installed on the Console Mast and not on the hardware card.
12
X2
6mm

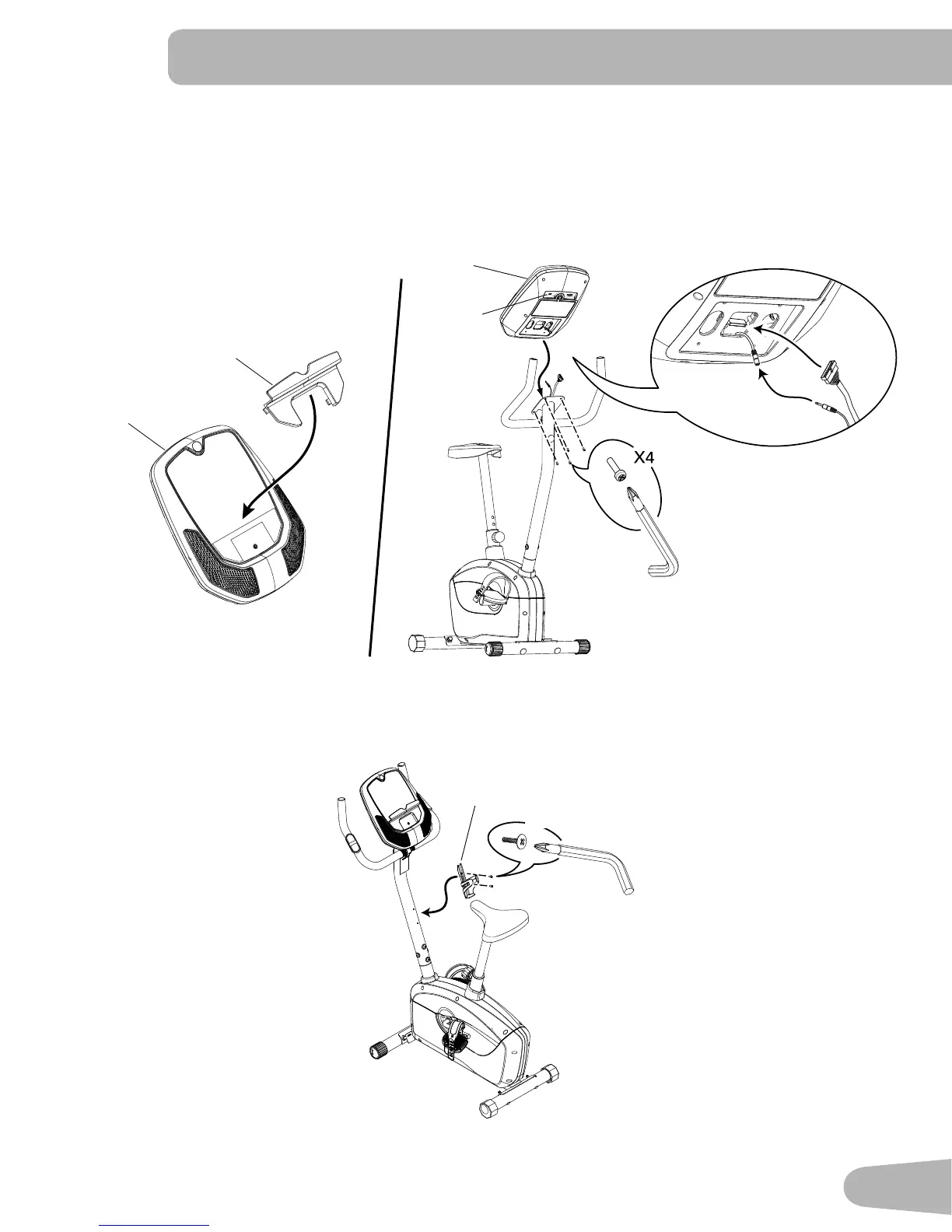

6. Attach Media Tray to Console and Install Console on Console Mast
Note: Before you attach the Media Tray, remove the protective plastic film from the front of the console. Be sure the
tabs on the Media Tray snap into the Console.
Remove the pre-installed screws from the back of the Console before you connect the cables.
NOTICE: Donotcrimpthecables.Makesurethattheswitch(8a)onthebackoftheConsoleissettoB (bike).
8
13
