Schwinn a15 - Assembly and Setup Guide; Step-by-Step Assembly Instructions

8

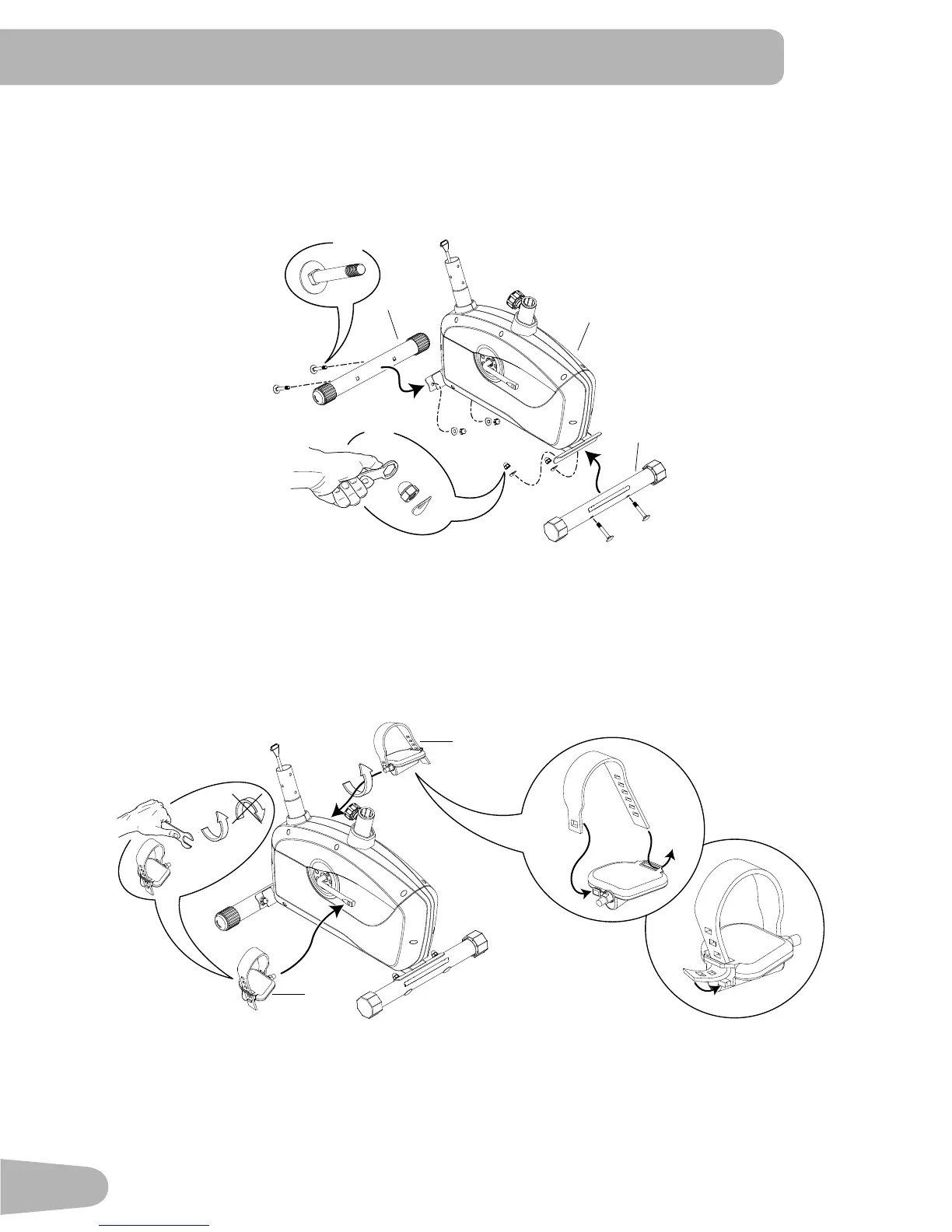

1. Attach Stabilizers to Main Frame
Note: Make sure the Schwinn
®
decal on the Rear Stabilizer faces outward from the machine.
2. Install Pedals
Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is
based from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”.
ASSEMBLY
X4
A
2
1
3
C
B
X4
10 (L)
11 (R)
