9

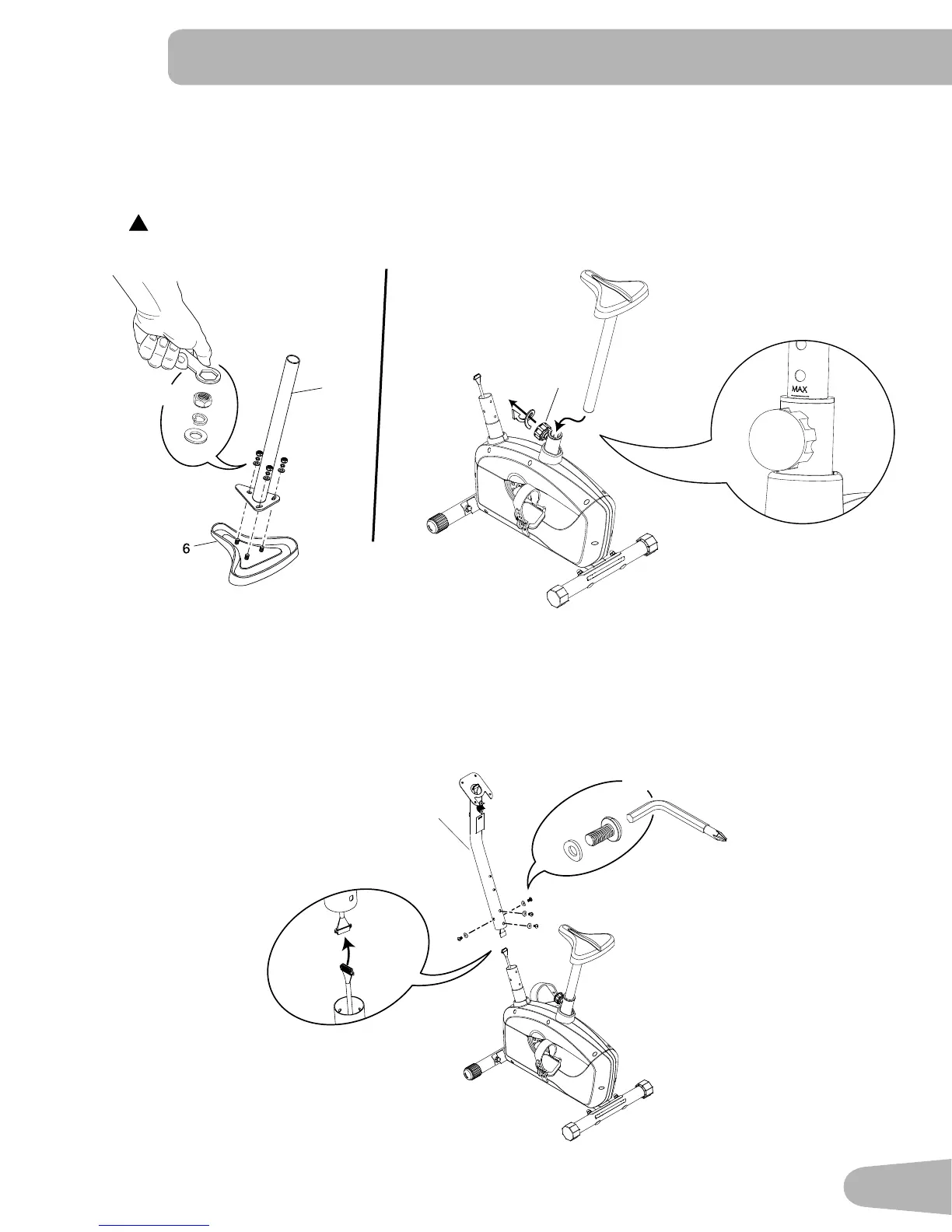

3. Attach Seat to Seat Post and Frame
Note: Hardware is pre-installed on Seat and not on Hardware Card.
NOTICE: TheAdjustmentKnobispre-installedontheMainFrame.MakesuretheAdjustmentKnobengagestheSeat
Post.
!
DonotsettheSeatPostpositionhigherthanthestopmark(MAX)onthetube.
5
4
X3
4. Install Console Mast on Main Assembly
NOTICE:Aligntheclipsonthecableconnectorsandmakesuretheconnectorslock.DonotcrimpConsoleCable.
X4
B
D
6mm
7
