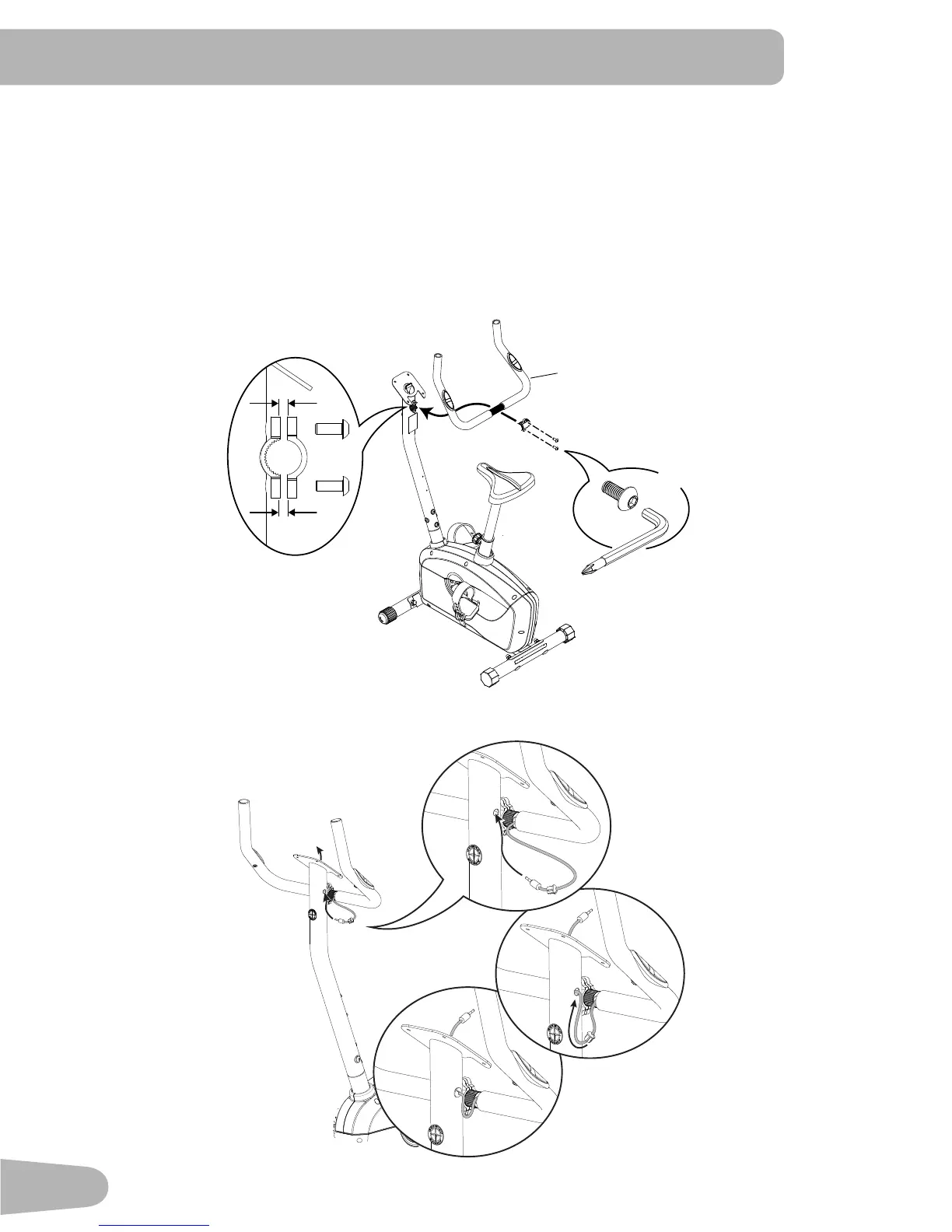

5. Install Handlebars on Console Mast
Note: Hardware is pre-installed on Console Mast and not on Hardware Card.
NOTICE: Make sure the Handlebar Bracket has an equal distance between the two ends of the bracket and the
bracket mount on the Console Mast.
Donotcrimpthecables.RoutetheHRcablethroughthesideholeinthemasttothetopofthemast.Push
the grommet on the cable into the hole to keep the HR cable in position.
X2
6mm
