10

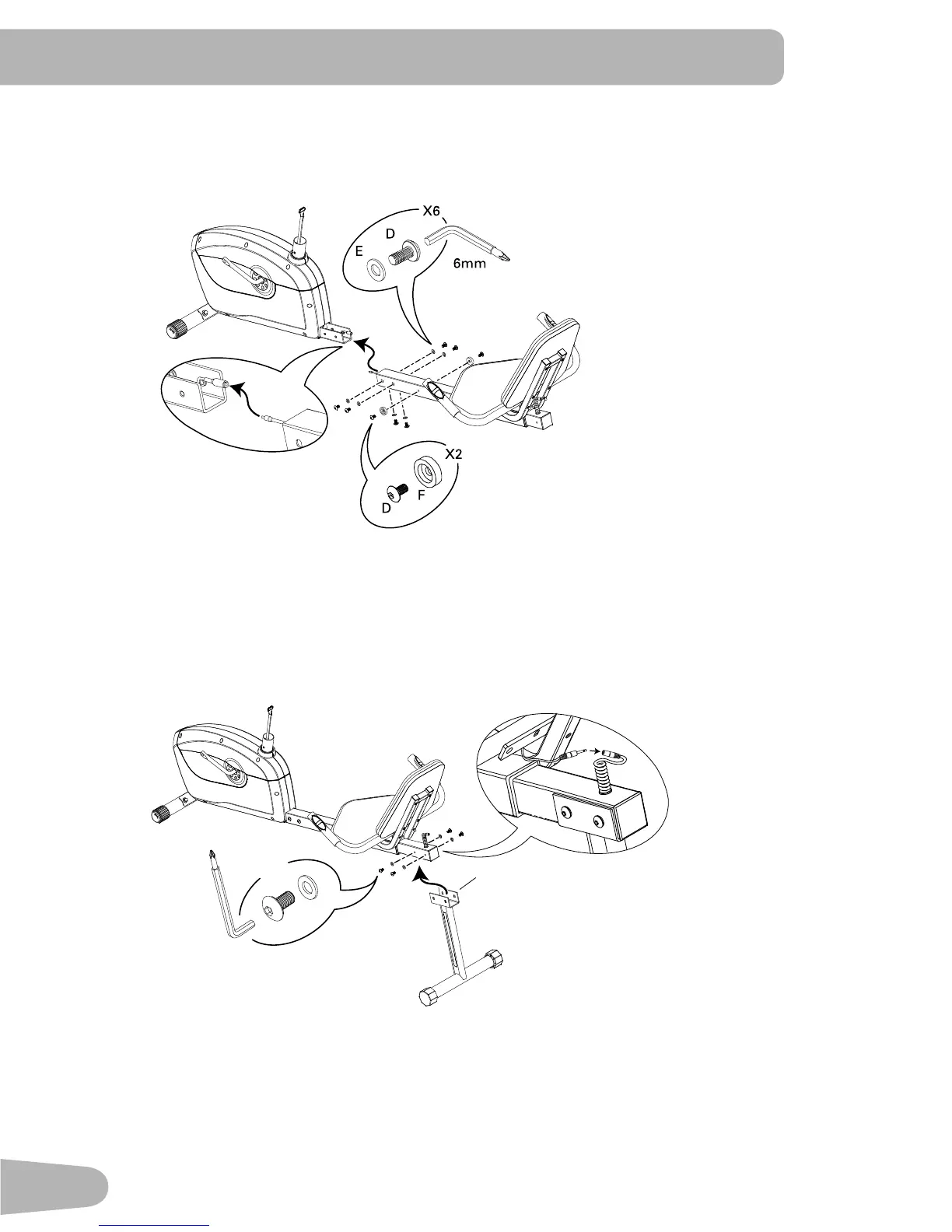

5. Install Seat Rail Assembly to Main Assembly
NOTICE:ConnectHeartRate(HR)cablesfromSeatRailandMainUnit.Donotcrimpcables.
6. Attach Rear Stabilizer to Seat Rail
NOTICE:ConnectHeartRate(HR)cablesfromSeatRailandHandlebar.Donotcrimpcables.
X4
E
D
6mm
3
