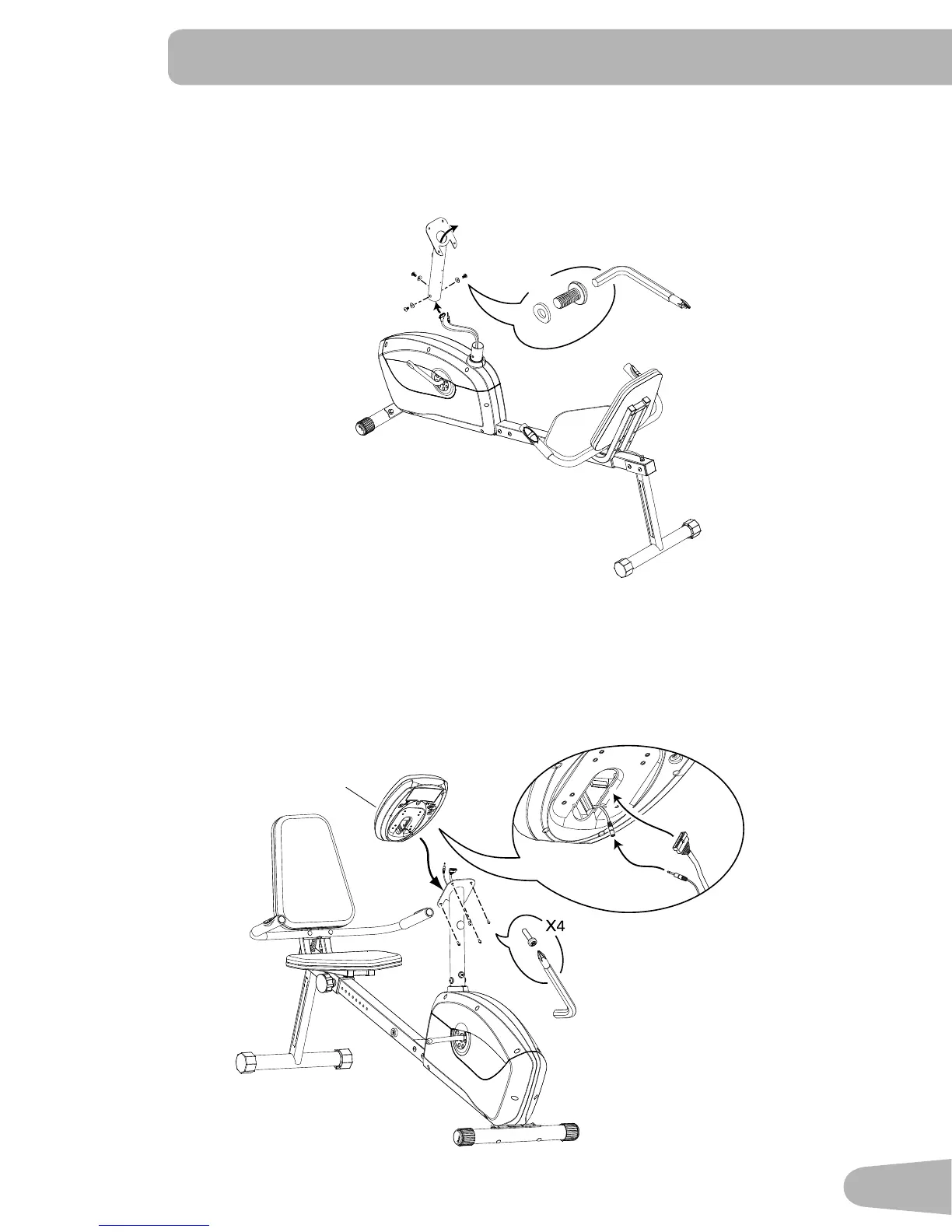

7. Install Console Mast to Main Assembly
Note: You can attach a wire (or string) to the Console Cable and HR Cable to help pull the cables through the
Console Mast.
NOTICE:Donotcrimpcables.
X3
B
D
6mm
8. Install the Console to the Console Mast
Note: Hardware is pre-installed on Console and not on Hardware Card. Remove hardware from Console before you
connect the cables.
NOTICE: Donotcrimpcables.MakesurethattheswitchonthebackoftheConsoleisset to B (bike).
10
#2
