Scosche FCJ2076 - Page 10

Read pages 2-4
for kit assembly.
Read pages 2-4
for kit assembly.
Read pages 2-4
for kit assembly.
1989-94 Chrysler Le Baron Landau
Read pages 2-4
RADIO REMOVAL:
for kit assembly.
1. Starting from the bottom, gently pry outward on the radio trim bezel
to release the two spring clips on the bottom and three across the top.
2. Unplug the lamp harness from the back of the trim bezel and remove.
3. Extract two screws above radio, one at the lower right corner behind glove box door, and one
screw at the lower right hand corner below steering column.
4. Remove the trim panel around the radio itself.
5. Extract two hex head screws holding radio in place, unplug all connectors & unbolt ground strap.
6. Remove radio.

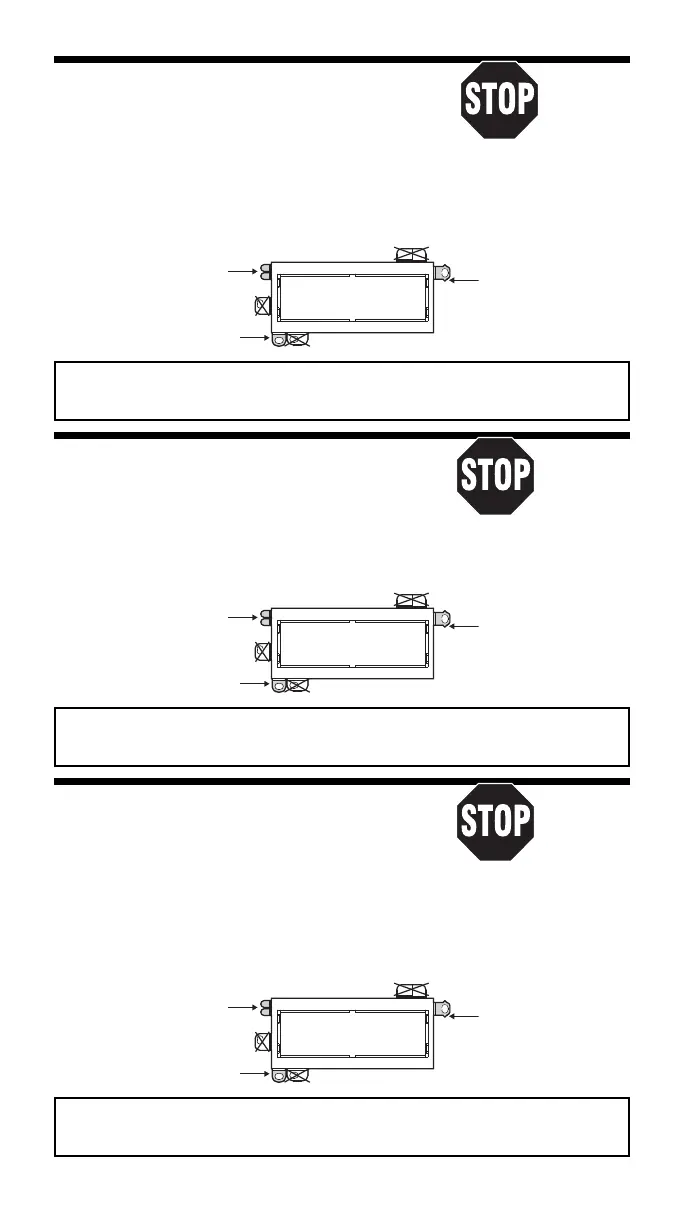

#2190 PANEL
REMOVE ALIGNMENT
TABS AS REQUIRED
USE THESE SUPPORT
PIN - BOTTOM
Sacar la clavija de
pestañas como sea
Usar tantas de estas
alineamiento - Inferior
necesario
USE THIS BRACKET
Usar este braquete
1994-97 Chrysler LHS
Read pages 2-4
1994-96 Chrysler New Yorker
for kit assembly.
RADIO REMOVAL:
1. Remove the ashtray from the dash.
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS
AND DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
2. Carefully pry out on the perimeter radio dash bezel using a panel
removal tool to release the fastening clips and remove the radio dash bezel.
3. Extract the two screws securing the radio to the dash, pull the radio from the dash cavity,
unplug all connectors and remove the radio.
#2190 PANEL
REMOVE ALIGNMENT
TABS AS REQUIRED
USE THESE SUPPORT
PIN - BOTTOM
Sacar la clavija de
pestañas como sea
Usar tantas de estas
alineamiento - Inferior
necesario
USE THIS BRACKET
Usar este braquete
1975-78 Chrysler Newport, New Yorker
Read pages 2-4
1975-79
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS AND
DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
Dodge Royal Monaco
for kit assembly.
1975-77 Plymouth Gran Fury
RADIO REMOVAL:
1. Remove three screws from the bottom edge of the dash panel.
2. Remove the ashtray and remove one screw retaining the dash panel.
3. Disconnect the cigarette lighter and wiper wires.
4. Pull the dash panel out from the top. Place the gear selector in low gear & remove the dash panel.
5. Release the radio rear support. Remove two screws securing the radio to the dash. Pull the
radio out.
6. Disconnect the power, antenna, and all speaker and electrical connections.
#2190 PANEL
REMOVE ALIGNMENT
TABS AS REQUIRED
USE THESE SUPPORT
PIN - BOTTOM
Sacar la clavija de
pestañas como sea
Usar tantas de estas
alineamiento - Inferior
necesario
USE THIS BRACKET
Usar este braquete
USE THE SHADED MOUNTING TABS AND THE INDICATED BRACKETS. CUT OFF THE REMAINING TABS AND
DISCARD. FOR DIN ISO INSTALLATION, SEE PAGE 4.
Usar las pestañas sombreadas y los braquetes indicados. Cortar las pestañas restantes y descartarlas.
Para la instalación de radios DIN ISO ver la página 4.
10
