Scosche FD5000SW - Wiring Codes and Connections

9

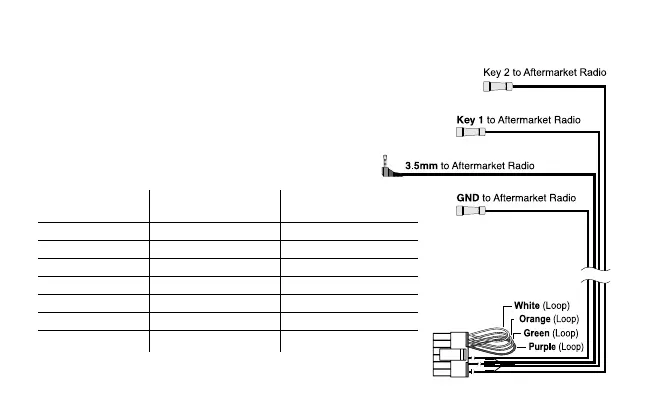

STEERING WHEEL WIRING CODES
STEREO BRAND
ALPINE
CLARION
JVC
KENWOOD
PANASONIC
SONY
PIONEER
OTHER BRANDS
CONFIGURATION*
Cut Green loop
CutVioletloop
CutGreen&Violetloop
Cut Orange & Green
Cut Orange
Cut White
No cut required
Call Tech Support
STEREO CONNECTION
3.5mm
3.5mm
3.5mmorBrown(Key1)
Brown(Key1)
Brown(Key1)
3.5mm
3.5mm
Brown,Gray,Black
1.PrepareFD5000SW steering wheel connector by using the chart below.
2. Connect the harness to the interface module.
3. ForAlpine,Clarion,JVC,Panasonicandcarstereos,connectthe3.5mm
 malesteeringplugintothesteeringwheelinputjackattheback
of the stereo.
4.ForKenwoodandnewerJVCstereos,connecttheBROWN
wire from the steering wheel harness to the REMOTE IN
wire at the back of the stereo.
*NOTE: Cut wire ONLY. DO NOT remove!
