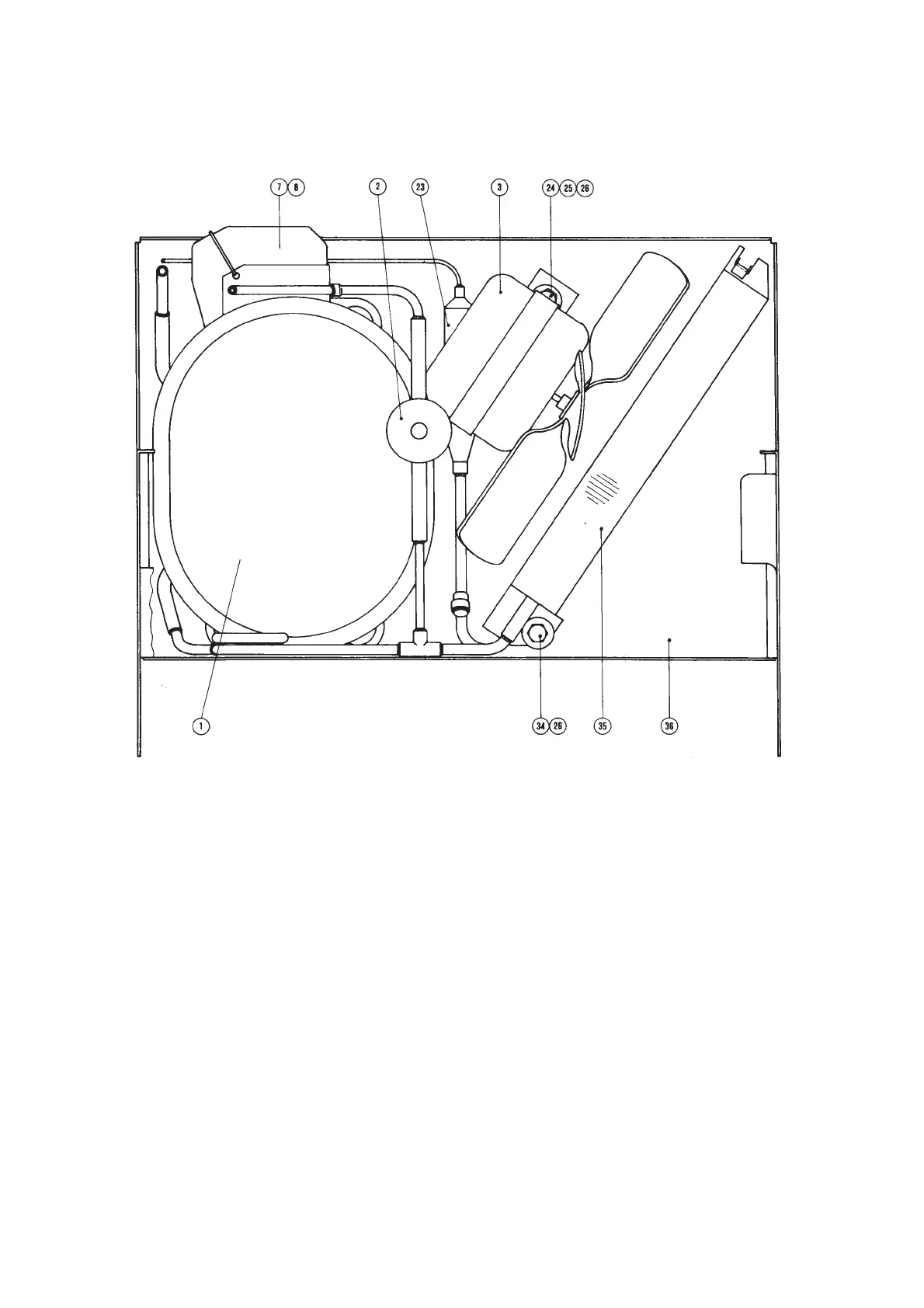

COMPARTIMENTO COMPRESSORE
Pos. Codice Descrizione
1 670097.08 Compressore cpl. Electrolux
670066.09 Compressore cpl. U.H.
2 620306.48 Bobina valvola gas caldo
620306.14 Corpo valvola gas caldo
3 620419.00 Motore ventilatore
7 620058.65 Protettore Electrolux
620058.64 Protettore U.H.
Pagina 35
Pos. Codice Descrizione
8 620057.35 Relè Electrolux
620057.32 Relè U.H.
23 630003.05 Deumidificatore
35 620285.00 Condensatore
36 781283.00 Ass. telaio
