Scotsman C0322 - C0322 and C0522 Cabinet Layout

C0322 through C1030 E Series
Air and Water Cooled User Manual
October 2014
Page 5

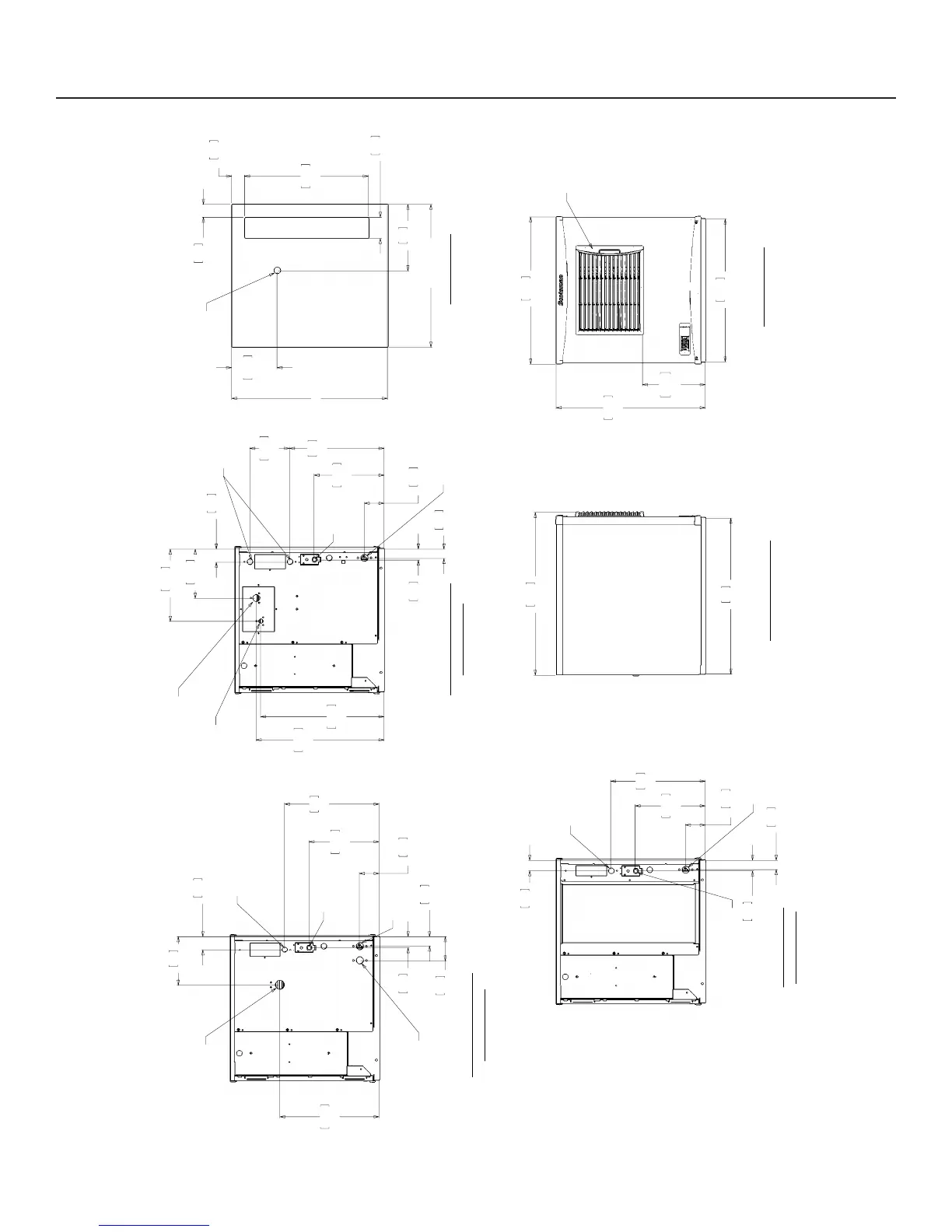

C0322 and C0522 Cabinet Layout
24.00
REF.
22.00
REF.
2.00
5.1
2.00
5.1
19.05
48.4
3.25
8.3
10.25
26
7.00 17.8
ICE DROP OPENING
ULTRASONIC BIN LEVEL SENSOR (OPTIONAL)
22.00
55.9
23.00
58.4
22.67
57.6
24.5 9.65
LOUVER AND REMOVABLE FILTER AC UNITS ONLY
1.43
3.6
3.73
9.5
2.02
5.1
7.47
19
1.68
4.3
3.03
7.7
10.78
27.4
14.55
37
15.28
38.8
3/4" FPT DRAIN
3/8" FPT WATER INLET
.88" DIA ELECTRICAL ACCESS
3/8" FPT
CONDENSER WATER INLET
1/2" FPT
CONDENSER
DRAIN
1.43
3.6
3.04
7.7
10.79
27.4
14.56
37
6.11 15.5
1.69
4.3
2.02
5.1
7.58 19.2
11.12
28.2
19.00
48.3
19.71
50.1
.88" DIA ELECTRICAL ACCESS (2)
3/4" FPT DRAIN
REMOTE CONDENSER LIQUID LINE 3/8 MALE CPLG.
REMOTE CONDENSER DISCHARGE LINE 1/2 MALE CPLG.
3/8" FPT WATER INLET
24.00
61
25.09
63.7
1.43
3.6
1.62
4.1
3.04
7.7
10.79
27.4
14.56
37
1.60
4.1
3/8" FPT WATER INLET
3/4" FPT DRAIN
.88" DIA ELECTRICAL ACCESS
AIR COOLED
BACK VIEW
LEFT SIDE VIEW
FRONT VIEW
WATER COOLED
BACK VIEW
REMOTE COOLED
BACK VIEW
PLAN VIEW
