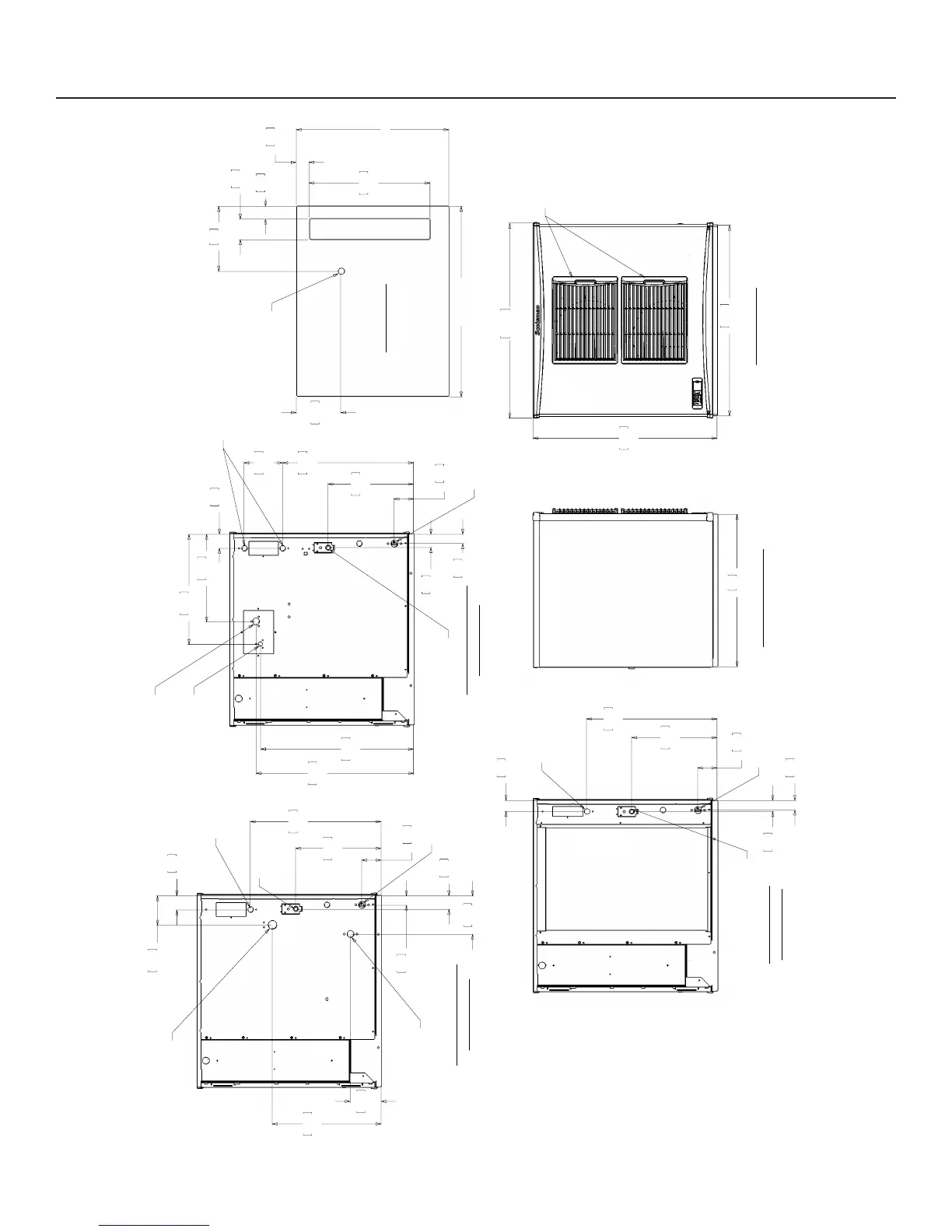

Scotsman C0322 - C0830 and C1030 Cabinet Layout

C0322 through C1030 E Series
Air and Water Cooled User Manual
October 2014
Page 8
C0830 and C1030 Cabinet Layout
24.00
REF.
30.00
REF.
2.00
5.1
2.00
5.1
19.05
48.4
3.25
8.3
10.25
26
7.00 17.8
ICE DROP OPENING
ULTRASONIC BIN LEVEL SENSOR (OPTIONAL)
30.00
76.2
29.00
73.7
77.99 30.70
LOUVERS AND REMOVABLE FILTERS AC UNITS ONLY
24.00
61
1.48
3.7
1.73
4.4
1.70
4.3
3.06
7.8
13.44
34.1
20.56
52.2
3/8" FPT WATER INLET
3/4" FPT DRAIN
.88" DIA ELECTRICAL ACCESS
4.87 12.4
2.12
5.4
1.48
3.7
6.07 15.4
3.07
7.8
13.47
34.2
20.59
52.3
17.14
43.5
2.22
5.6
4.62 11.7
3/8" FPT WATER INLET
3/4" FPT DRAIN
.88" DIA ELECTRICAL ACCESS
3/8" FPT
CONDENSER WATER INLET
1/2" FPT CONDENSER DRAIN
24.06
61.1
24.76
62.9
17.35
44.1
13.81
35.1
2.20
5.6
3.07
7.8
13.47
34.2
6.11 15.5
20.59
52.3
1.48
3.8
2.10
5.3
3/8" FPT WATER INLET
3/4" FPT DRAIN
REMOTE CONDENSER LIQUID LINE 3/8 MALE CPLG. REMOTE CONDENSER DISCHARGE LINE 1/2 MALE CPLG.
.88" DIA ELECTRICAL ACCESS (2)
AIR COOLED
BACK VIEW
LEFT SIDE VIEW
FRONT VIEW
WATER COOLED
BACK VIEW
REMOTE COOLED
BACK VIEW
PLAN VIEW
