CME1056
January 2003
Page 3

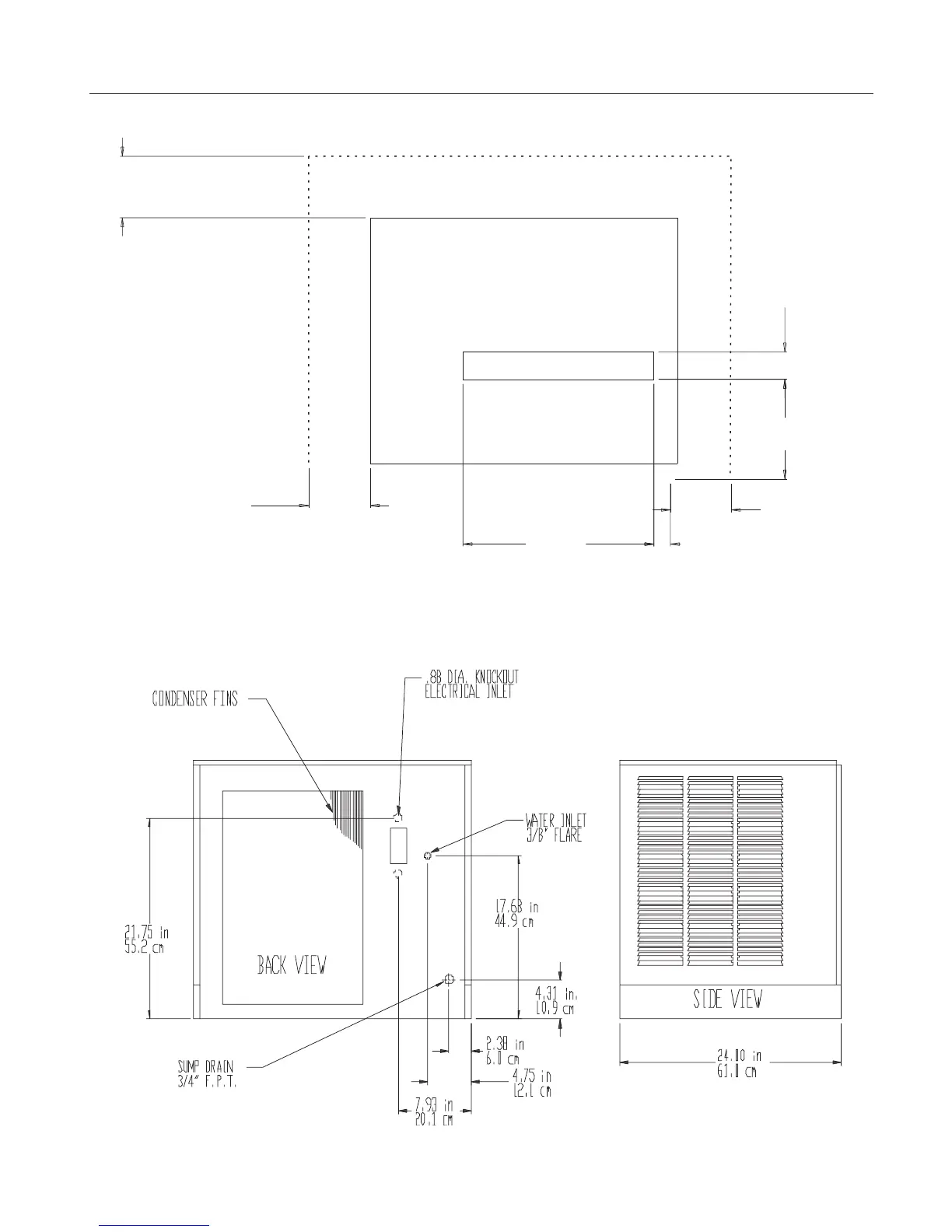

Air Cooled Layout
MINIMUM FOR
AIR VENTILATION
6.00 in
15.2 cm
ICE
OPENING
18.70 in
47.5 cm
1.63 in
4.1 cm
2.70 in
6.9 cm
9.85 in
25.0 cm
PLAN VIEW
6.00 in
15.2 cm
6.00 in
15.2 cm
ICE
MINIMUM FOR
AIR VENTILATION
MINIMUM FOR
UTILITY CONNECTIONS
OPENING
