Top Machine:
13. Route the wire to the controller. Connect to
terminal 7.
Bottom Machine

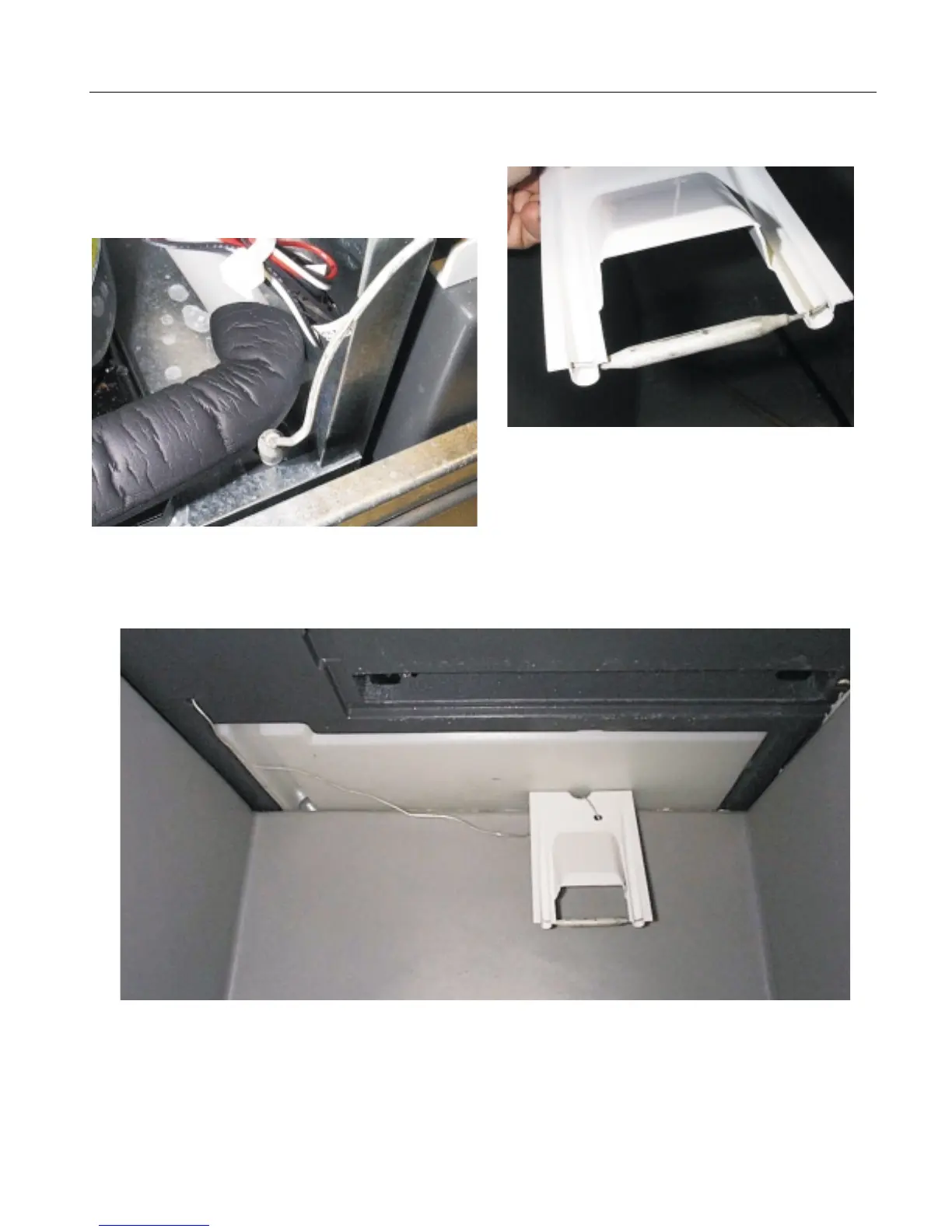

14. Route the bulb of the thermostat thru the base
of the unit into the bin.
15. Mount the bulb of the thermostat to the bracket
from the kit.
16. Install the bin thermostat bracket onto the
bottom of the machine.
17. Pull back excess cap tube and coil up in the
machine.
18. Connect wires from harness to thermostat
terminals.
Both Machines:
19. Return all panels and covers to their normal
positions.
20. Complete the balance of the installation.
CME1056
March 1999
Page 9
