Scotsman CME1056 - Water Cooled Layout and Requirements

CME1056
May 2000
Page 4

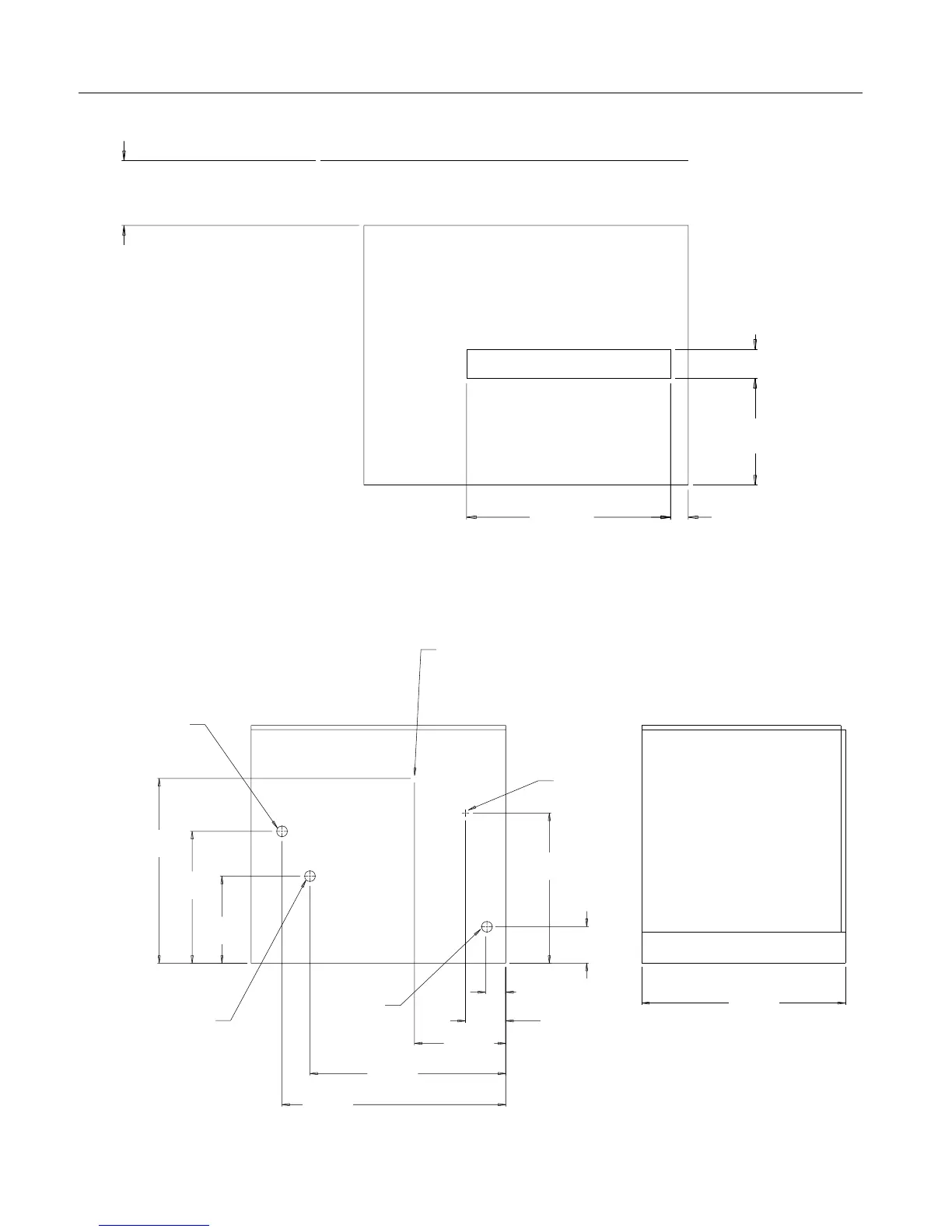

Water Cooled Layout
9.85 in
25.0 cm
MINIMUM FOR
UTILITY CONNECTIONS
ICE
OPENING
ICE
OPENING
1.63 in
4.1 cm
18.70 in
47.5 cm
6.00 in
15.2 cm
2.70 in
6.9 cm
PLAN VIEW
CONDENSER INLET
3/8" F.P.T.
CONDENSER DRAIN
1/2" F.P.T.
26.35 in
66.9 cm
23.06 in
58.6 cm
10.25 in
26.0 cm
15.53 in
39.4 cm
.88 DIA. KN
O
CK
O
UT
ELECTRICAL INLET
WATER INLET
3/8" FLARE
17.68 in
44.9 cm
4.31 in.
10.9 cm
21.75 in
55.2 cm
2.38 in
6.0 cm
4.75 in
12.1 cm
10.75 in
27.3 cm
SUMP DRAIN
3/4" F.P.T.
BACK VIEW
24.00 in
61.0 cm
SIDE VIEW
