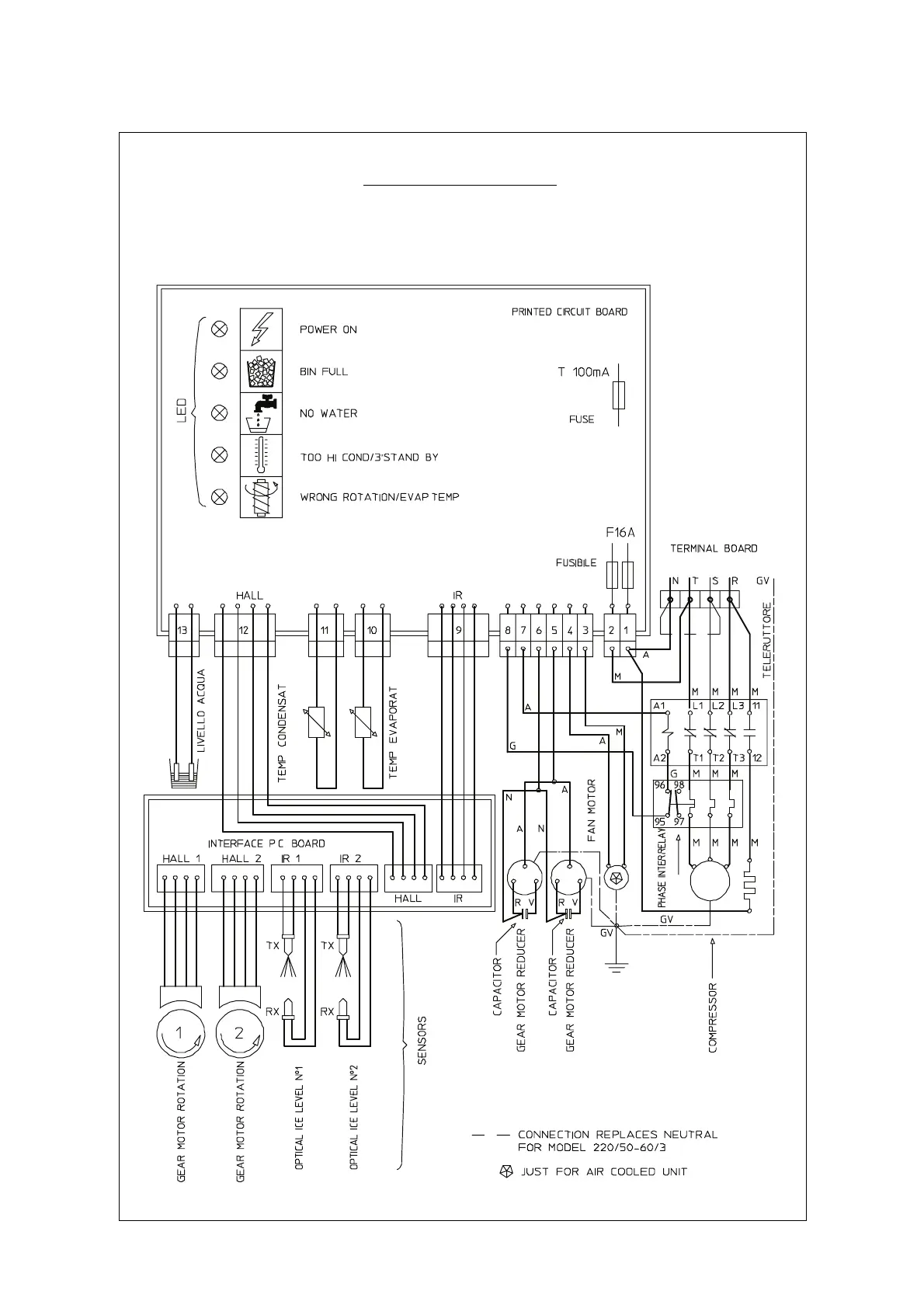

WIRING DIAGRAM MF 66
AIR AND WATER COOLED
THREE PHASE
Page 38
GV - YELLOW GREEN
B - WHITE
G - GREY
N - BLACK
A - BLUE
M - BROWN
V - GREEN
