SCOTT Scale User Manual

SCALE 700
S M L XL
A HEAD TUBE ANGLE 69.0 ° 69.0 ° 69.0 ° 69.0 °
B HEAD TUBE LENGTH 100.0 mm 3.9 in 100.0 mm 3.9 in 115.0 mm 4.5 in 125.0 mm 4.9 in
C TOP TUBE HORIZONTAL 575.0 mm 22.6 in 600.0 mm 23.6 in 625.0 mm 24.6 in 650.0 mm 25.6 in
D STANDOVER HEIGHT 728.9 mm 28.7 in 758.0 mm 29.8 in 786.8 mm 31.0 in 819.7 mm 32.3 in
E BB OFFSET -44.0 mm -1.7 in -44.0 mm -1.7 in -44.0 mm -1.7 in -44.0 mm -1.7 in
F BB HEIGHT 307. 5 mm 12.1 in 307. 5 mm 12.1 in 307.5 mm 12.1 in 307.5 m m 12.1 in
G WHEEL BASE 1’075.2 mm 42.3 in 1’100.2 mm 43.3 in 1’126.3 mm 44.3 in 1’152.0 mm 45.4 in
H BB CENTER TO TOPTUBE CENTER 315.8 mm 12.4 in 369.3 mm 14.5 in 409.3 mm 16.1 in 458.2 mm 18.0 in
I BB CENTER TO TOP OF SEATTUBE 390.0 mm 15.4 in 440.0 mm 17.3 i n 480.0 mm 18.9 in 530.0 mm 20.9 in
J SEAT ANGLE 73.0 ° 73.0 ° 73.0 ° 73.0 °
K CH A INSTAY 42 7.0 m m 16.8 in 427.0 mm 16.8 in 427. 0 mm 16.8 in 42 7.0 m m 16.8 in
L REACH 398.1 mm 15.7 in 423.1 mm 16.7 in 443.8 mm 17. 5 in 466.0 mm 18.3 in
M STAC K 578.6 mm 22.8 in 578.6 mm 22.8 in 592.6 mm 23.3 in 601.9 mm 23.7 in
N STEM LENGTH 70.0 mm 2.8 in 80.0 mm 3.1 in 90.0 mm 3.5 in 100.0 mm 3.9 in
SCALE 900
S M L XL
A HEAD TUBE ANGLE 69.5 ° 69.5 ° 69.5 ° 69.5 °
B HEAD TUBE LENGTH 105.0 mm 4.1 in 105.0 mm 4.1 in 115.0 mm 4.5 in 125.0 mm 4.9 in
C TOP TUBE HORIZONTAL 580.0 mm 22.8 in 600.0 mm 23.6 in 620.0 mm 24.4 in 640.0 mm 25.2 in
D STANDOVER HEIGHT 756.0 mm 29.8 in 783.0 mm 30.8 in 810.0 mm 31.9 in 842.0 mm 33.1 in
E BB OFFSET -60.0 mm -2.4 in -60.0 mm -2.4 in -60.0 mm -2.4 in -60.0 mm -2.4 in
F BB HEIGHT 310.0 mm 12.2 in 310.0 mm 12.2 in 310.0 mm 12.2 in 310.0 mm 12.2 in
G WHEEL BASE 1’079.0 mm 42.5 in 1’096.8 mm 43.2 in 1’117.0 mm 44.0 in 1’13 7. 9 mm 44.8 in
H BB CENTER TO TOPTUBE CENTER 329.0 mm 13.0 in 375.0 mm 14.8 in 415.0 mm 16.3 in 465.0 mm 18.3 in
I BB CENTER TO TOP OF SEATTUBE 390.0 mm 15.4 in 440.0 mm 17.3 i n 480.0 mm 18.9 in 530.0 mm 20.9 in
J SEAT ANGLE 72.5 ° 72.5 ° 72.5 ° 72.5 °
K CH A INSTAY 438.0 mm 1 7. 2 in 438.0 mm 1 7. 2 in 438.0 mm 17. 2 in 438.0 mm 17. 2 in
L REACH 385.0 mm 15.2 in 405.0 mm 15.9 in 422.0 mm 16.6 in 439.0 mm 17.3 in
M STAC K 618.0 mm 24.3 in 618.0 mm 24.3 in 628.0 mm 24.7 in 637.0 mm 25.1 in
N STEM LENGTH 70.0 mm 2.8 in 80.0 mm 3.1 in 90.0 mm 3.5 in 100.0 mm 3.9 in
SCALE PLUS
S M L XL
A HEAD TUBE ANGLE 67.6 ° 67.6 ° 67.6 ° 6 7. 6 °
B HEAD TUBE LENGTH 100.0 mm 3.9 in 105.0 mm 4.1 in 115.0 mm 4.5 in 125.0 mm 4.9 in
C TOP TUBE HORIZONTAL 5 77.0 m m 22.7 in 602.0 mm 23.7 in 6 27.0 mm 24.7 in 652.0 mm 25.7 in
D STANDOVER HEIGHT 780.0 mm 30.7 in 806.0 mm 31.7 in 829.0 mm 32.6 in 857. 0 mm 33.7 in
E BB OFFSET -50.0 mm -2.0 in -50.0 mm -2.0 in -50.0 mm -2.0 in -50.0 mm -2.0 in
F BB HEIGHT 315.0 mm 12.4 in 315.0 mm 12.4 in 315.0 mm 12.4 in 315.0 mm 12.4 in
G WHEEL BASE 1’108.0 mm 43.6 in 1’133.4 mm 44.6 in 1’159.3 mm 45.6 in 1’185.2 mm 46.7 in
H BB CENTER TO TOPTUBE CENTER 328.0 mm 12.9 in 383.0 mm 15.1 in 425.0 mm 16.7 in 477.0 mm 18.8 in
I BB CENTER TO TOP OF SEATTUBE 390.0 mm 15.4 in 440.0 mm 17.3 i n 480.0 mm 18.9 in 530.0 mm 20.9 in
J SEAT ANGLE 72.8 ° 72.8 ° 72.8 ° 72.8 °
K CH A INSTAY 439.0 mm 17.3 in 439.0 mm 1 7. 3 in 439.0 mm 1 7. 3 in 439.0 mm 17.3 in
L REACH 389.0 mm 15.3 in 412.0 mm 16.2 in 435.0 mm 17.1 in 457.0 mm 18.0 in
M STAC K 607.0 mm 23.9 in 612.0 mm 24.1 in 621.0 mm 24.4 in 631.0 mm 24.8 in
N STEM LENGTH 50.0 mm 2.0 in 60.0 mm 2.4 in 70.0 mm 2.8 in 80.0 mm 3.1 in
ENGLISHENGLISH
•
SCALE CONCEPT
Scale is the result of research and development based on the feedback from the SCOTT-
ODLO Racing Team searching for one of the lightest cross country racing frames in
the market.
SCOTT’s focus was not only on creating a lightweight frame, but one that was also a stiff and
easy to handle racing frame.
Seatpost
diameter
Scale 700 / Plus: 31.6mm (27.5”),
Scale900: 34.9mm (29”)
Seattube clamp Scale 700 / Plus: 34.9mm (27.5”),
Scale900: 38.2mm (29”)
Headtube
diameter
1 1/8” /1.5”, tapered, cups semi-integrated,
50-61mm cup OD
Fork travel Scale 700 / 900: 100mm, Scale Plus:
120mm
Technical fork
length
Scale 700: 487mm (27.5”), Scale900:
506mm (29”), Scale Plus: 520mm
BB housing PF BB 92
Rear Hub Width Scale 700 / 900: IDS SL2 135-5/135-12/142-
12mm, Scale Plus: Boost 148/12mm
Max tire width Scale 700 / 900: 57.5mm/2.25”, Scale Plus:
74mm/2.9”
Chainring size Scale 700 / 900: min. 22T, max. 44T, Scale
Plus: Max 34T (single)
•

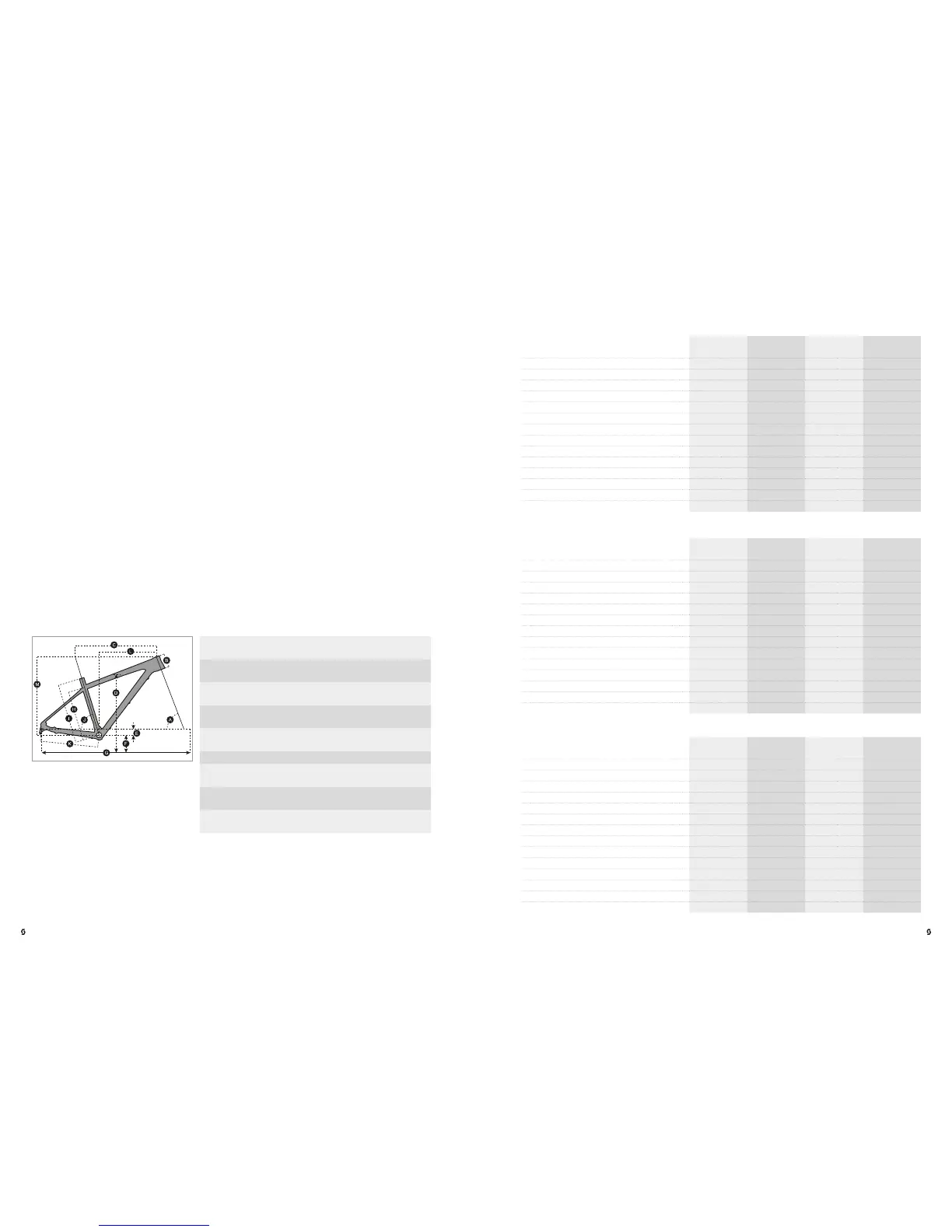

GEOMETRY/TECHNICAL DATA SCALE
•
GEOMETRY/TECHNICAL DATA SCALE
05 |
2016 BIKE USER MANUAL | SCALESCALE | 2016 BIKE USER MANUAL
| 04

SCOTT Scale Specifications

General

Fork	Suntour XCR32-RL-R / Coil Spring Remote Lockout / Reb. Adj. 100mm travel
Wheel Size	29"
Brakes	Shimano MT200 Disc
Seatpost	Syncros
Seat	Syncros
Headset	Syncros
Rims	Syncros
Front Tire	Schwalbe
Rear Tire	Schwalbe
