NUDE TC SHOCK UND TWINLOC
REMOTE CONTROL LEVER

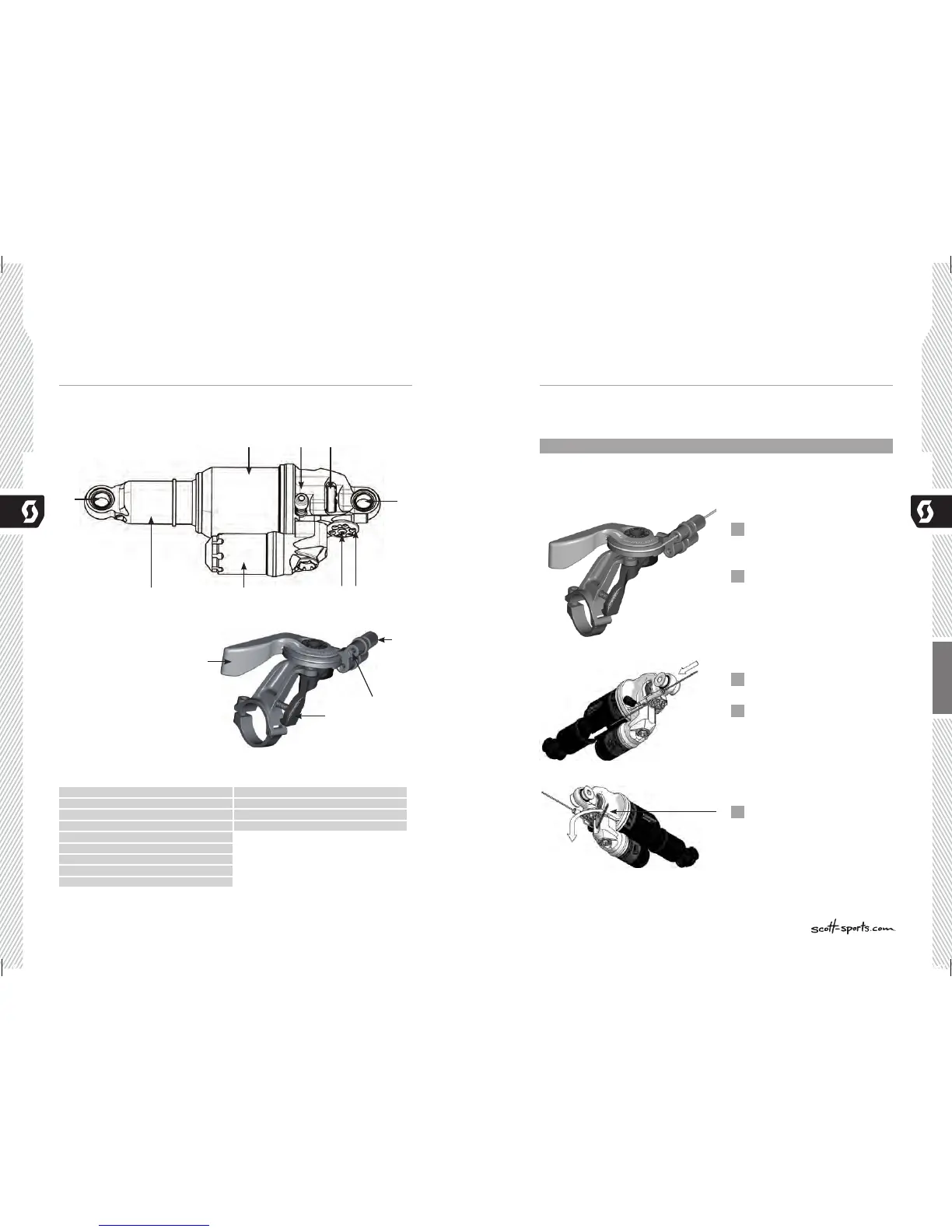

BASIC SET-UP OF THE TWINLOC
REMOTE CONTROL OF NUDE TC SHOCK
In der untenstehenden Abbildung des Dämpfers und des Fernbedienungshebels können
Sie die Bauteile mit Nummern bezeichnet finden, die in dieser Bedienungs anleitung
verwendet werden.
To ensure perfect function of the Nude TC shock it is very important to follow the steps
shown below exactly
IMPORTANT
For all following actions the TWINLOC lever needs to be in “ALL TRAVEL-MODE”
position!
thread in cable along the groove
and pull it tight gently
1
press the release lever twice whilst
still pulling the cable to set the
lockout-lever into the
«open» position
2
Thread in the cable...
3
...make it stepping out along the
piggy back
4
Unmount the M4 headless screw.
5
L3
L1
L4
L2
S2 Rear eyelet/ Shock Bolt
S6 Positive Chamber Valve
S4 Shock Housing
S8 Cable fixing Screw
S3 Piggy-Back
S7 Lock Out Barrel
S1 Front eyelet/ Shock Bolt L1 Remote Lever
L3 Tension Screw
L2 Release Lever
L4 Allen Screw
S5 Rebound-Screw
S9 Shock Piston
S9 S3 S8 S7
S1
S5S6S4
S2
