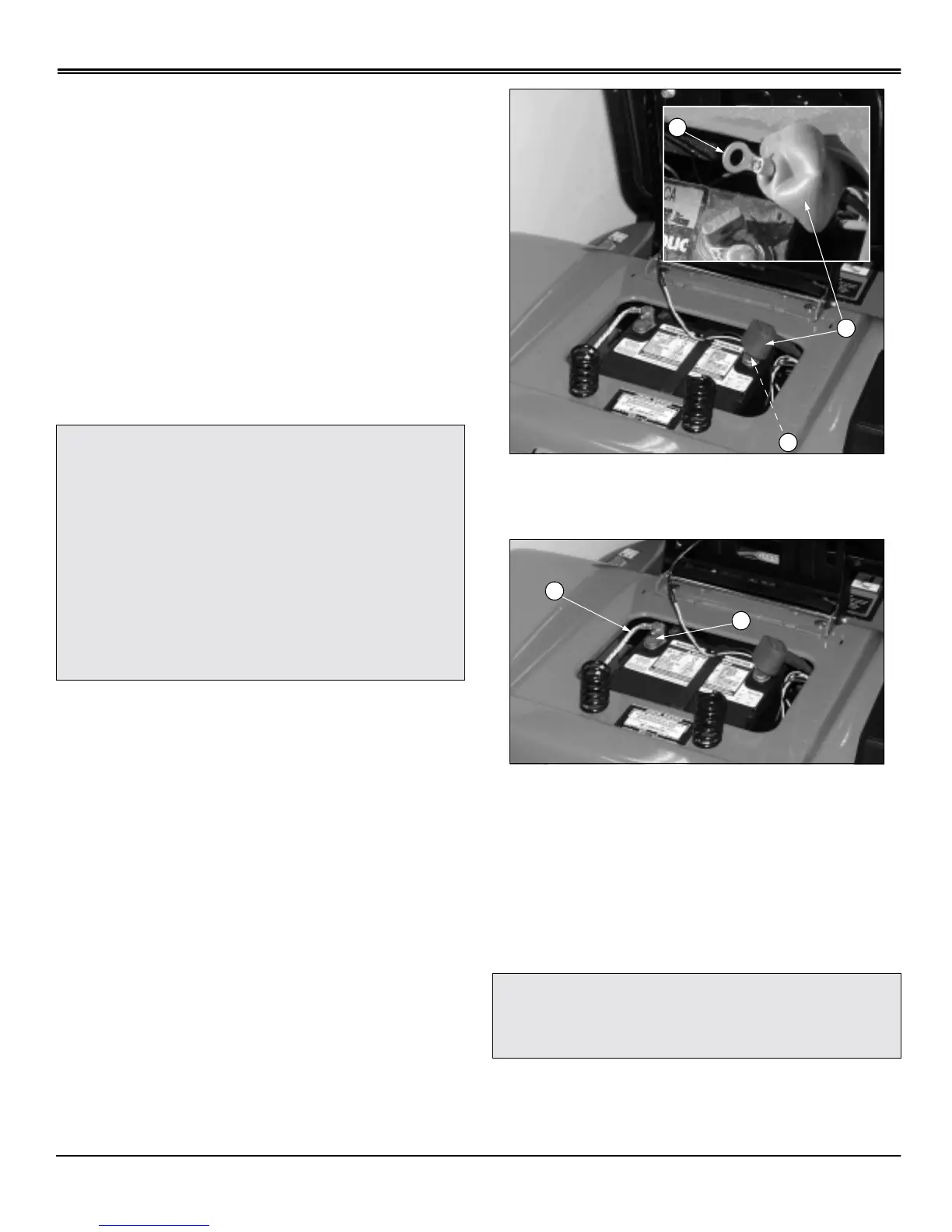

Assembly - 54
ASSEMBLY
Assembly
Bag of Parts
Check and Connect the Battery
NOTE: The battery was filled with acid and charged
when it left the factory. Charge the battery if the mower
is not used by the Service Expiration Date indicated on
the battery.
Do not attempt to open, add fluid or service battery.
Any attempt to do so will void the warranty.
1. Check battery voltage, charge if necessary.
• Battery should be charged if voltage is below 12.3
volts. Battery is fully charged at 12.6 volts.
2. Remove and discard the RED positive (+) protective cap
from the positive (+) battery terminal.
3. Pull back the red terminal cover (A) to allow easy access
to the positive (+) cable (B) and connect positive (+) cable
to battery.
4. Connect silver braided grounding cable (C) to the
negative (–) terminal (D).
5. Apply general purpose grease or silicone spray to
terminal to help prevent corrosion.
6. Slide red cover over positive battery cable.
Prepare Mower Deck (42-Inch Only)
• If tractor/mower deck is being set-up for mulching, install
mulch cover kit. (See Using Mower Deck Mulch Ready in
the Operating Mower section.)
Description Qty
Operator’s Manual 1
Safety Video 1
Key 1
Hardware for Battery:
• M8x16 Bolts
• M8x16 Nuts
1
2
2
c
CAUTION: Avoid injury! The battery produces
a flammable and explosive gas. The battery
may explode:
• DO NOT smoke near battery.
• Wear eye protection and gloves.
• DO NOT allow direct metal contact across
battery posts.
• Remove negative cable first when
disconnecting.
• Install negative cable last when connecting.
c
CAUTION: Avoid injury! Never operate the
mower without the discharge chute guard in
place.
To Next Page
