KeyPad service manual

Rev.1.1

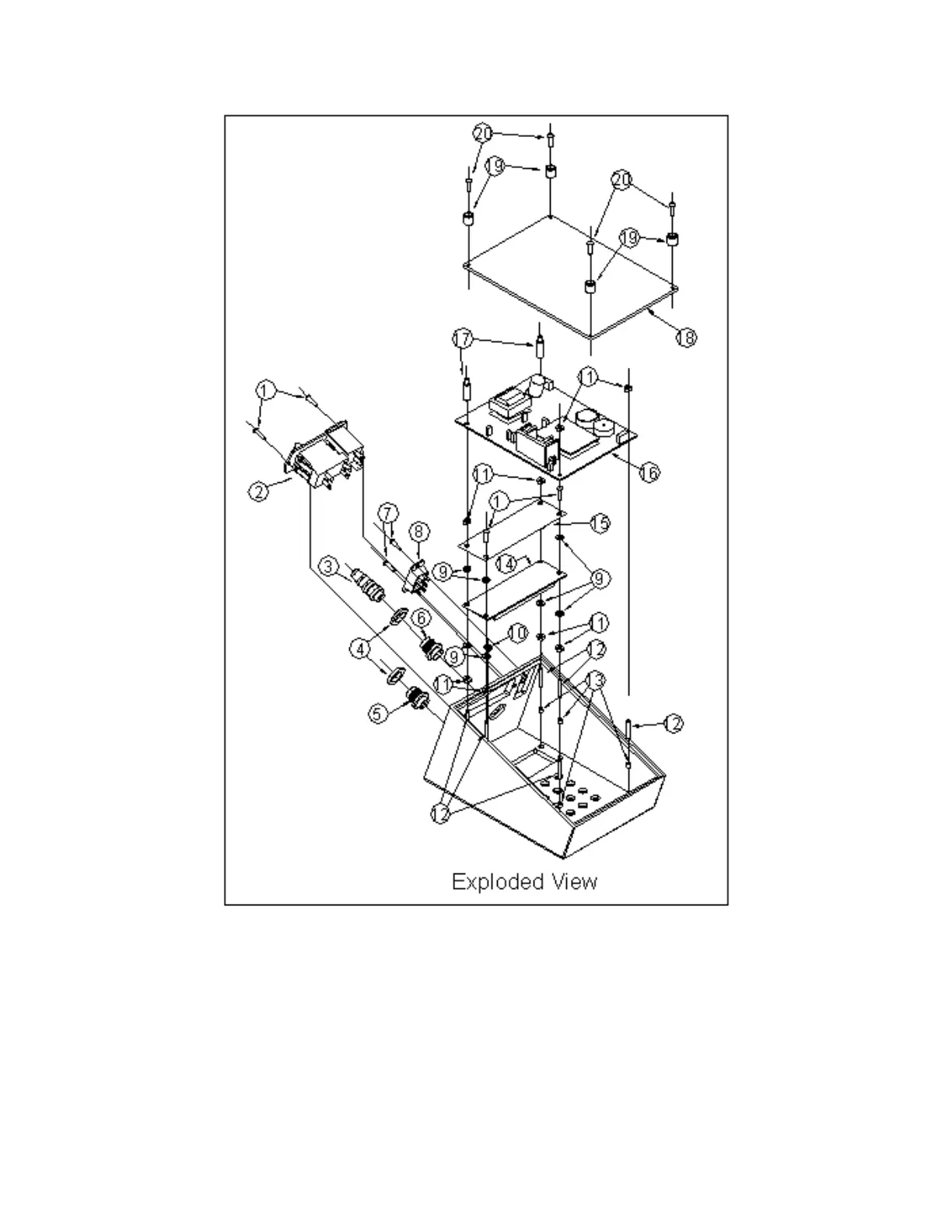

Figure 4: KeyPad display mounting view.

Legend:

1. Rounded-Head Nylon Screw #6-32 x 1”

2. On/Off Switch

3. Dongle 2-Pin Female

4. Panel Lock Nut

5. Panel Mount Connector 7-Pin Male

6. Panel Mount Connector 2-Pin Male
