5. DigiPREP Controller – DigiPREP MS is designed to be used with
DigiPREP KeyPad* or Touch Screen* controller (*Sold separately).
6. DigiPROBE well – Use with replaceable glass liner.
7. Voltage Selector Switch - Select appropriate voltage. If 115 V is
showing, system is running at 115 volts.
8.3 DigiPREP HP Block Description
1. DigiPROBE Connector – Connection port for DigiPROBE.
DigiPROBE will allow direct monitoring and control based on actual
sample temperature. DigiPROBE Dongle must be installed to run
the DigiPREP HP without the DigiPROBE option.
2. Cable Connector – Connection port for the DigiPREP HP umbilical
cable to the controller.
3. Power Switch/ Power Cord Receptacle – On/Off switch – contains
circuit breaker and receives the female end of the power cord.
4. DigiSET Connector – Connection port for DigiSET. DigiSET will
automatically shut off the digestion block when a pre-set sample
volume is reached. DigiSET dongle must be installed to run
DigiPREP HP without the DigiSET option.
5. DigiPREP Controller – DigiPREP HP is designed to be used with
DigiPREP KeyPad* or Touch Screen* controller (*Sold separately).
4
2
1

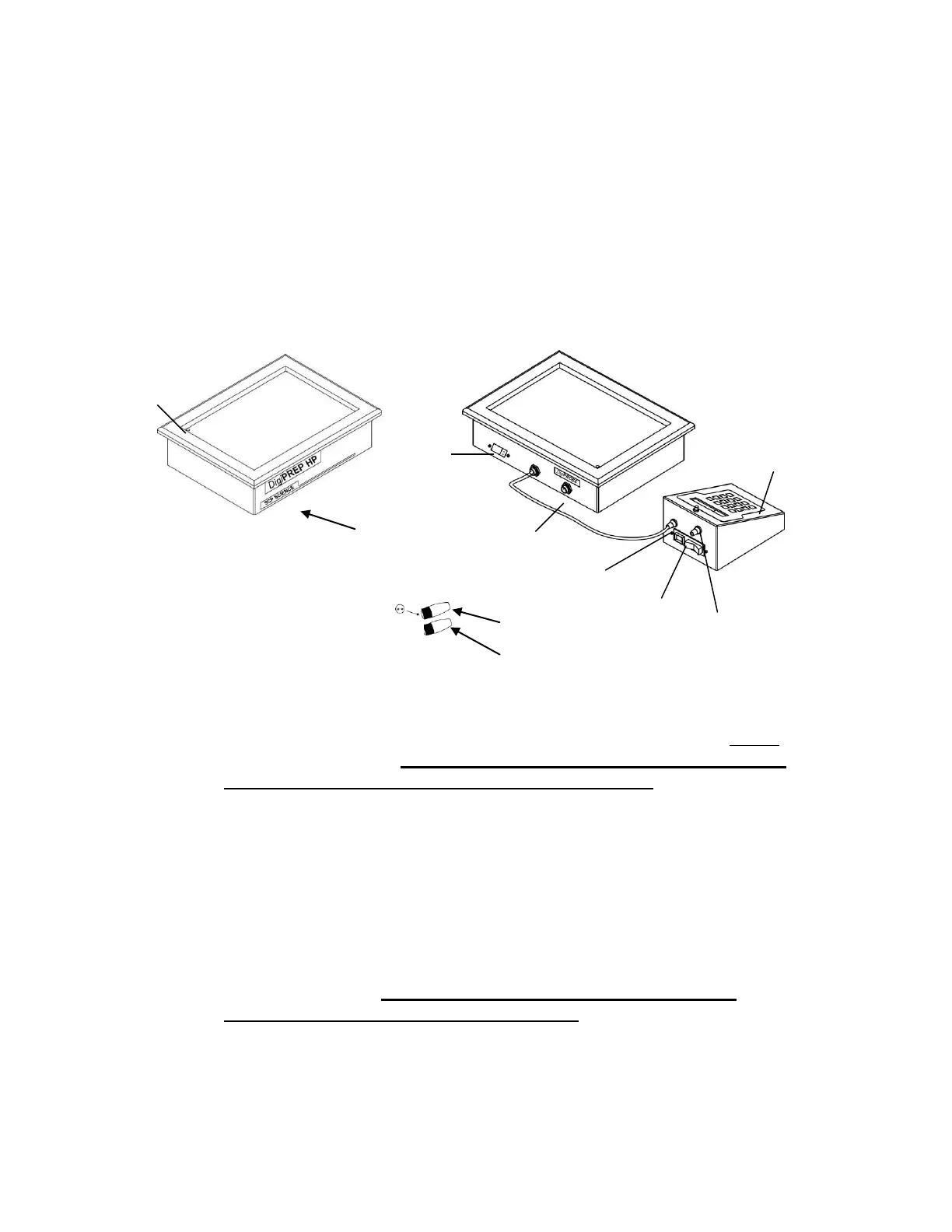

DigiPREP HP Digestion
Block
5
6
3
7
DigiSET dongle
DigiPROBE dongle
