8. DigiPREP Blocks
8.1 DigiPREP Jr. Block description

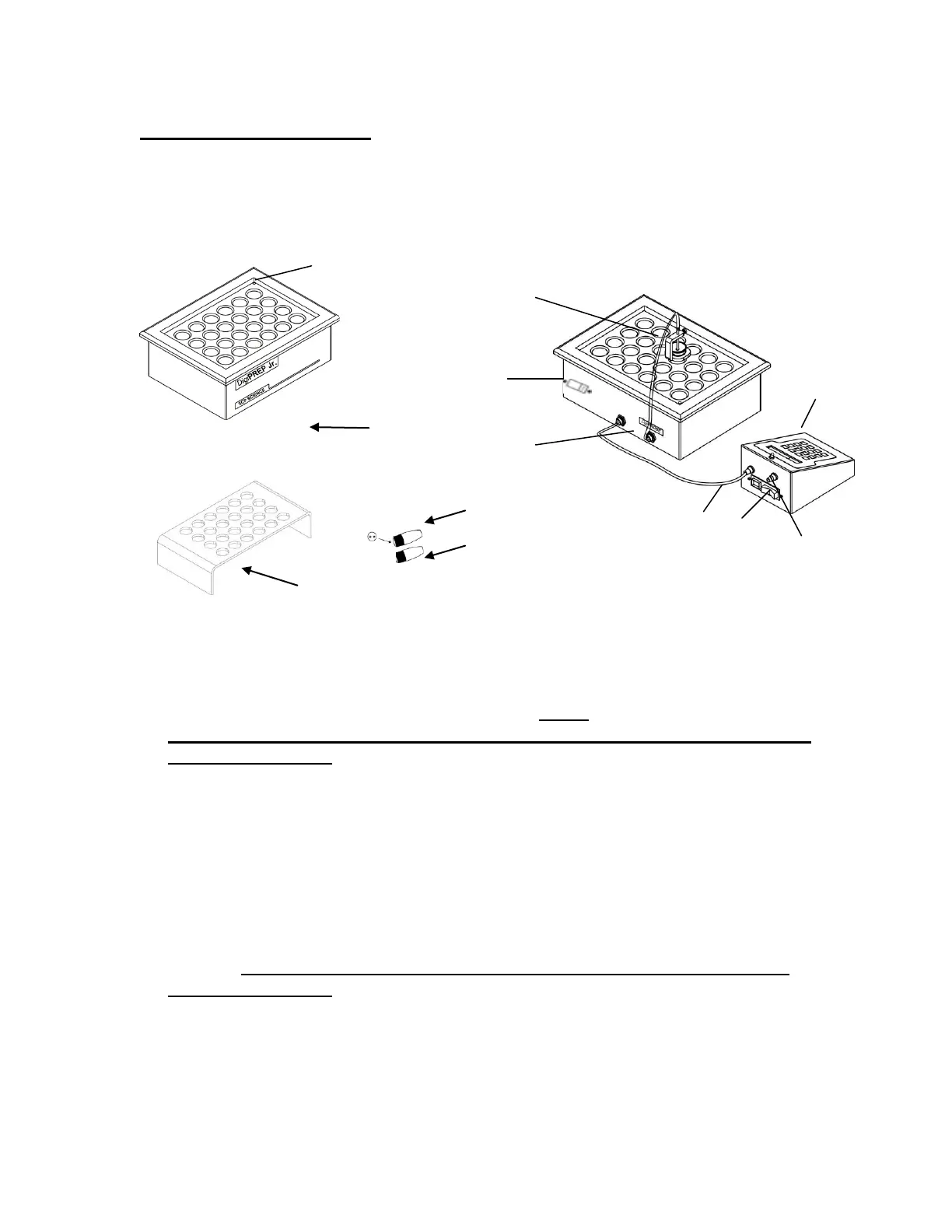

1. DigiPROBE Connector – Connection port for DigiPROBE. DigiPROBE will
allow direct monitoring and control based on actual sample temperature.
DigiPROBE Dongle must be installed to run the DigiPREP Jr. without the
DigiPROBE option.
2. Cable Connector – Connection port for the DigiPREP Jr. umbilical cable to
the controller.
3. Power Switch/ Power Cord Receptacle – On/Off switch – contains circuit
breaker and receives the female end of the power cord.
4. DigiSET Connector – Connection port for DigiSET. DigiSET will
automatically shut off the digestion block when a pre-set sample volume is
reached. DigiSET dongle must be installed to run DigiPREP Jr. without
the DigiSET option.
5. DigiPREP Controller – DigiPREP Jr. is designed to be used with DigiPREP
KeyPad* or Touch Screen* controller (*Sold separately)
6. DigiPROBE (Option) – To monitor and control sample or block temperature.
3
2
1
6
DigiPREP Jr. 24 position
Digestion Block
One (1) - 24 Position
DigiTUBE Racks
5
7
4
DigiSET dongle
DigiPROBE dongle
8
