SCP SCIENCE DigiPREP HP Service Manual

KeyPad service manual
Rev.1.1
23

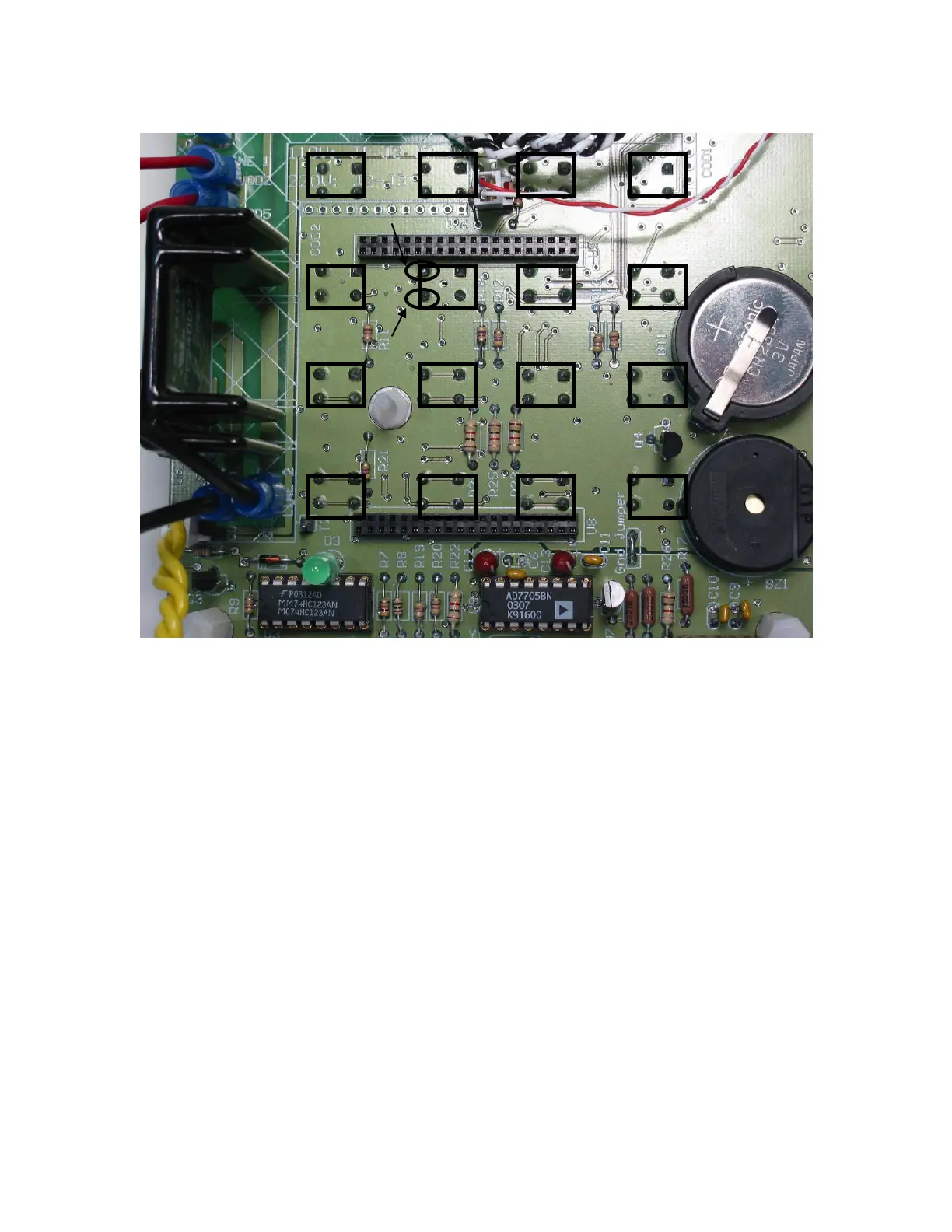

Figure 11: Push button measuring location
Legend:
1. Alarm button
2. Button #3
3. Button #2
4. Button #1
5. Temperature setting button
6. Button #6
7. Button #5
8. Button #4
9. Time setting button
10. Button #9
11. Button #8
12. Button #7
13. ENTER button
14. Right shift button (<)
15. Button #0
16. Left Shift button (>)
17. Positive probe position
18. Negative probe position
10
11
12
9
14
15
16
13
6
7
8
5
2
3
4
1
17
18
