12 en
For a better seal, put silicone
on the top and the 2 sides of the
keyboard

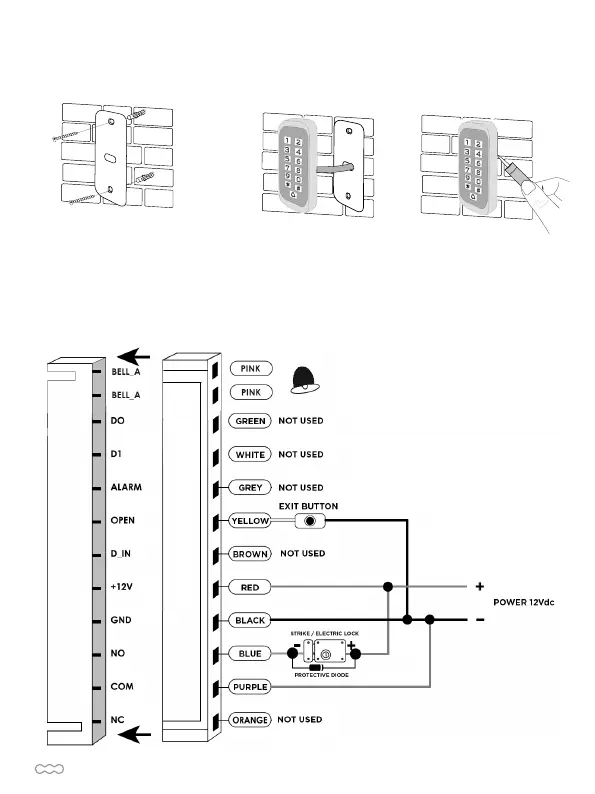

C- WIRING / INSTALLING
C2 - Wiring diagram
To strike/electric lock
C1 - Installing
