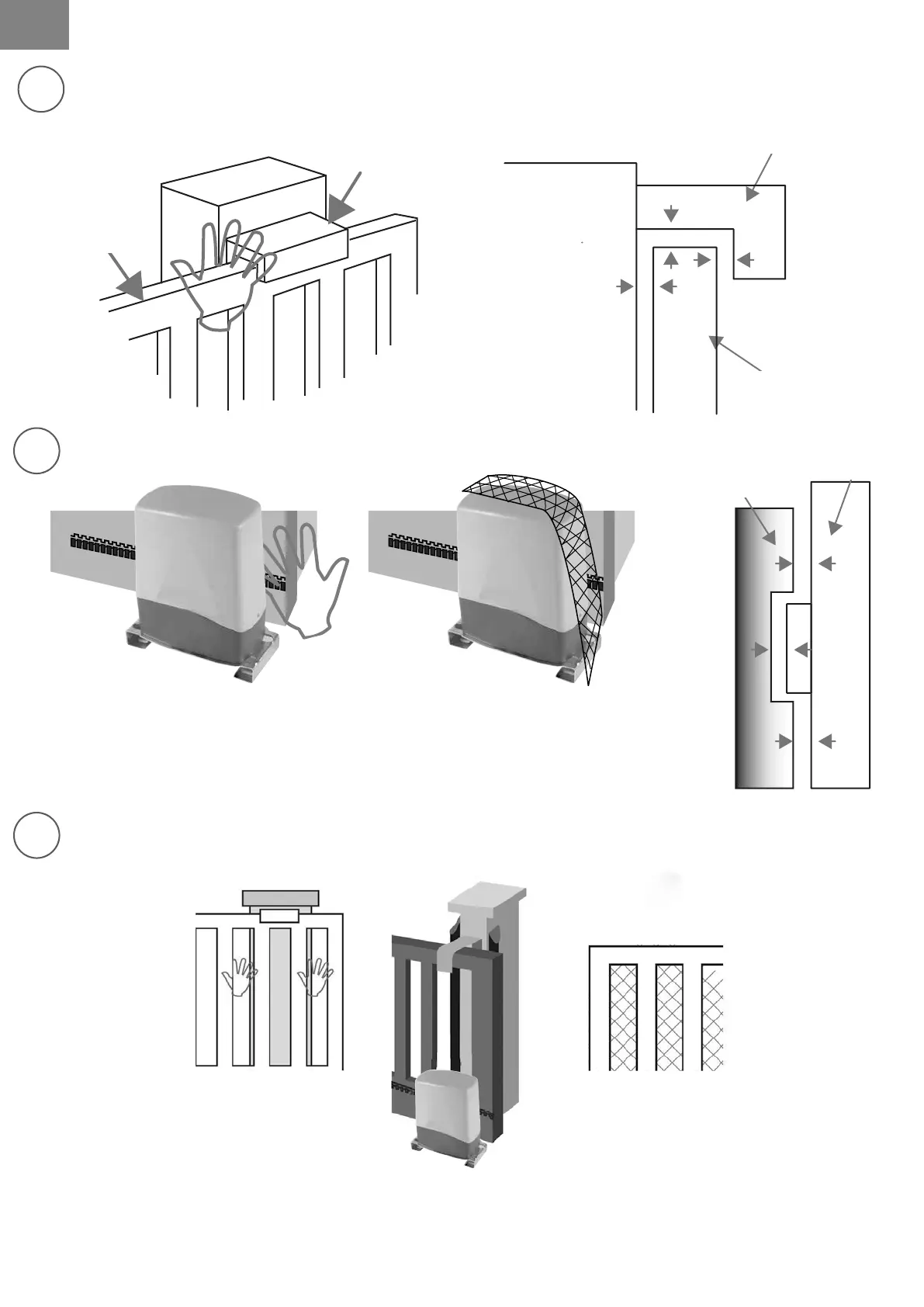

Between the rack and pinion. Risk of hands being drawn into the mechanism.
Solution: Protection (hood or wire mesh)
4
portail
glissière
pilier
glissière
portail
a
a
a
a <8 mm
protecteur
portail
a <8 mm
a
a
a
portail
glissière
pilier
glissière
portail
a
a
a
a <8 mm
protecteur
portail
a <8 mm
a
a
a
Connecting sensor bars: Connect to connection block J1 at posts 6 and 7.
You may also install an emergency stop button near to the installation. Connect the push button in series
to the AC power supply (between FS1 and the transformer’s cable).
5
At the upper slides: Risk of hands being trapped.
Solution: Maintain a secure zone; visually identify the area at risk. Safety distance <8mm.
Between the bars of an open bar gate: Risk presented by the scissoring action.
Solution: Condemn the spaces in-between the bars with wire mesh (link diameter
20mm x 20mm maximum), with solid panels or with a sensor bar.
portal
slide
pillar
slide
portal
portal
protective
