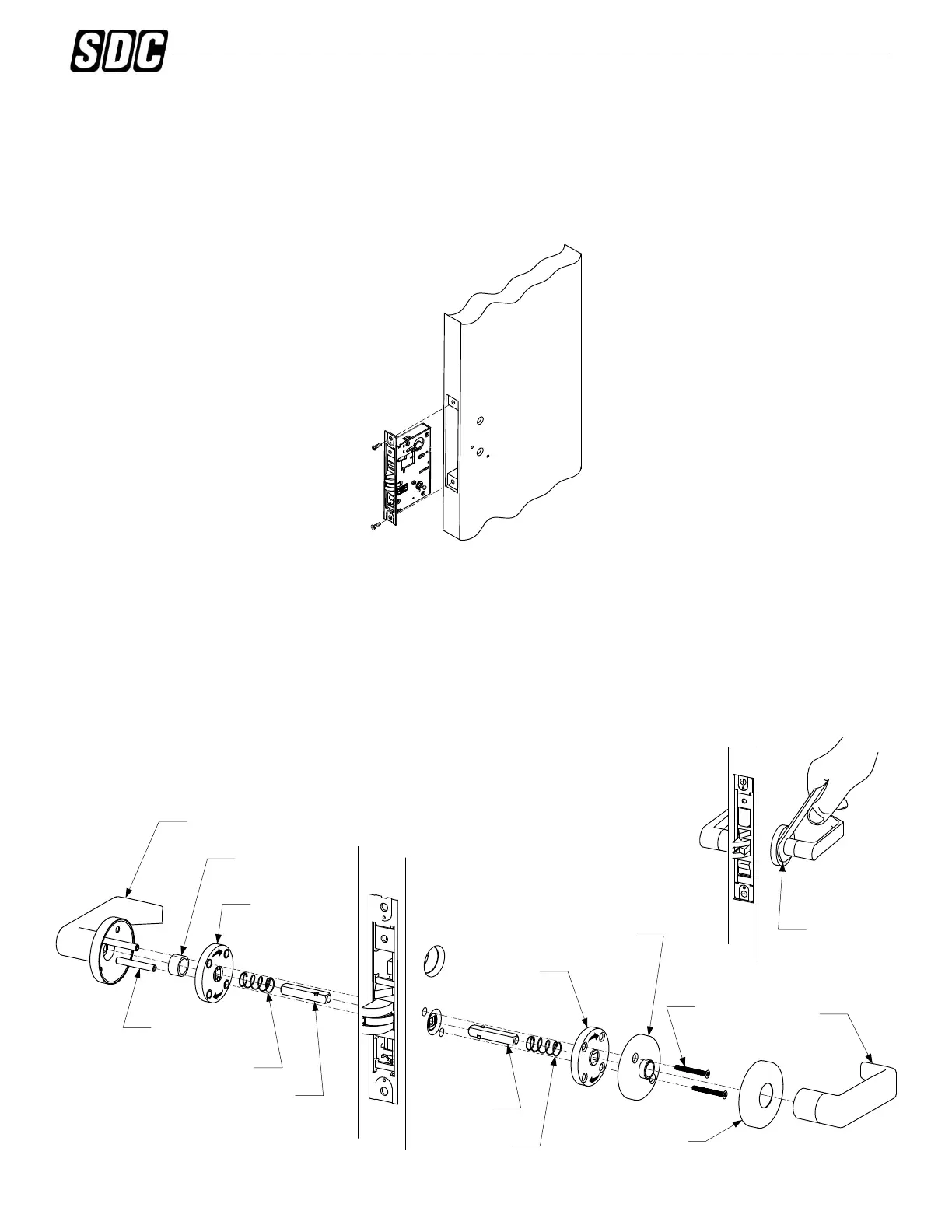

C. Install Lockcase (Continued)
2. Connect wires as shown on the lock cover diagram (or refer to page 6 of instructions).
3. Insert lockcase into mortise cut-out and fasten to door using screws.
D. Install for Rose Lever Trim
1. Install Outside Lever Assembly first.
2. Guide the Spindle Spring over Spindle, then insert Spindle into the outside side of mortise lockset.
3. Insert Collar into Outside Lever Assembly. Guide the Reversible Spring Cage over Mounting Posts with arrows
pointing in direction of lever rotation.
4. Insert the Outside Lever Mounting Post through holes in door.
5. Install Inside Lever Assembly by guiding Reversible Spring Cage over the inside Spindle and Spindle Spring with
arrows pointing in direction of lever rotation.
6. Place Mounting Plate over Reversible Spring Cage and secure by threading Mounting Screws into Mounting Posts.
7. Place Rose Cover over Mounting Plate.
8. Thread Inside Lever onto Mounting Plate and tighten using supplied Spanner Wrench.
Spanner
Wrench
Outside Lever
Assembly
Collar
Reversible
Spring Cage
Spindle Spring
Spindle
Spindle
Spindle Spring
Reversible
Spring Cage
Mounting
Plate
Mounting
Screws
Rose
Cover
Inside
Lever
Mounting
Posts
