Install Key Cylinder and Armor Face Plate (Escutcheon Trim)

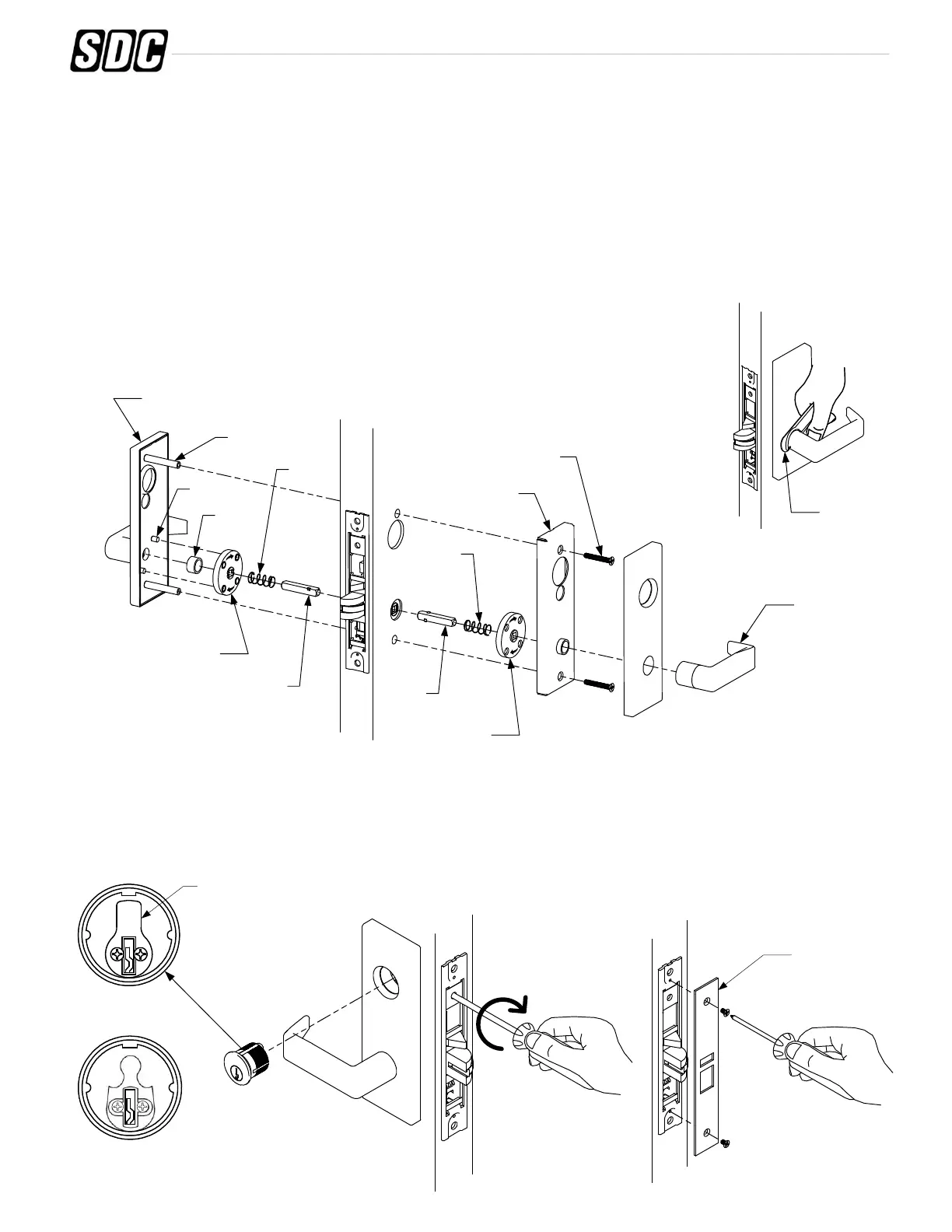

1. Screw key cylinder into threaded hole of the lock case (Key cylinder not provided).
2. Tighten the set screw against cylinder by turning clockwise as shown.
3. Install face plate onto the lock case and fasten with supplied screws.
Spanner
Wrench
Face Plate
Use standard straight
cam ILCO (863G) or
ILCO (863M) Schlage
“L” cam.
D. Install for Escutcheon Lever Trim
1. Install the Outside Lever first.
2. Place Spindle Spring over outside Spindle, then insert Spindle into the outside sides of lockset.
3. Insert Collar into Outside Lever Assembly. Place Reversible Spring Cage over Ferrules with Spring Cage arrows
pointing in direction of lever rotation.
4. Install Outside Lever Assembly by inserting Mounting Posts through holes in door.
5. Install Inside Lever by placing Reversible Spring Cage over inside Spindle and Spindle Spring with the spring cage
arrows pointing in direction of lever rotation.
6. Place mounting plate over Reversible Spring Cage and secure by threading Mounting Screws into Mounting Posts.
7. Install escutcheon Cover Plate over Mounting Plate.
8. Thread Inside Lever onto Mounting Plate and tighten with Spanner Wrench.
Ferrule
Outside Reversible
Spring Cage
Collar
Spindle
Spring
Spindle
Mounting
Posts
Spindle
Spindle
Spring
Inside Reversible
Spring Cage
Mounting Plate
Mounting Screws
Inside Lever
Outside Lever
Assembly
863G
863M
