SDC PRO Series - Installation Wire Diagram; Typical Wiring Configuration; Wiring with Options Diagram

P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7835-E REV G 09-22 Page 5
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

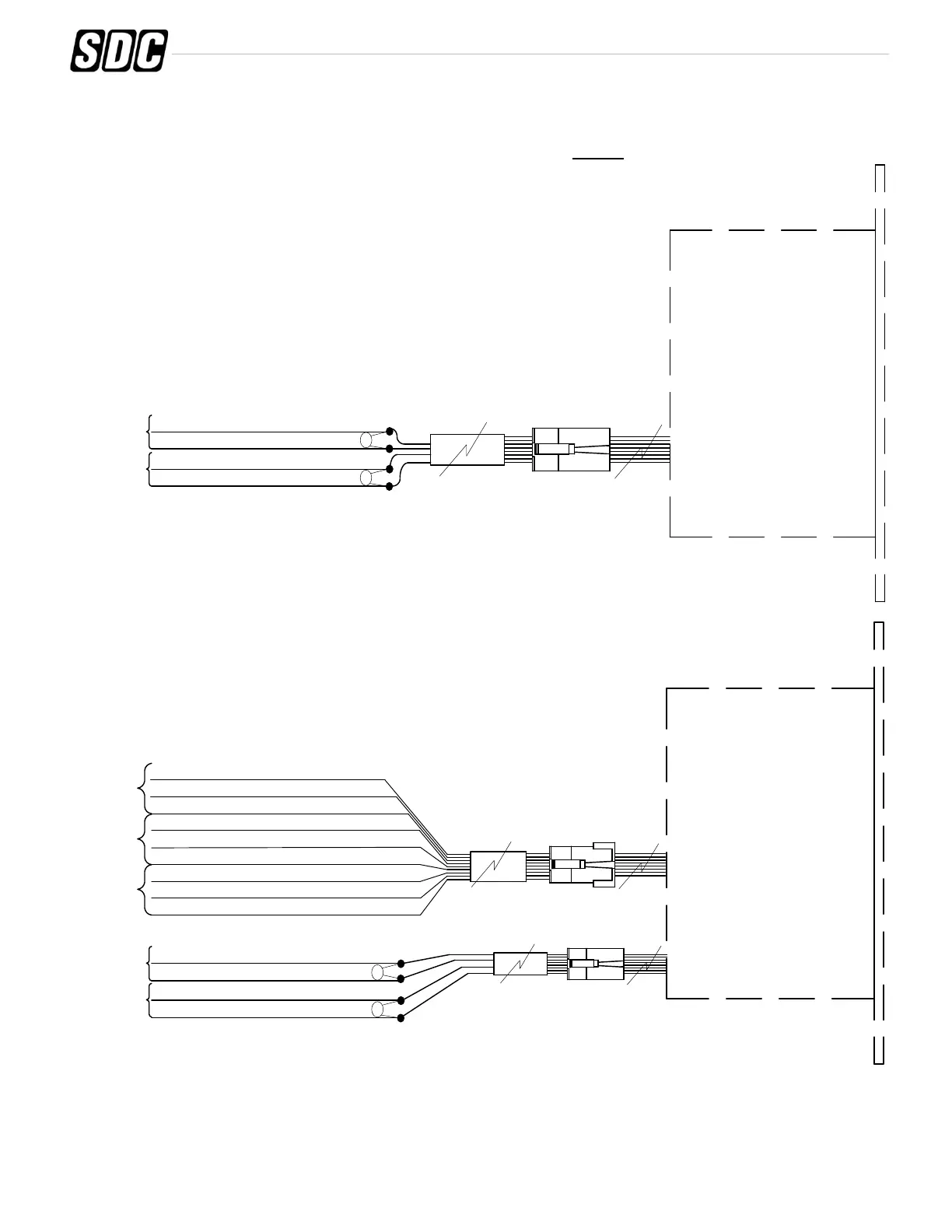

INSTALLATION WIRE DIAGRAM
Model Z7835 Series 12VDC ONLY
TYPICAL WIRING
(NO OPTIONS)
12VDC 4 PIN
CONNECTOR
WIRING WITH OPTIONS
ORANGE COM
REX BROWN N/C
YELLOW N/O
*Install MOV across each coil to
protect ACS electronics. Install as
close as possible to the lock
*MOV
*Install MOV across each coil to
protect ACS electronics. Install as
close as possible to the lock
OUTSIDE SOLENOID
OUTSIDE SOLENOID
INSIDE SOLENOID
INSIDE SOLENOID
(+)
(+)
(-)
(-)
RED
GREEN
BLACK
WHITE
*MOV
OUTSIDE SOLENOID
INSIDE SOLENOID
INSIDE SOLENOID
(+)
(+)
(-)
(-)PINK
RED
GREY
VIOLET
Fail-Secure
Fail-Safe
Fail-Secure
Fail-Safe
RED / YELLOW N/O
RED / BLACK LATCHED EXTENDED
WHITE N/O
BLACK N/C
GREEN N/C
DPS
LS
RED / GREEN UNLATCHED RETRACTED
4 PIN
CONNECTOR
10 PIN
CONNECTOR
OUTSIDE SOLENOID
