ReinstallationofShippingMaterials

YoumustinstalltheshippingbraceandshippingpluganytimetheVortexM6ismoved.


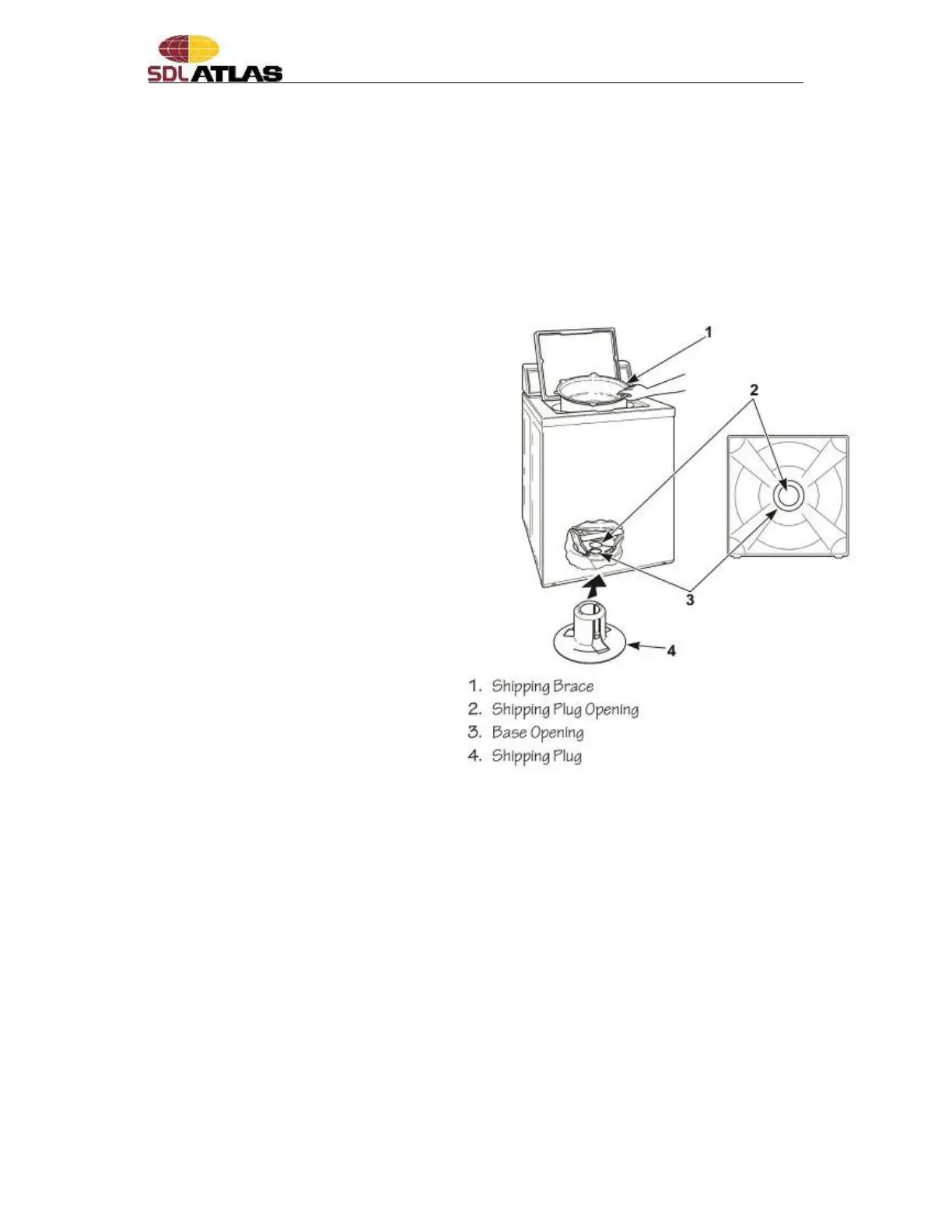

ShippingBrace

TheshippingbraceinthelidopeningshouldbesavedandreinstalledwhenevertheVortex
M6ismoved. Toreinstallthebrace,openthelidand placethe braceovertheinstrument
agitator,placingthebackofthebraceintothelidopeningfirst.

ShippingPlug

The plastic shipping plug should be
saved and reinstalled any time the
VortexM6is moved.Theplugfitsinto
two openings: The base opening and
the shipping plug opening on the
bottomofthemovablepivotdome.
The plug MUST be inserted into both
openings to prevent damage to the
instrument.Inordertoaccomplishthis,
the shipping plug opening must be
directlylinedupwiththebaseopening.


After the shipping brace has been
installed in the lid opening, tilt the
VortexM6backenoughtoaccessbase
opening.Insertshippingplugintobase
openingand,usingthepalmofyour
hand, push shipping plug into the
instrument until it snaps into shipping
plugopening.
