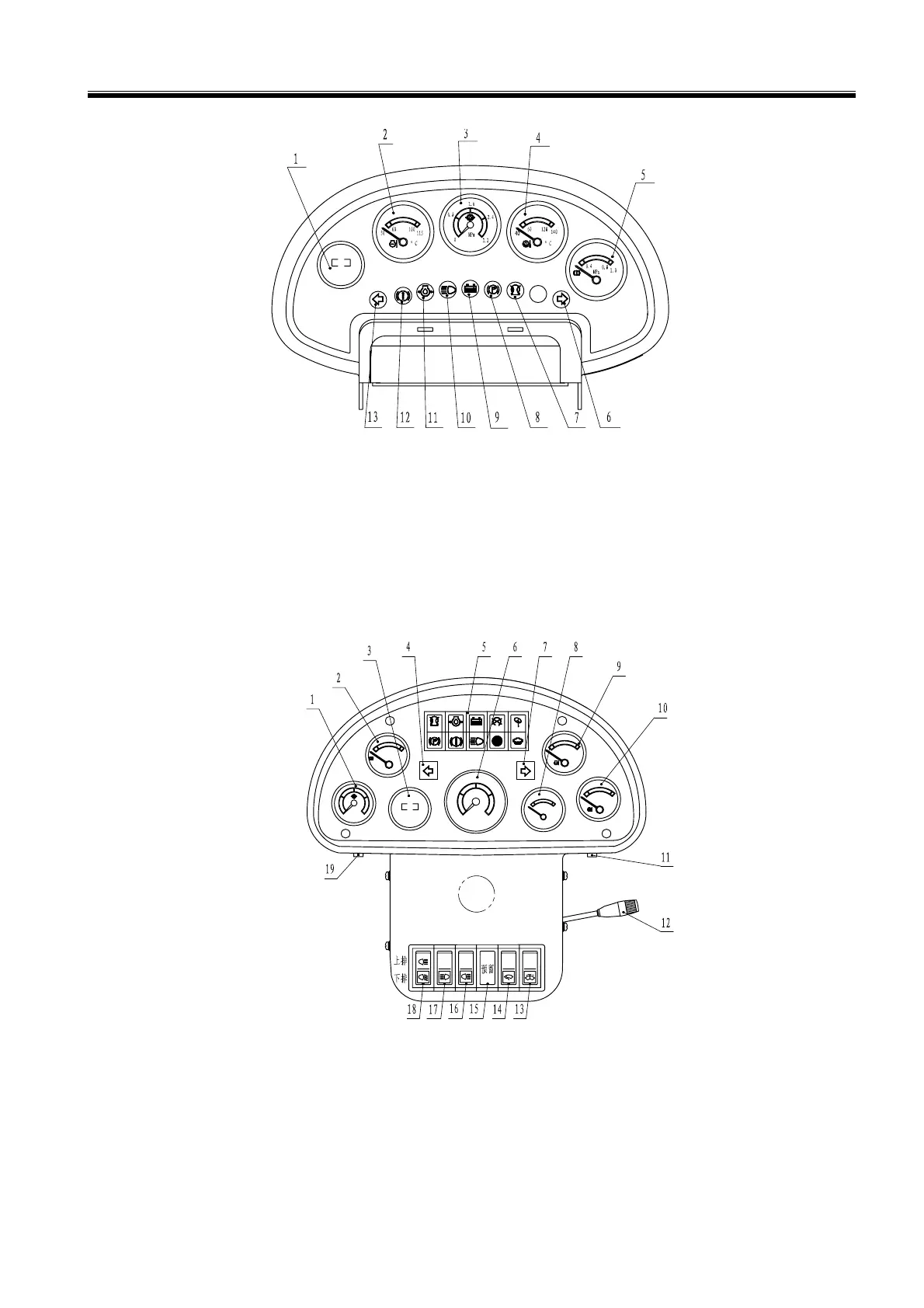

1. Working Chronometer 2. Engine Water Temperature Gauge 3. Gearbox Oil Pressure Gauge
4. Torque Converter Oil Temperature Gauge 5. Brake Air Pressure Gauge 6. Right Turn
Indicator Lamp 7. Preheating Indicator Lamp 8. Parking Brake Indicator Lamp 9. Charge
Indicator Lamp 10. High Beam Indicator Lamp 11. Engine Oil Pressure Warning Lamp
12. Brake Air Pressure Warning Lamp 13. Left Turn Indicator Lamp
Figure 3-3 General view of gauges
1. Gearbox Pressure Gauge 2. Air Pressure Gauge 3. Working Chronometer 4. Left Turn
Indicator Lamp 5. Indicator Lamp 6.
Revolution Indicator 7. Right Turn Indicator Lamp
8. Fuel Level Gauge 9. Engine Water Temperature Gauge 10. Torque Converter Oil Temperature
Gauge 11. Starting Switch 12. Switch Group 13. Water Spraying Switch 14. Rain wiper
Switch 15. Cover Board 16. Rear Headlight Switch 17. Front Headlight Switch 18. Rear Light
Lamp Switch 19. Warning Lamp Switch
Figure 3-4 General view of gauges (with
revolution indicator and fuel level gauge)
