5.0 OS2 AC Controller
Connections
5.1 Introduction

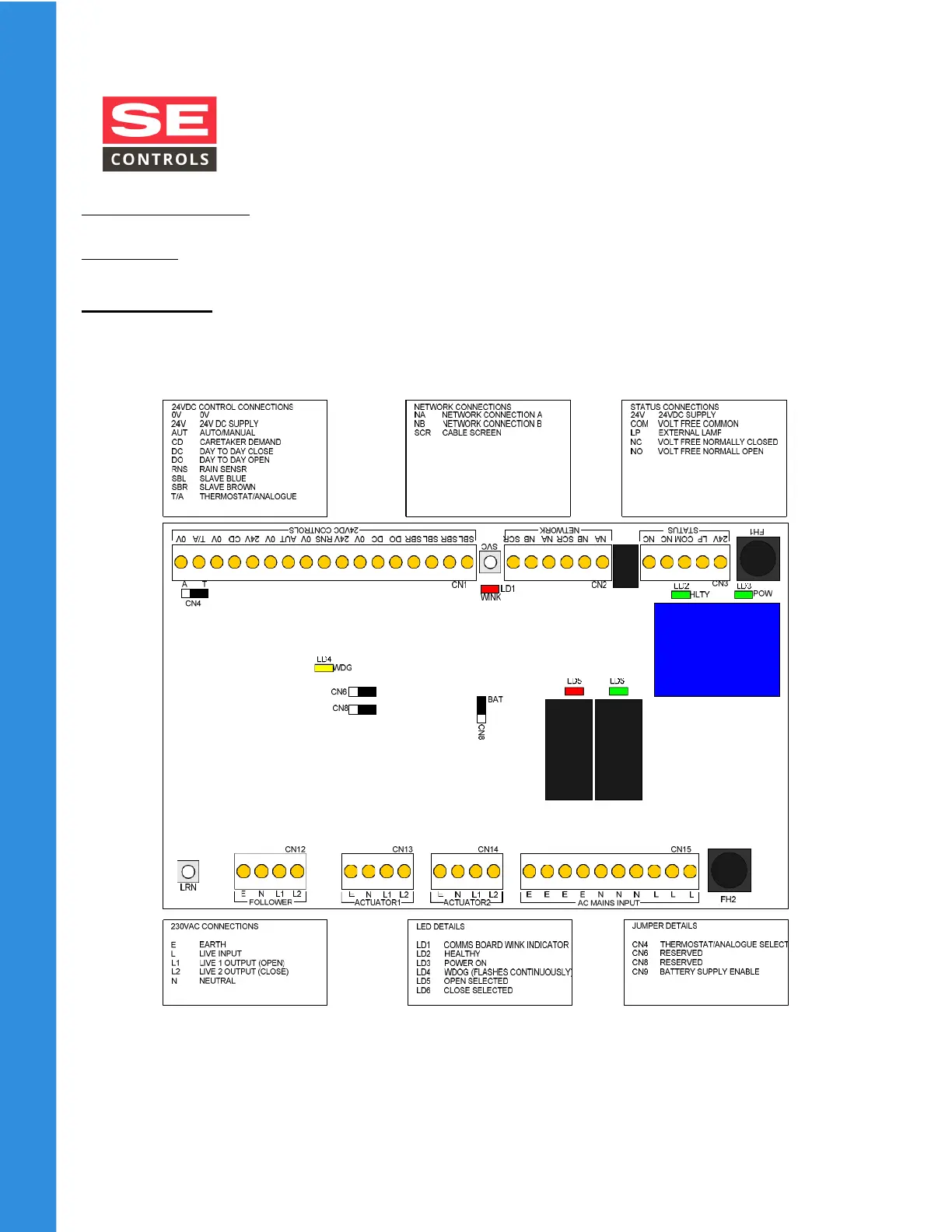

The following is a sketch which highlights the important features of the OS2 AC controller unit which are
covered later in this document.
All controller cable terminals have a capacity of 2.5mm
2
stranded and 4mm
2
solid core cables.
The installer must not adjust or remove original manufacturers cabling or use terminal outputs or
inputs for purposes other than their design purposes without the written authorization from S E
Controls.
