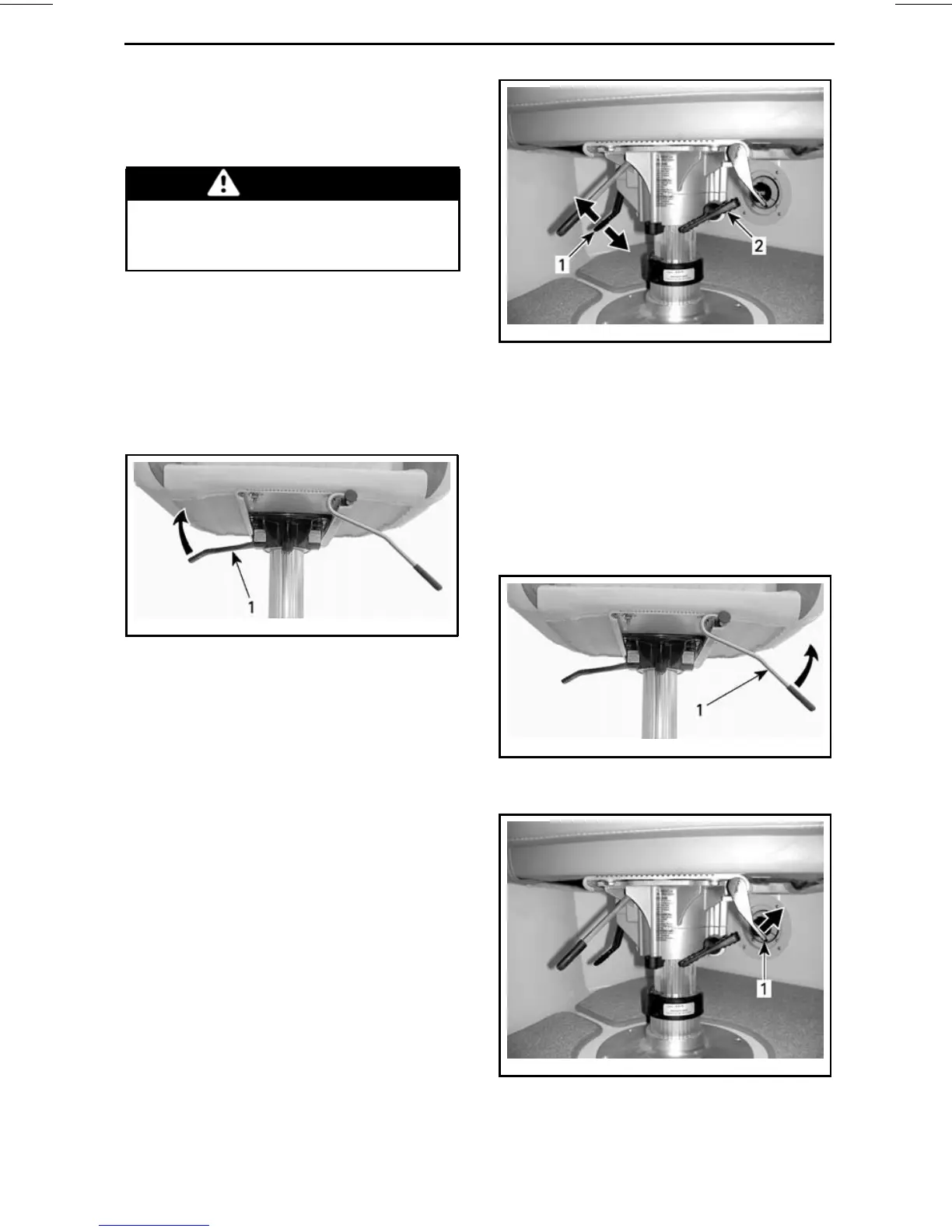

EQUIPMENT
1) Driver/Passenger Seat
Swivel Adjustment
WARNING
Always ensure drivers seat swivel
is locked so that seat faces steering
wheel before riding.
230 Challenger
Both driver and passenger seats can
swivel.
Pull and hold the lever located on the
RH side of the seat, swivel seat to the
desired position, then release lever.
lmo2008-006-015_a
1. Lever
230 Wake
Driver seat can swivel.
Pull the lever located on the RH side of
the seat.
Swivel seat to the desired position,
then push the lever down to lock the
seat in position.
The mechanism resistance can be in-
creased by turning the knob clockwise
or decreased by turning the knob coun-
terclockwise.
Lmo2009-006-001_a
1. Lever (swivel operation)
2. Knob (resistance adjustment)
Forward and Backward Adjustment
Both driver and passengerseats can be
adjusted forward or backward.
Pull and hold the lever located on the
RH side of the seat, set the seat to
the desired position, then release the
lever.
lmo2008-006-015_b
230 CHALLENGER SE PASSENGER SIDE
1. Lever
Lmo2009-006-001_b
230 WAKE AND 230 CHALLENGER SE HELM
SEAT
1. Lever
