6

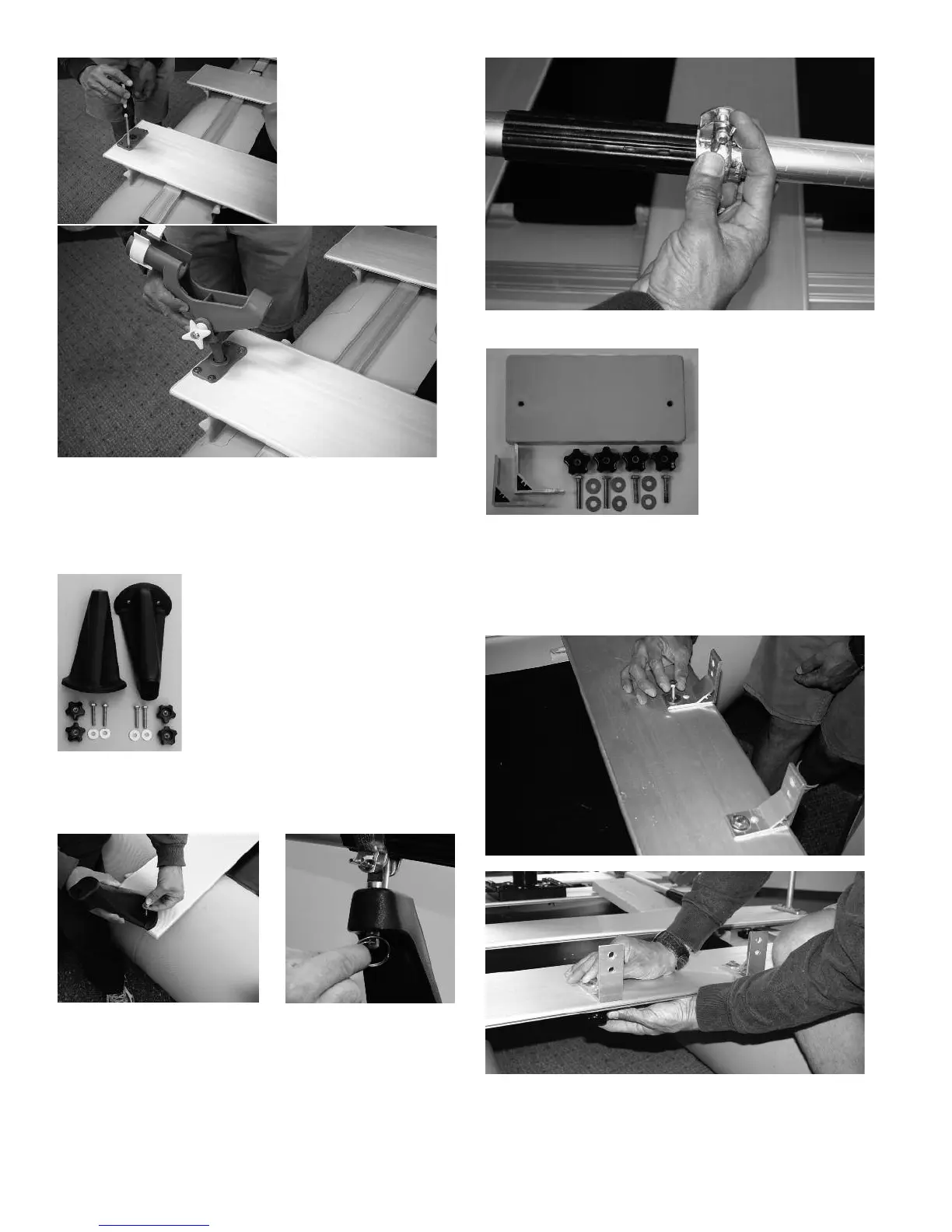

Now place the rod
holders in the adapters
as shown.
For disassembly, you only need to detach the rod holders
from the flush mount adapters.
Oar Locks & Oars
There are 2 oars and 2 oarlocks
included in all of our FoldCat
packages. Each oarlock includes a
raised oarlock base with 2 bolts
attached, an oarlock pin (not shown)
and 2 knurled nuts.
Bolt the raised oarlock bases at both
ends of the aluminum bench through
the 4 pre-drilled 3/8" holes (2 at each
end) using knurled nuts. And then place the oarlock pins
into the raised oarlock bases and lock them in place with
split rings as shown.
Now snap the two sectional oars together and inset each
oar into the oarlock pins and tighten the wingnuts to secure
the oars as shown below.
Motormount
Parts for the motormount
include wooden
motormount plate, 2
aluminum L-brackets,
four bolts, 4 washers and
4 knurled nuts.
This rearmost aluminum bench has 2 pre-drilled 3/8" holes
for placement of motormount. Bolt the aluminum L-
brackets through these 2 holes by inserting the 2 bolts
down through the front holes in the L-brackets and
securing with knurled nuts below as shown.
Secure the wooden motormount plate to the L-brackets by
running the other 2 bolts through the top holes in the L-
brackets and the 2 holes in the motormount plate itself.
Tighten all knurled nuts and bolts.
