7

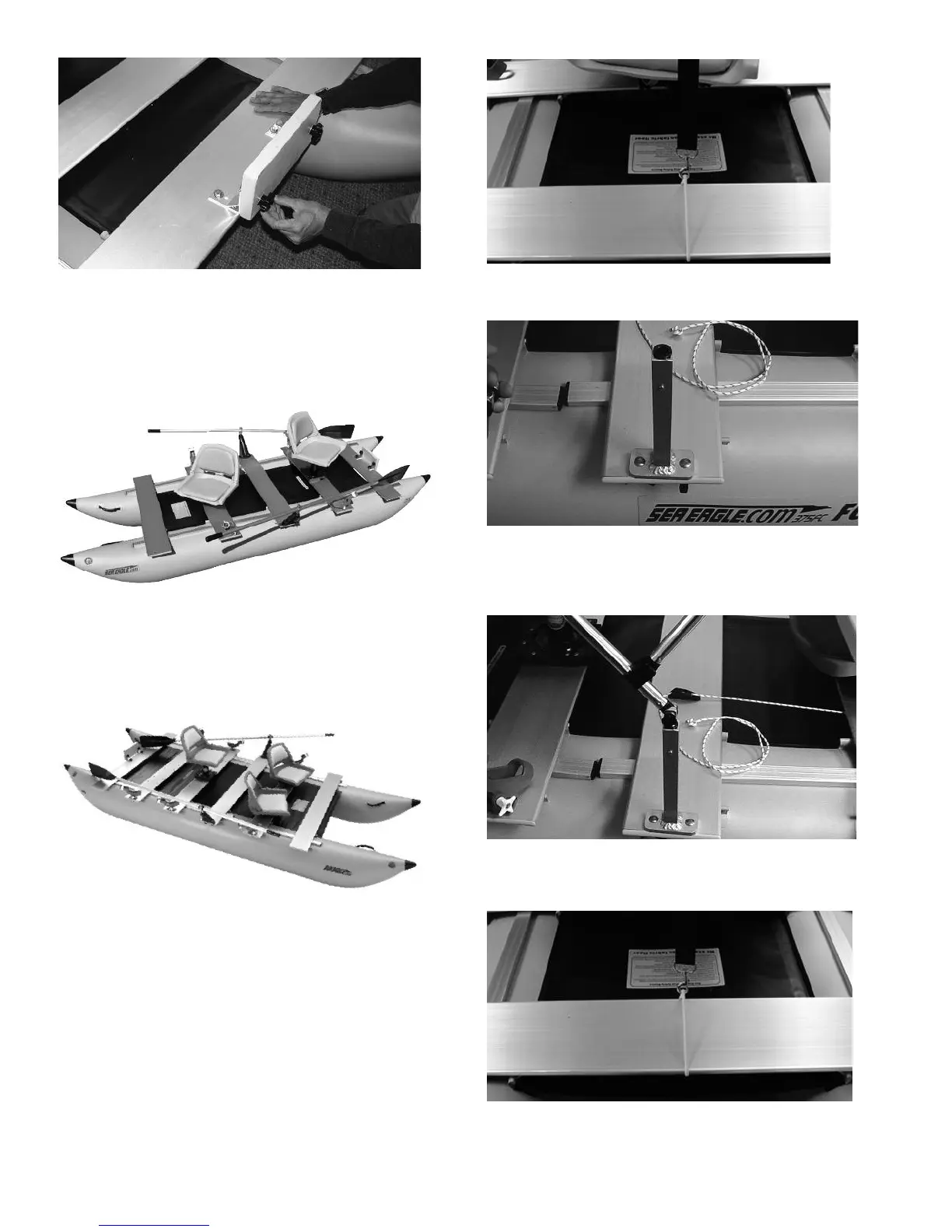

Your motormount assembly is now complete.
Fully assembled 375fc ProAngler Pkg. looks like this:
Fully assembled FoldCat 440fc Pro Angler’s Package
looks like this
Please note, after first time assembly of the FoldCat 375fc
or 440fc, for disassembly all you have to do is deflate the
air chambers, remove the underbars, swivel seats,
rodholders, oars and unscrew the oarlocks. For
transportation, simply roll-up the hull along with the
aluminum benches & motormount and place it in the
FoldCat carry bag.
Canopy for FoldCat 375fc or 440fc
Install 1 Sea Tie around the front aluminum bench in the
bow of the FoldCat 375fc or 440fc.
Install the two raised oarlock bases on the sides of the
second wide aluminum aluminum bench from the bow as
shown. Please note, this replaces plastic oarlocks.
Insert the canopy rods with preassembled pins into the
raised oar lock rod bases as shown.
The center black strap on the canopy should be attached
to the sea tie on the aluminum step rod in the bow.
