7,40
12,59
16,14
2,67
2,16
Compact 120V/230V and Super Compact 120V/230Vconsists of a hydraulic pump and a hydraulic jack,
both of which coupled in a supporting box treated with cataphoresis. The pump unit casing, which is
used as an oil tank, contains the electric motor, fluid pump, distributor and hydraulic oil. It is also provided
with an adjustable slowing-down device in the two stop phases of the leaf (versions with slow-down only).
The wheeling unit is composed by a double piston connected to a rack which engages with the pinion of the
leaf dragging shaft. Gates up to 6,5 feet long can be securely locked using the operators internal hydraulic
locking system, thus ensuring perfect keeping in closing and in opening. For gate in excess of stated value: A
hydraulic non locking operator should be used in conjunction with a separate electrical locking device to
ensure keeping in closing. On the operators with hydraulic slow down it is present only during the last
15° of rotation. The system comes with a release which allows the manual opening of the leaves in case of
power failure.
1 Braking regulation screw
(where provided)
2 Emergency release (authorized staff only)
3 By-pass regulation
4 Exit hole for electric cables
5 Filling oil Cap
6 Water draining hole
7 Oil level indicator
8 Draining screw
9 Greaser
10 Crank

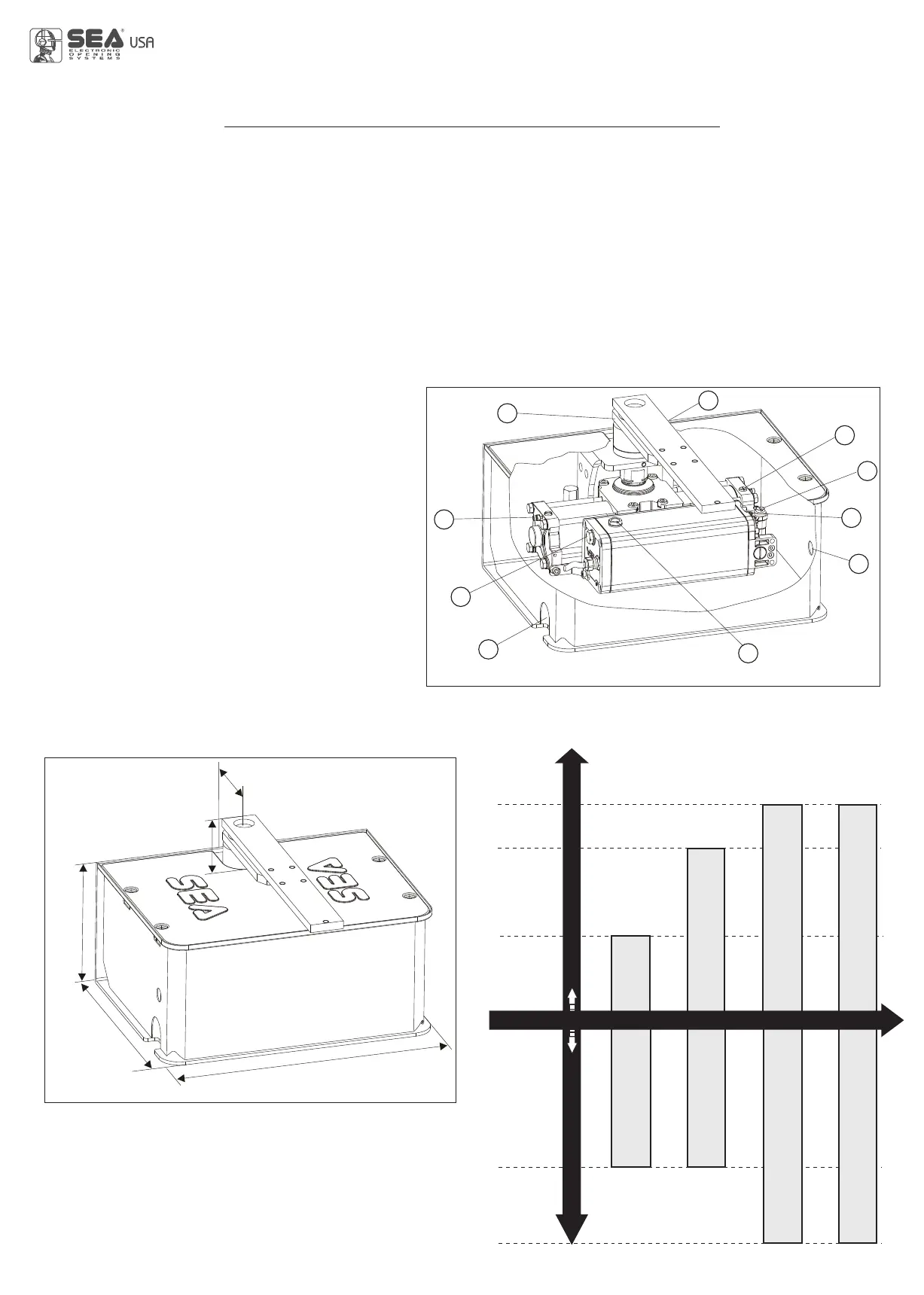

MAIN PARTS NOMENCLATURE
Fig.6
9
8
7
4
6
3
2
1
5
10
FEATURES AND SPECIFICATIONS
DIMENSIONS (inches)
Fig.7
GRAPHIC FOR USE OF COMPACT
OPERATORS
6,5 feet
13 feet
1600 pound
COMPACT
1600 AC
COMPACT
1600 AC
Max leaf weight
Max leaf width
COMPACT 1600 SB
(With electric lock)
COMPACT 1600 SB
(With electric lock)
16 feet
2600 pound
SUPER COMPACT
2600 AC
SUPER COMPACT
2600 AC
SUPER COMPACT 2600 SB
(With electric lock)
SUPER COMPACT 2600 SB
(With electric lock)
Underground hydraulic operators
International registered trademark n. 2.777.971
