SEA Field - Mechanical Installation: Leaf and Operator; Leaf Assembling and Mounting; Operator Mounting Procedure

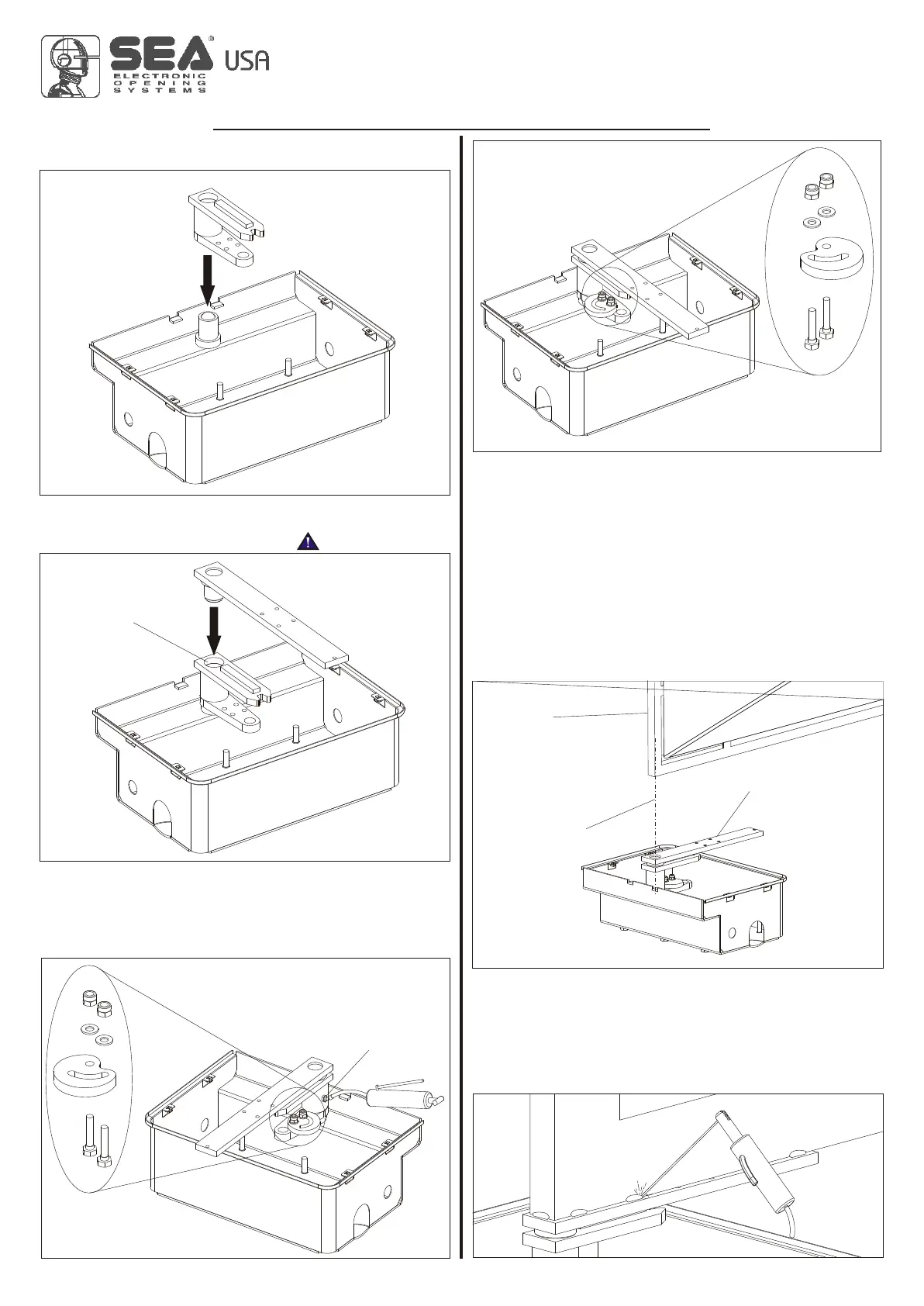

2.5. Insert the handle bar device into the perforated shaft (Fig.
9)
Fig. 9
Fig. 10
A
Fig. 12
3. LEAF ASSEMBLING
Before installing the gate make sure that the concrete has
hardened into the foundation hole.
3.1. Position the leaf of the gate on the leaf device making
reference to the rotation axe of the leaf hinge (Fig. 13);
Fig. 13
leaf rotation axe
leaf
3.2. Weld with care the leaf device to the leaf of the gate
realizing a tract fixation of ca. 1,2 - 1,6 inches along the
surface of the contact, avoiding the welding next to the
threaded holes, furthermore it is necessary to respect the
perpendicularity to the axe of rotation (Fig. 14)
Fig. 14
leaf device
RIGHT-HAND SIDE
MOUNTING
International registered trademark n. 2.777.971
MECHANICAL INSTALLATION
2.6. Grease plentifully the hole A and insert the leaf device
(Fig. 10). Grease the whole with the special greaser until
the grease comes out of both sides.
2.7. Insert the cam of the limit switch into the handle bar and
fix it with the special screws (left-hand side mounting Fig. 11,
right-hand side mounting Fig. 12)
N.B.: During the insertion of the units lubricate them with
the supplied grease (Fig.8, Fig.9, Fig.10).
LEFT-HAND SIDE
MOUNTING
Greaser
Fig. 11
FIELD
67410825 Rev.04 - 02/2016
7
