Seakeeper 26 GYRO - FIGURE 6 - EXPLODED VIEW OF SADDLE INSTALLATION FIXTURE

INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 26 GYRO
90265
2
12 of 22
Section 1: MECHANICAL INSTALLATION
Note: Do NOT use the installation fixture to establish gyro envelope dimensions. Refer to Drawing
No. 90272 for envelope dimensions. A 3-D model of the gyro is available on the Seakeeper website
(www.seakeeper.com
) to aid in designing the gyro foundation and the space around the gyro.

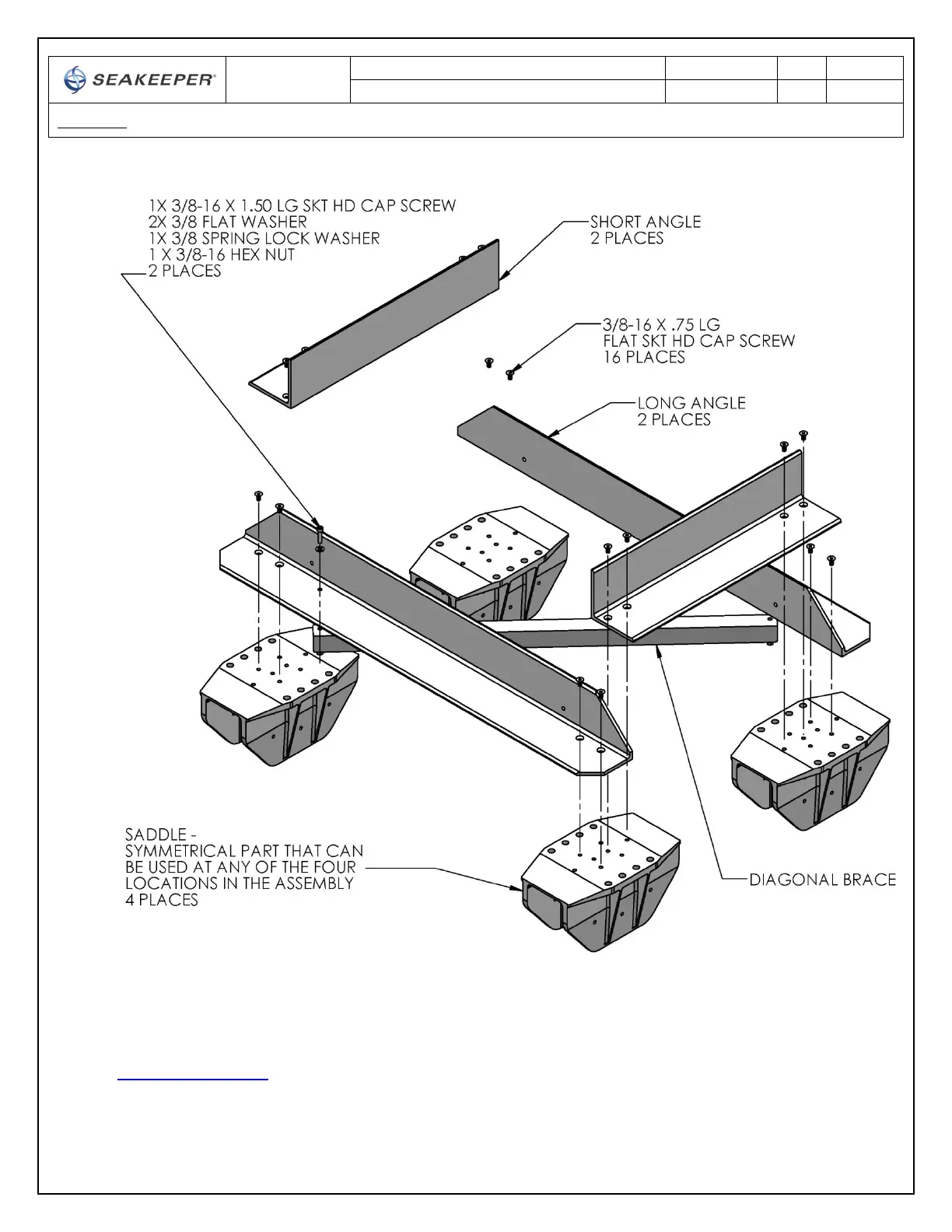

FIGURE 6 – EXPLODED VIEW OF SADDLE INSTALLATION FIXTURE
