INSTALLATION
MANUAL
Section 1: MECHANICAL INSTALLATION
1.6.4 Bonding Saddles to Hull
Note: If using Plexus MA590 adhesive, the gyro saddles should be installed when PC-120 is
confirmed dry.
1) Assemble Plexus cartridge into either the manual or pneumatic gun as shown. Remove cap on
cartridge and attach mixing tip. For pneumatic gun, start with low air pressure and increase until
desired flow rate is achieved.
2) Cut tip of mixing wand as shown in photo.
3) Prepare a second mixing wand as shown in photo below by attaching
the simple flexible nozzle to the end with provided hose clamp. Set
aside for now as this will be used to inject adhesive into the sides of
each saddle after the fixture / saddles are in position.
4) Install provided rubber plugs in the
top six holes of each saddle. The
plugs will limit the adhesive being
forced out of the injection holes in
step 6 below.

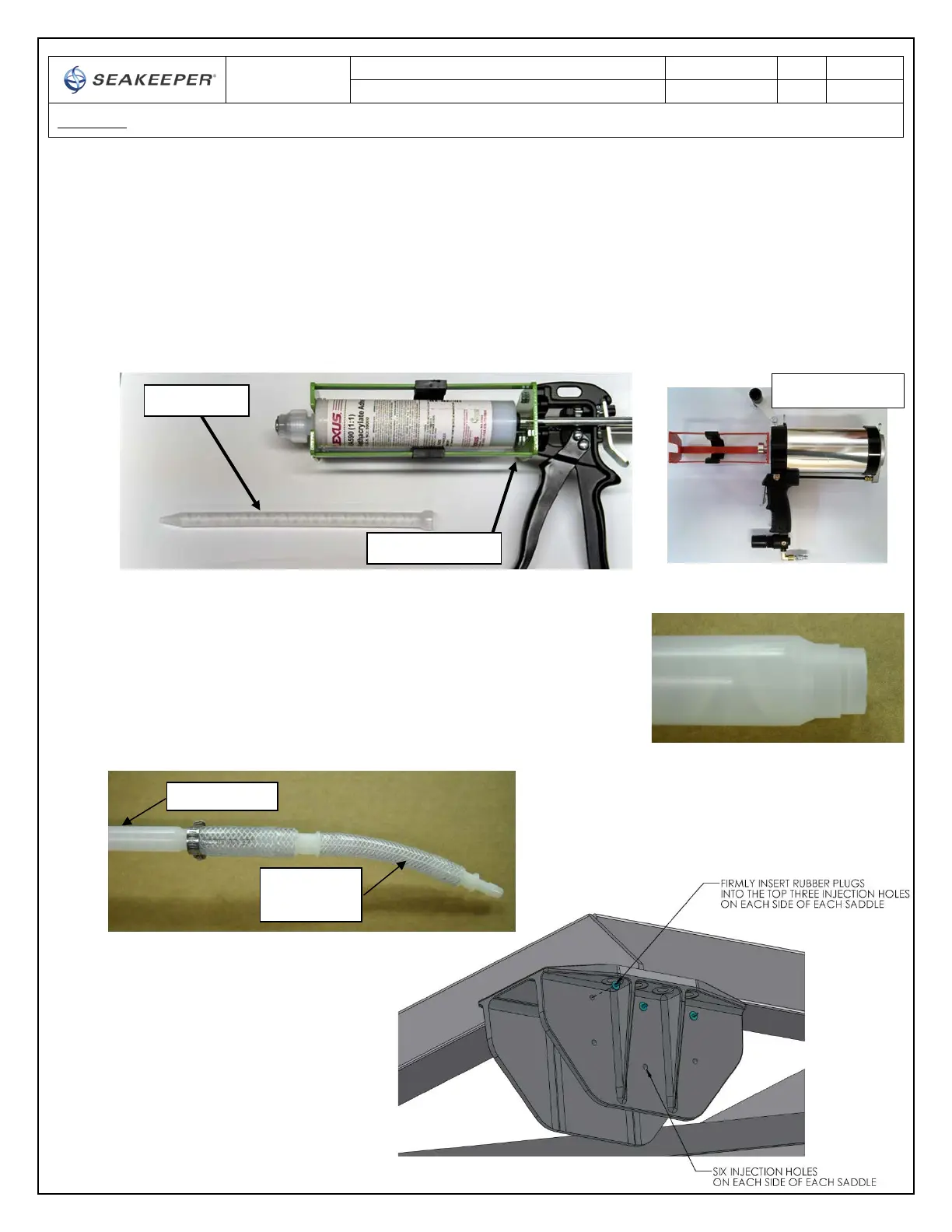

FIGURE 12 – ADHESIVE INSTALLATION SUPPLIES
