Section 1: MECHANICAL INSTALLATION

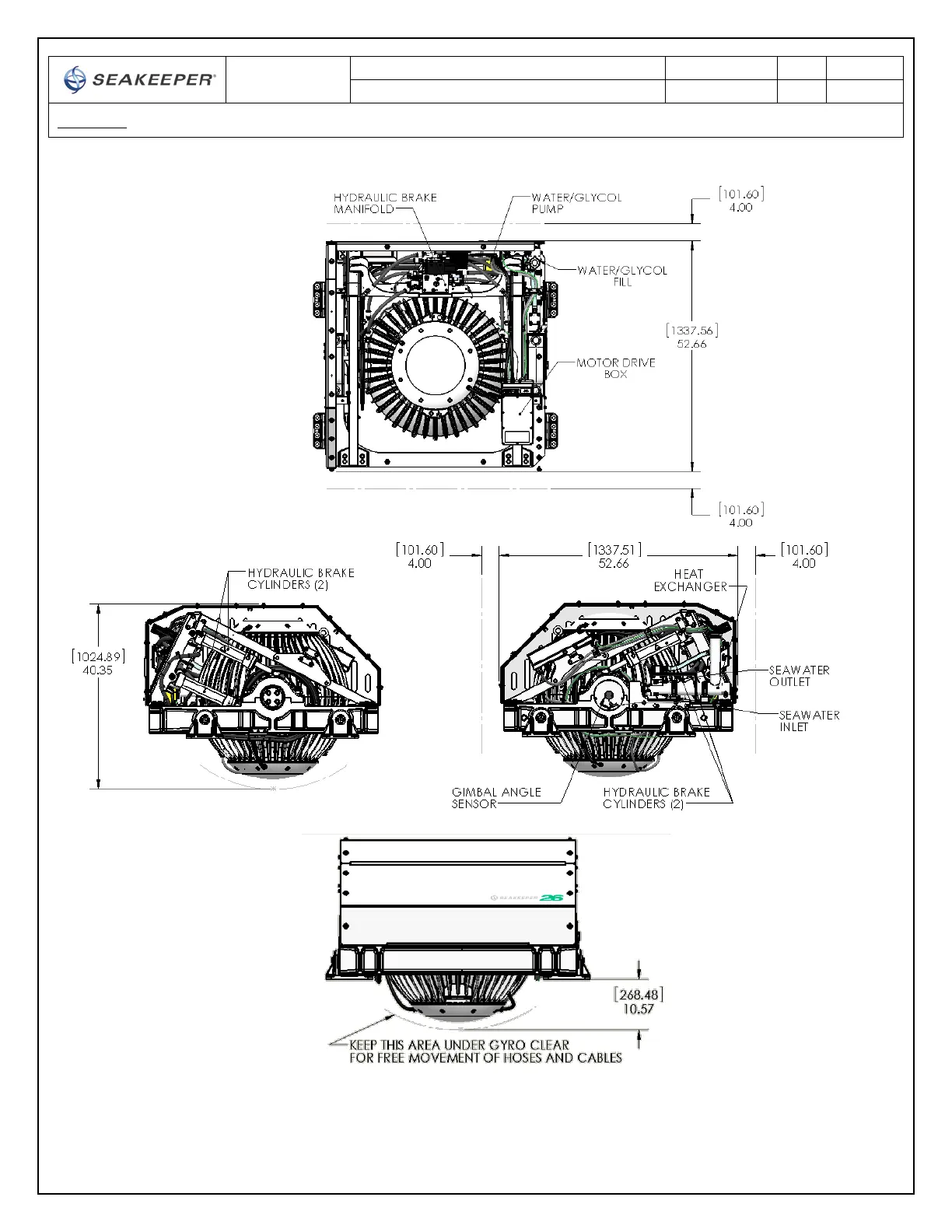

VIEWS SHOWING RECOMMENDED CLEARANCES AROUND GYRO FOR USE OF HAND TOOLS, EASE OF MAINTENANCE,
INSTALLATION AND PROPER OPERATION.
FIGURE 2 – INSTALLED GYRO CLEARANCE CONSIDERATIONS
