Section 1: SYSTEM OVERVIEW
1.7 Cooling
The cooling circuit is a closed loop that supplies a glycol/water (50% distilled water and 50% glycol) mix
to:
• The motor drive box to remove heat from the drive electronics
• The brake manifold to remove heat from the brake hydraulic circuit
• The gyro enclosure water jackets to remove heat from the flywheel bearings
The heated fluid then passes through a thermostat before bypassing or flowing through a heat
exchanger that has sea water on the cold side. The circuit also contains a coolant reservoir for coolant
expansion and to make filling easy. The reservoir contains a 7 psi (0.5 bar) pressure cap.

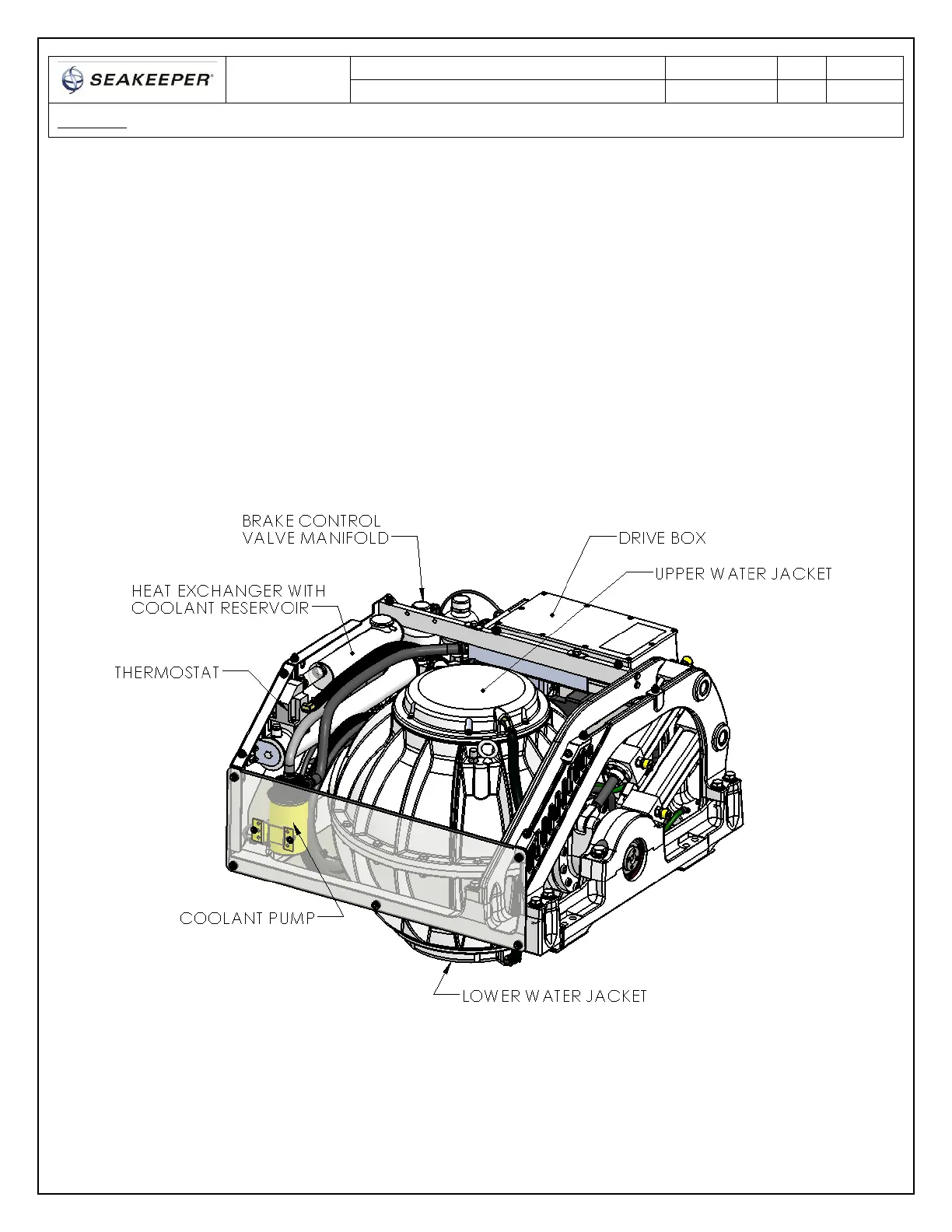

FIGURE 7 – COOLING SYSTEM COMPONENTS
