Sealey AK5063 - Operating Instructions; Prepare the Pipe; Clamp and Die Usage; Clamp Adjustment

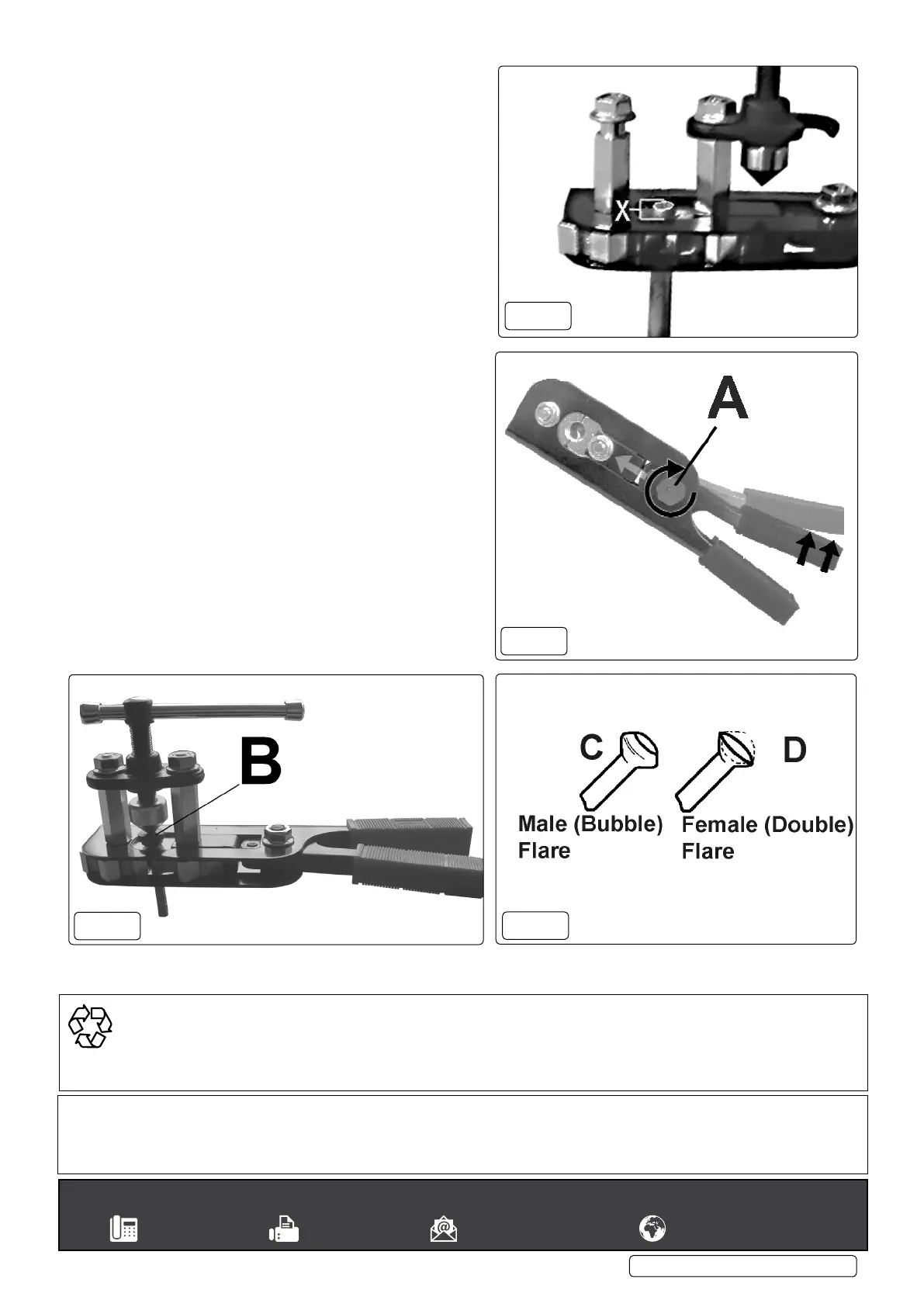

4.4. ToformaMale(Bubble)flare(fig.5.C).
Proceed as above (4.3), then place the appropriately sized
die in the pipe end (fig.4.B), position the press above the die
and screw down until stiff resistance is felt. Remove the
press and check that the flare is symmetrically formed.
4.5. To form a female (Double) flare (fig.5.D).
Proceed as above (4.4) to produce a male (Bubble) flare, then
swivel the flare press, without a die fitted, over the exposed pipe.
Screw the press down.
This will fold the top section of the ‘male’ flare inwards to form
a female ‘double’ flare (fig.5.D). Again, check that the flare is
symmetrically formed.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
AK5063 | Issue 7(LF) 27/02/18
Original Language Version
© Jack Sealey Limited
g.2
g.3
g.4
g.5
